SPEC
-
SPECS
- neck type
- TMB5Maple neck
- top/back/body
- Poplar body
- fretboard
- Jatoba fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 20

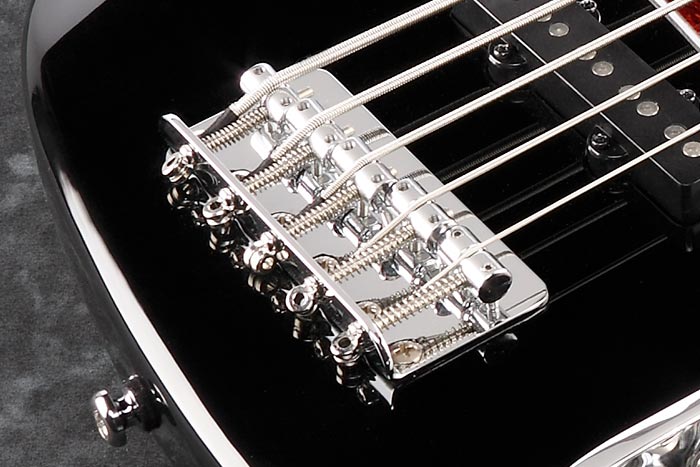

- bridge
- B15W bridge
- string space
- 18mm
- neck pickup
- Dynamix P neck pickupPassive
- bridge pickup
- Dynamix J bridge pickupPassive
- factory tuning
- 1G,2D,3A,4E,5B
- string gauge
- .045/.065/.085/.105/.130
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 762mm/30"
- a : Width
- 45mm at NUT
- b : Width
- 72mm at 20F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 24.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
With the bass held in the playing position, from the end of the body towards the direction of the neck, the controls are, tone, bridge pickup volume, and neck pickup volume.
-
OTHER FEATURES
- Recommended Bag
-
IBB540-BK
Features

Dynamix pickups
The Ibanez DXP neck pickup and DXJ bridge pickup provide the rich, vintage sound.

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
