RGR5111RB
- WK : Weathered Black
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Wenge neck
- top/back/body
- Ash body
- fretboard
- Bound Rosewood fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® BLACK TUSQ XL® nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-

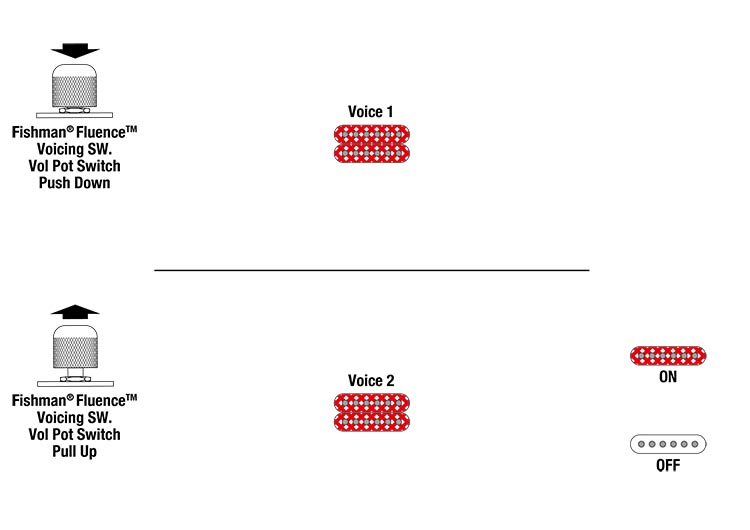

SWITCHING SYSTEM
DESCRIPTION
This guitar has two different wiring configurations, one with the volume knob in the up position and another with it in the down position. When the volume knob is down, the full bridge humbucker is activated and in Voice 1. When the volume knob is pulled up, the full bridge humbucker is activated and in Voice 2.
-

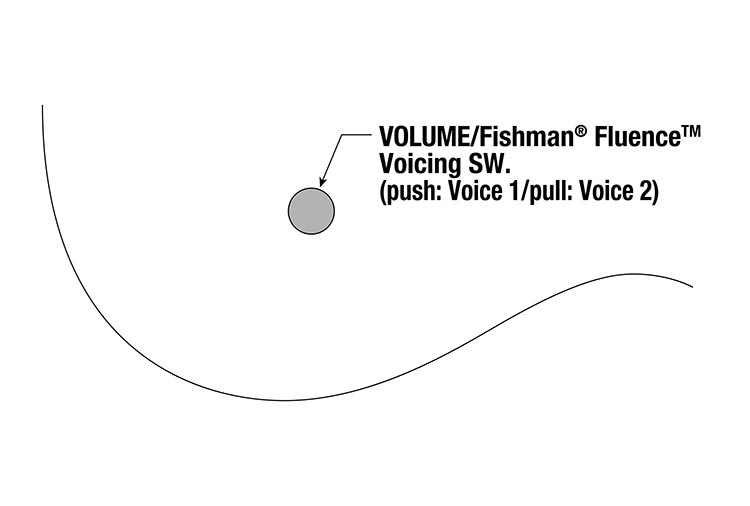

CONTROLS
DESCRIPTION
There is a volume knob which is also serves as the Fishman Fluence Voicing switch. The Fishman Fluence Voicing switch changes the tone of the pickups via an electronic circuit. When the volume knob is pushed in, Voice 1 is active, and when the volume knob is pulled out, Voice 2 is active.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Gotoh® MG-T locking machine heads
- Fishman® Fluence™ Voicing switch
- Luminlay side dots
Features
Super Wizard HP 5pc Maple/Wenge neck
The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.
Jumbo Stainless Steel frets with Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.

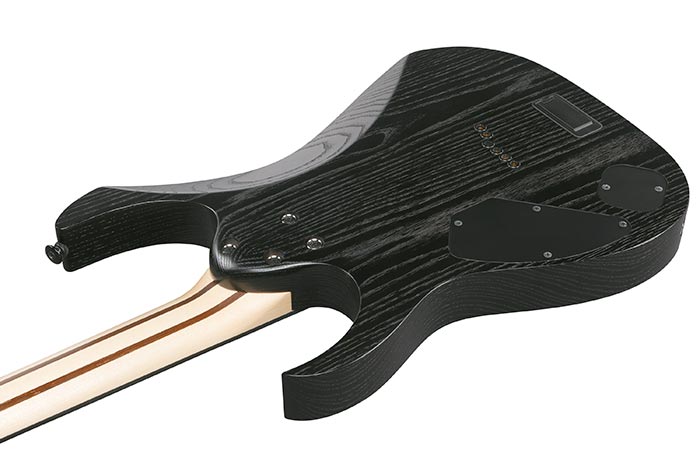

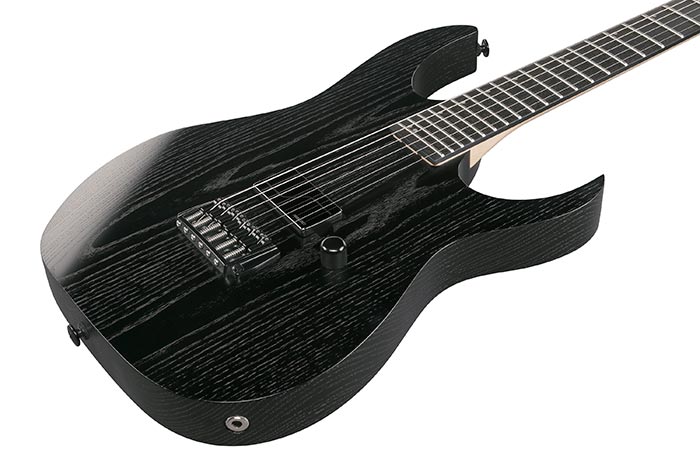

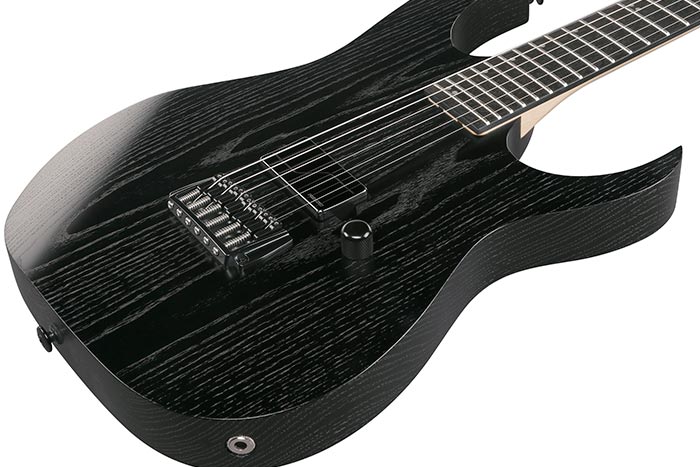

Ash body
The Ash body delivers a pleasant brightness and rich sustain.

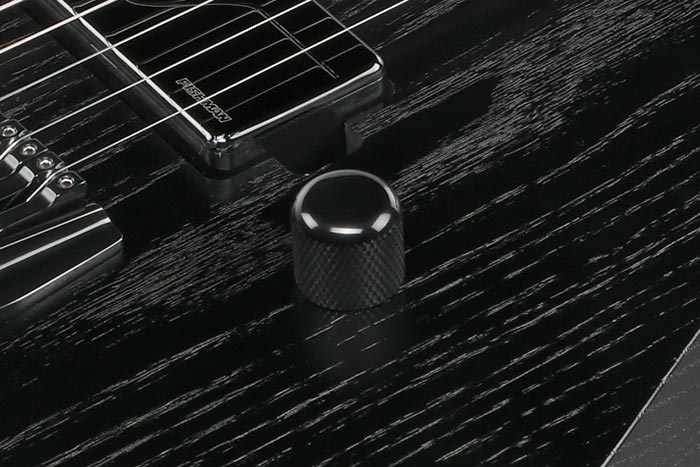

Fishman® Fluence™ Voicing switch
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.

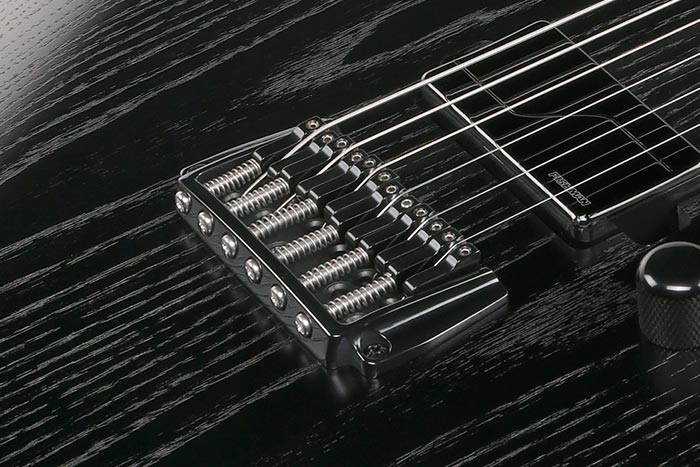

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.

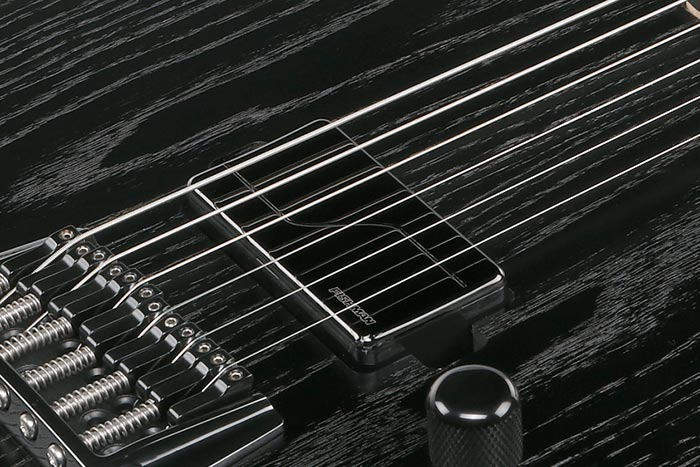

Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
