RG8EX
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard II-85pc Maple/Walnut neck
- top/back/body
- Meranti body
- fretboard
- Jatoba fretboardWhite dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- F108 bridge
- string space
- 10.5mm
- neck pickup
- IBZ-8 (H) neck pickupPassive/Ceramic
- bridge pickup
- IBZ-8 (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D#,2A#,3F#,4C#,5G#,6D#,7A#,8F
- strings
- D'Addario® EXL120-8
- string gauge
- .009/.011/.016/.024/.032/.042/.054/.065
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 686mm/27"
- a : Width
- 55mm at NUT
- b : Width
- 80mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the three-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

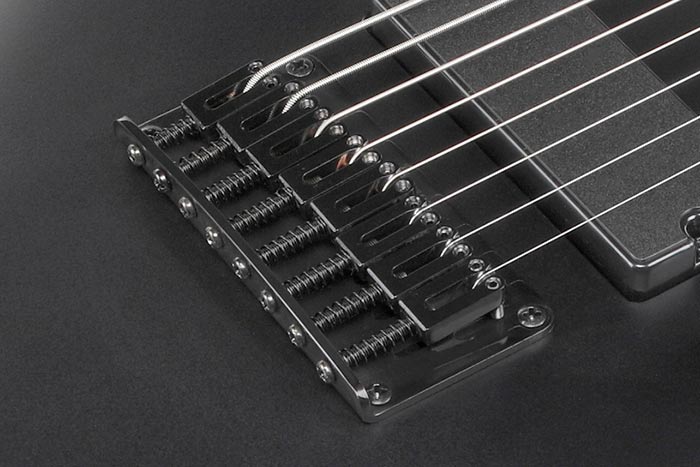

F108 bridge
The F108 bridge enriches sustain. String height adjustment can be done easily and independently.

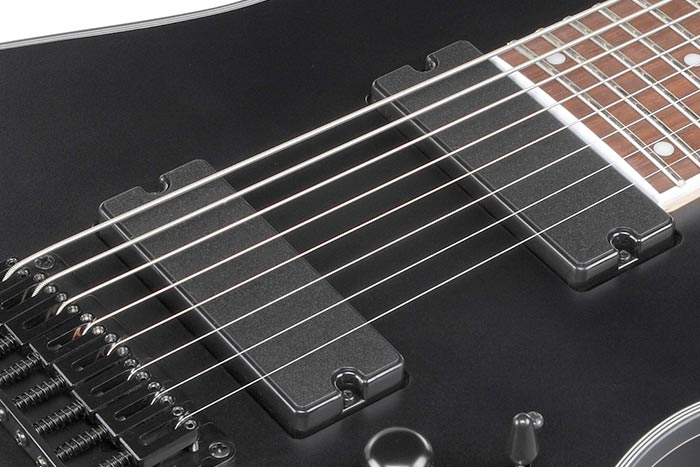

IBZ-8 pickups
IBZ-8 pickups are designed for extended range guitars and deliver a tight low end that handle high-gain settings without losing tonal clarity.

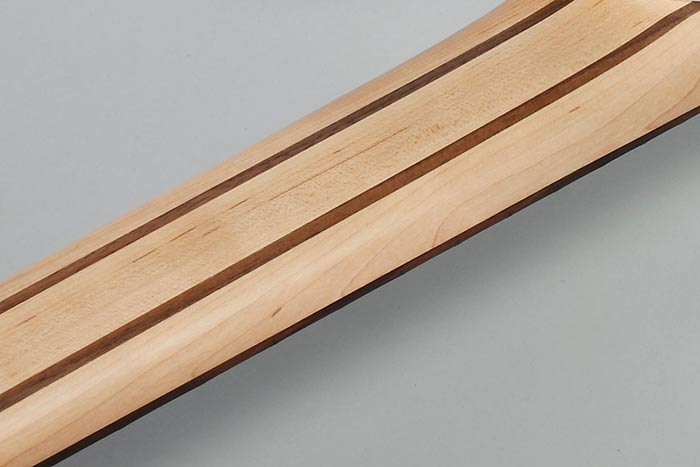

Wizard II 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
