RG8620AH
- BQZ : Black Quartz
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- RG j.custom Super Wizard AS5pc Maple/Wenge neck
- top/back/body
- Ash (4mm) topAfrican Mahogany body
- fretboard
- Rosewood fretboardTree of Life inlay
- fret
- Jumbo fretsj.custom fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® PAF Pro® (H) neck pickupPassive/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Satin Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cut out is a three-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in the neck position, the coil tap is on. When the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Gotoh® machine heads
- Coil-tap switch
- Luminlay side dots
- Gotoh® Strap lock pins
Features

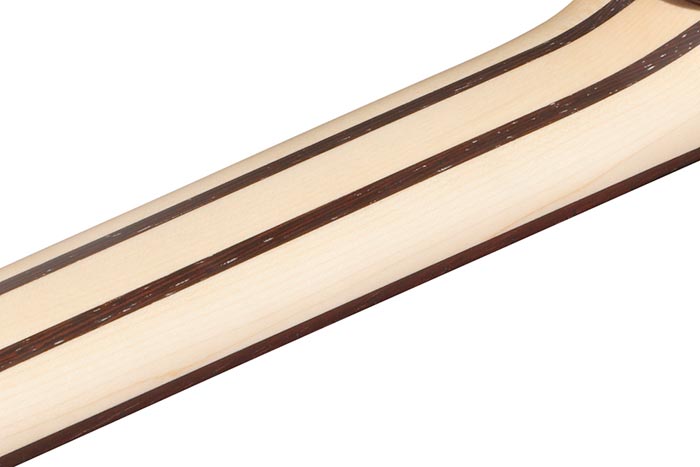

Super Wizard AS 5pc Maple/Wenge neck
This Super Wizard AS neck has a more rounded shape towards the bass side, while still retaining the overall thickness of the Super Wizard profile– 17mm at nut and 19mm at 12th fret. This asymmetric shape provides a more comfortable grip and natural feel that makes techniques like sweeping and string skipping much easier.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Jumbo frets with j.custom fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The j.custom fret edge treatment provides the ultimate smooth touch around every single fret.

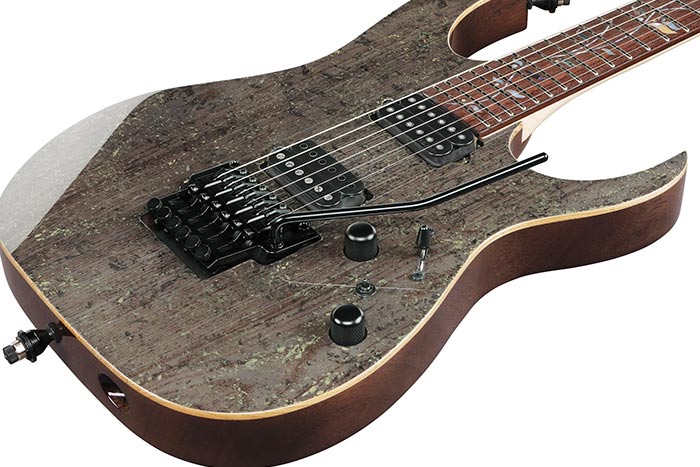

Ash (4mm) top / African Mahogany body
The Ash top (4mm) features a beautiful grain and the African Mahogany body delivers a rich mid-low end.

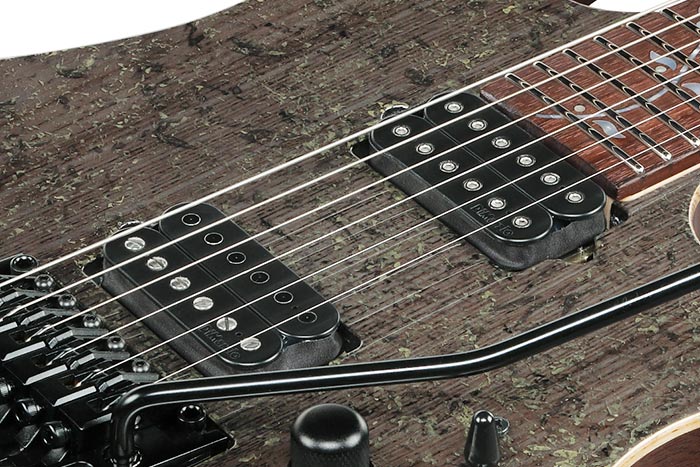

DiMarzio® PAF Pro® / DiMarzio® The Tone Zone® pickups
The DiMarzio® PAF Pro® pickups produce an open and clean low end with a carefully tweaked treble side that helps cut through the mix and high-output DiMarzio® The Tone Zone® pickup provides a huge sound with a broad dynamic range.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Gotoh® Strap lock pins
Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Special j.custom Neck
RG j.custom Super Wizard 5pc Maple/Wenge neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.
All Access Neck Joint
j.custom special neck joint offers superior playability at the high frets.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
