RG550
SPEC
-
SPECS
- neck type
- Super Wizard5pc Maple/Walnut neck
- top/back/body
- Basswood body
- fretboard
- Maple fretboardBlack dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- V7 (H) neck pickupPassive/Ceramic
- middle pickup
- S1 (S) middle pickupPassive/Alnico
- bridge pickup
- V8 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
-
CONTROLS
DESCRIPTION

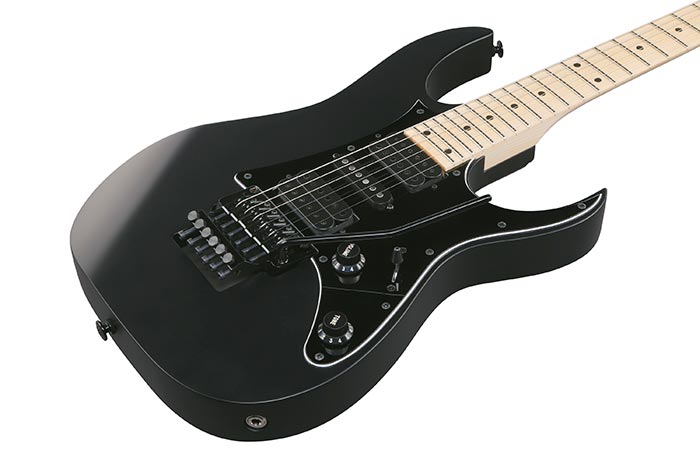

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.
V7 / S1 / V8 pickups
The RG can dial in any tone, from crystal clear to searing and nasty, thanks to its V7 neck pickup, S1 middle pickup and V8 bridge pickup combination.
Maple fretboard
The Maple fretboard provide crisp, bright highs and strong upper mids.
Edge tremolo bridge
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
