RG5440C
- PW : Pearl White
- DFM : Deep Forest Green Metallic
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Wenge neck
- top/back/body
- African Mahogany body
- fretboard
- Bound Macassar Ebony fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- EMG SA (S) neck pickupActive/Alnico
- middle pickup
- EMG SA (S) middle pickupActive/Alnico
- bridge pickup
- EMG 81 (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck pickup and the center pickup are selected. When the switch is in center position, center pickup is selected. When the switch is in between the center and bridge position, center pickup and both pickups are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

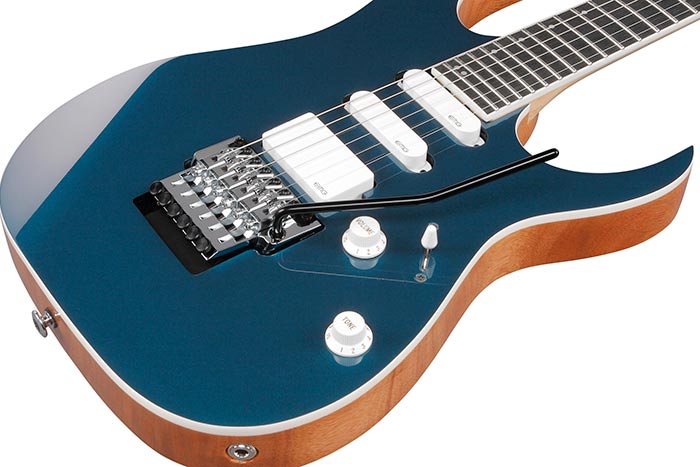

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Jumbo Stainless Steel frets with Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.
African Mahogany body
The African Mahogany body delivers a rich mid-low end.

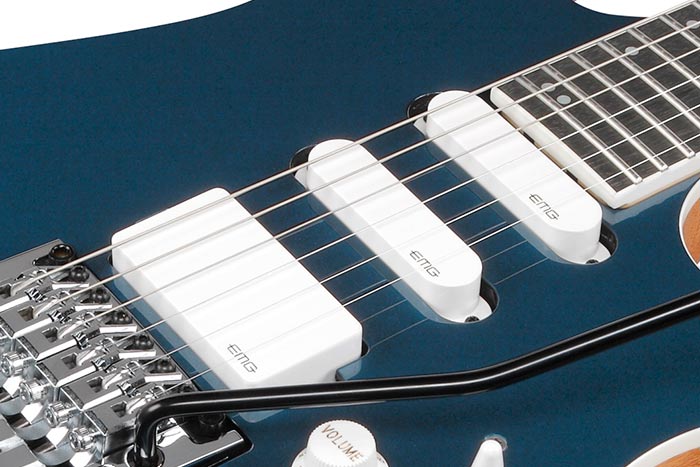

EMG® SA / 81 pickups
The EMG SA neck pickup uses a single coil alnico magnet and delivers classic and enriched dynamics while keeping the noise at a low level. The EMG 81 bridge pickup outputs detailed intensity, incredible amounts of high end cut and fluid sustain.
Super Wizard HP 5pc Maple/Wenge neck
The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.
Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
