MRC10
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing with a reinforcing wood plate for body tapping
- top
- Solid Sitka Spruce top
- back & sides
- Pau Ferro back & Pau Ferro sides
- neck
- Comfort Grip with Rounded Fretboard EdgeNyatoh neck
- fretboard
- Macassar Ebony fretboard
- bridge
- Macassar Ebony bridge
- body binding
- Pau Ferro body binding
- top board purfling
- Wooden Multi purfling
- inlay
- Specially designed Mother Of Pearl inlay
- soundhole rosette
- Specially designed Wooden and Mother Of Pearl rosette
- tuning machine
- Gotoh® Chrome SGS510Z tuners (18:1 gear ratio)
- number of frets
- 20
- saddle material
- Compensated Bone saddle
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Fishman® Rare Earth Mic Blend Active Soundhole pickup
- preamp
- Fishman® Rare Earth Mic Blend Active Soundhole Pickup preamp
- output jack
- 1/4" Endpin Jack
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 44mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
With the guitar held in the playing position, there is a knob affixed to the pickup assembly, which controls the output balance between the microphone and magnetic pickup. When turned fully counterclockwise, the output is coming the pickup only, in the middle position, the output is an equal blend of the pickup and microphone. When turned clockwise, the output is coming from the microphone only. Slightly below the pickup is a switch that controls the low frequencies of the microphone. When the switch is the up position, the low frequency range of the microphone is cut. When the switch is the down position, the low frequency range of the microphone output is neutral.
-
OTHER FEATURES
- Recommended Case
-
FS40DA
- Gig bag included
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Pau Ferro back and sides
Pau Ferro back and sides offer well-balanced tone with a full-bodied mid and high range.
Fishman® Rare Earth Mic Blend Active Soundhole pickup
It consists of a magnetic humbucking pickup and flexible cardioid microphone which offer warm, transparent sounds. It can capture both percussive and string sounds of each dynamic range, from bass to treble.
Fishman® Rare Earth Mic Blend Active Soundhole pickup preamp
Its easily accessible Mic/Pickup Blend control-wheel offers just the right blend at your fingertips.
It has a bass extension/roll-off switch which controls the low frequency extension of the microphone depending on the player's preference.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Macassar Ebony bridge
The Macassar Ebony bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Advantage™ bridge pins w/ Red dot
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

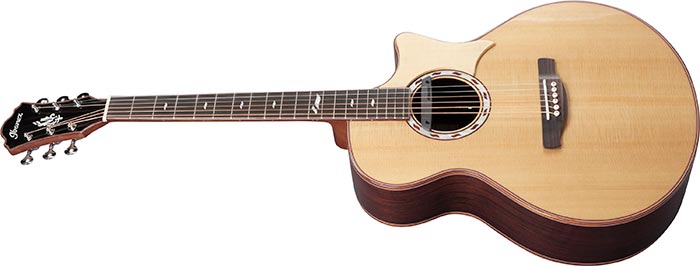

AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Scratch Pad
You can create scratching and tapping sounds with this oil-finished, solid Sitka Spruce pad, adding yet another flavor to your percussive playing.
