GRGR221FA
- TDK : Transparent Indigo Black
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- GRGRoasted Maple neck
- top/back/body
- Flamed Maple Art Grain (Basswood) topOkoume body
- fretboard
- Bound Purpleheart fretboardReversed Black Sharktooth inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- F106 bridge
- string space
- 10.5mm
- neck pickup
- IBZ-6 (H) neck pickupPassive/Ceramic
- bridge pickup
- IBZ-6 (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- -
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the neck pickup and the center pickup are selected. When the switch is in center position, center pickup is selected. When the switch is in between the center and bridge position, center pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

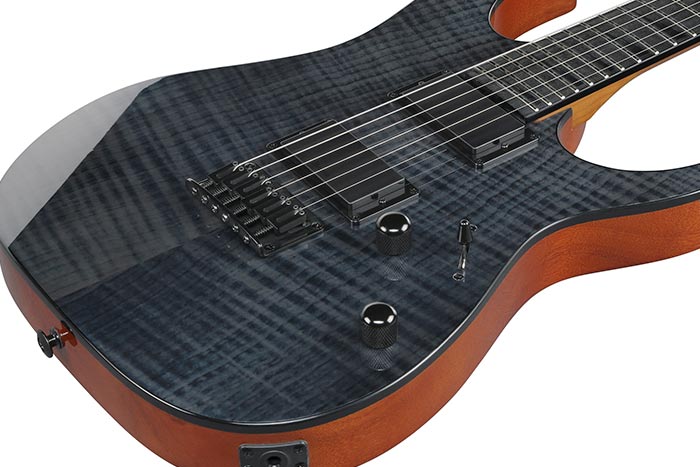

Flamed Maple Art Grain (Basswood) top / Okoume body
The Flamed Maple Art Grain (Basswood) top offers a gorgeous aesthetic and the Okoume body provides a bright and solid sound.
IBZ-6 pickups
IBZ-6 pickups improve tonal clarity.
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
