GRG320FA-TBS
GRG320FA-TKS

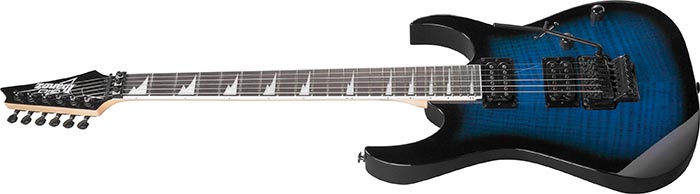

  • TBS : Transparent Blue Sunburst

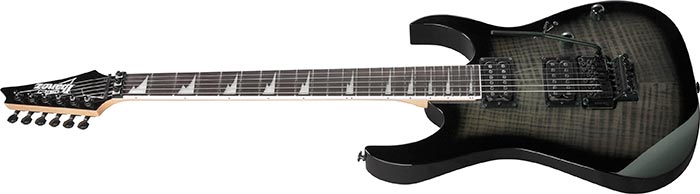

  • TKS : Transparent Black Sunburst
  • COLOR VARIATION:
RG

SPEC

  • SPECS

    • neck type
    • GRGMaple neck
    • top/back/body
    • Flamed Maple Art Grain (Basswood) topPoplar body
    • fretboard
    • Bound Purpleheart fretboardWhite Sharktooth inlay
    • fret
    • Medium frets
    • number of frets
    • 24
    • bridge
    • Double Locking bridge
    • string space
    • 10.5mm
    • neck pickup
    • Infinity R (H) neck pickupPassive/Ceramic
    • bridge pickup
    • Infinity R (H) bridge pickupPassive/Ceramic
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • nut
    • Locking nut
    • hardware color
    • Black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 19.5mm at 1F
      • d : Thickness
      • 21.5mm at 12F
      • Radius :
      • 400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    GRG320FA's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

  • CONTROLS

    GRG320FA's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

Features

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

Purpleheart fretboardPurpleheart fretboard

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

Flamed Maple Art Grain (Basswood) top / Poplar body

Flamed Maple Art Grain (Basswood) top / Poplar body

The Flamed Maple Art Grain (Basswood) top displaying a gorgeous wood grain and the Poplar body deliver a well-balanced tone with incredible thickness.

Double Locking tremolo

Double Locking tremolo

The Double Locking system holds your guitar in tune even under aggressive on-stage abuse.

Mono-unit output jack

Mono-unit output jack

The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

Infinity R H-H pickups

Infinity R H-H pickups

Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
