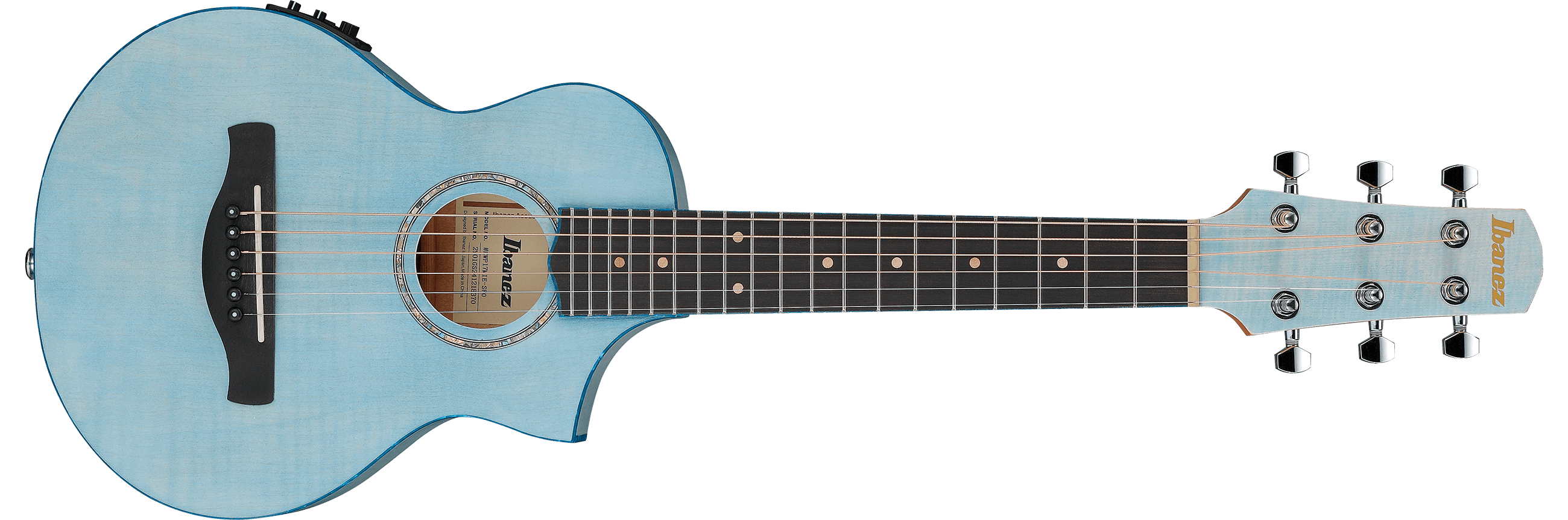

EWP17M1E
- SFO : Soda Float Open Pore
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Cutaway Tenor Style EW body
- top
- Flamed Maple top

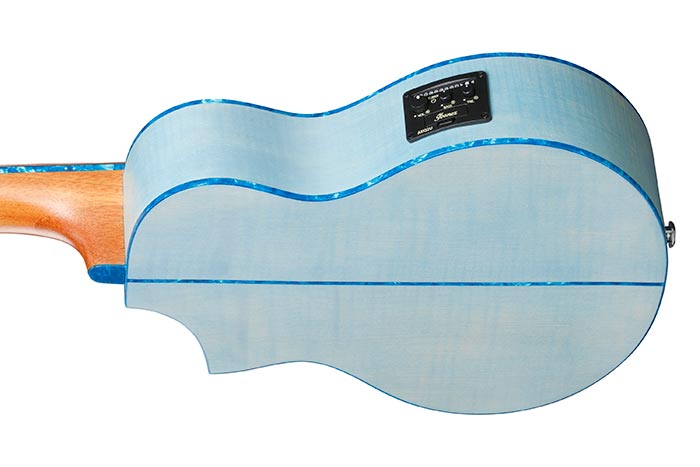

- back & sides
- Flamed Maple back & Flamed Maple sides
- neck
- EWPOkoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- Maple dot inlay
- soundhole rosette
- Abalone

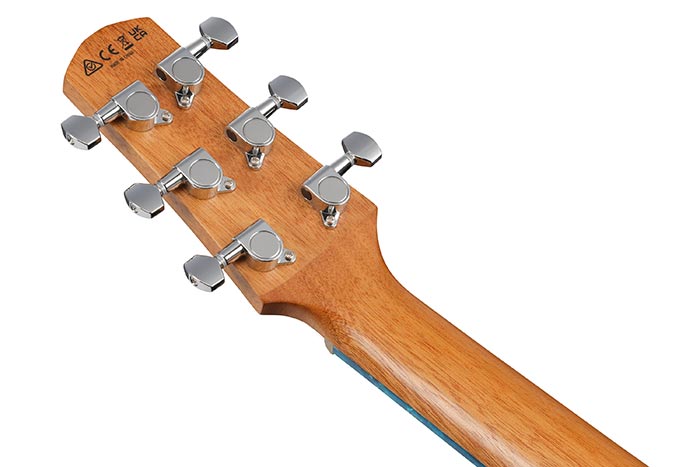

- tuning machine
- Chrome Die-cast tuners
- number of frets
- 19
- bridge pins
- Ibanez Advantage™
- string gauge
- .010/.014/.023/.030/.039/.047
- string space
- 9.6mm
- factory tuning
- 1A,2E,3C,4G,5D,6A
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ2U preamp w/Onboard tuner
- output jack
- 1/4" Endpin Jack
- battery
- CR2032 x2
-
NECK DIMENSIONS
-
- Scale :
- 432mm/17"
- a : Width
- 42mm at NUT
- b : Width
- 50mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 12 1/8"
- b : Width
- 9 3/8"
- c : Max Depth
- 2 7/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-

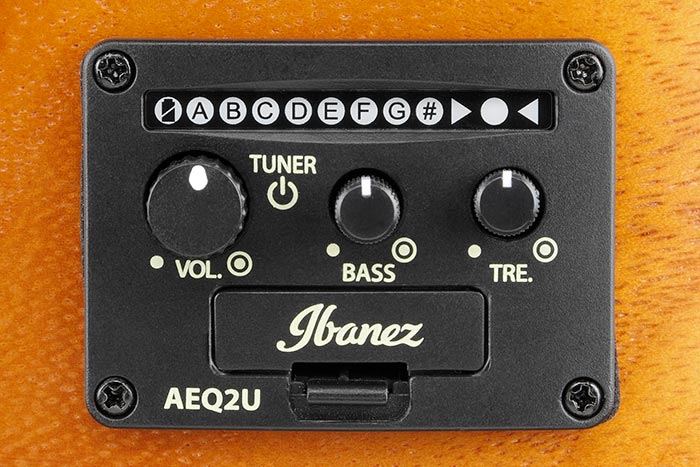

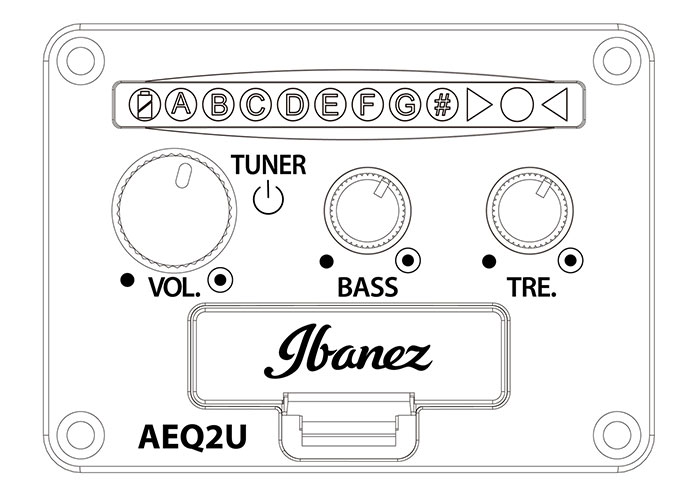

PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The knob on the far left is the volume knob. To the right of the volume knob is a small on/off switch for the built-in tuner. Next to the tuner switch are the bass and treble knobs.
-
OTHER FEATURES
- Recommended Bag
-
IUBT541-BK
Features

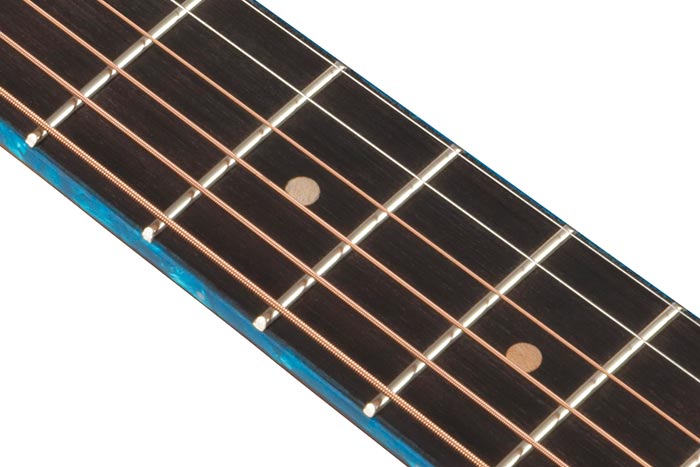

Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

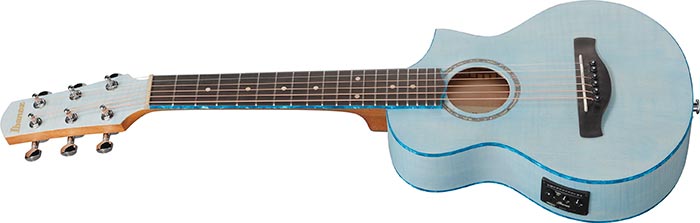

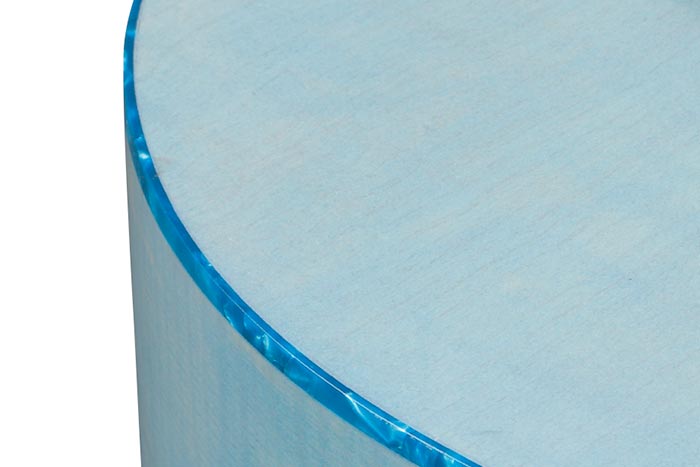

Flamed Maple top
The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.

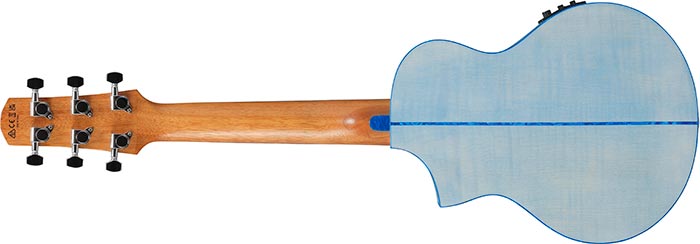

Flamed Maple back and sides
Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.

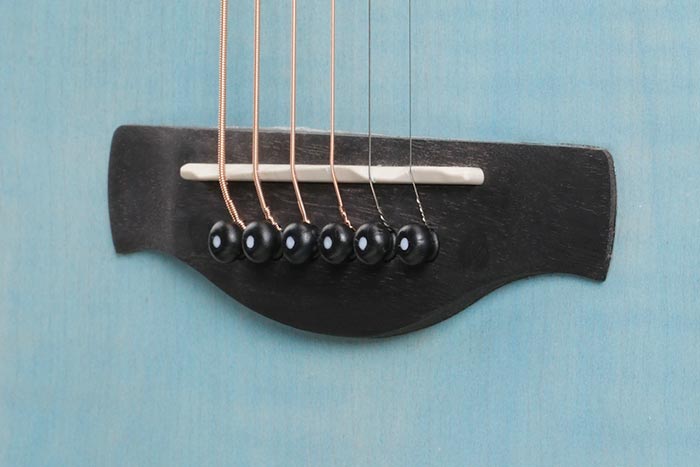

Ibanez Undersaddle pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the guitar.
Purpleheart bridge
The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Okoume neck
The Okoume neck provides greater playing comfort.
Ibanez AEQ-2U preamp w/Onboard tuner
The AEQ-2U preamp provides the extra punch of on-board EQ and a convenient, easy-to-read digital tuner.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
