AS7312
- TCD : Transparent Cherry Red
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- AS ArtcoreNyatohset-in neck
- top/back/side
- Linden top Linden backLinden sides
- fretboard
- Bound Rosewood fretboardAcrylic block inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- ART-12 bridge
- string space
- 10.4mm
- tailpiece
- ART-12 tailpiece
- neck pickup
- Classic Elite (H) neck pickupPassive/Ceramic
- bridge pickup
- Classic Elite (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL150
- string gauge
- .010/.010/.013/.013/.017/.008/.026/.012/.036/.018/.046/.026
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 628mm
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 24mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/4"
- b : Width
- 15 3/4"
- c : Max Depth
- 2 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
-
OTHER FEATURES
- Recommended Bag
-
IHB541-BK
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Classic Elite pickups
The Classic Elite pickups offer rich, nuanced tone with fat low-end.

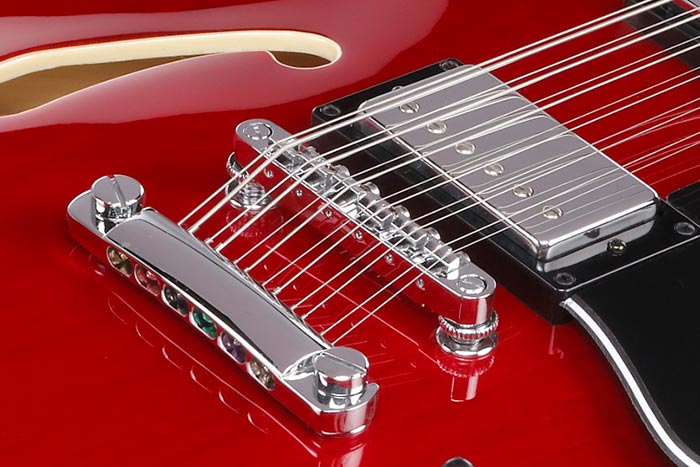

ART-12 bridge
The ART-12 bridge provides improved sustain and tuning stability.

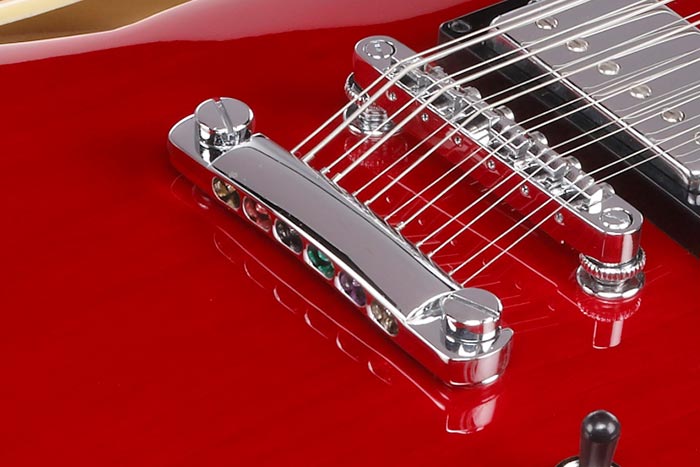

ART-12 tailpiece
ART-12 tailpiece provides excellent tuning stability.
