PS60-BK
PS60-SSL
  • BK : Black
  • SSL : Silver Sparkle
  • COLOR VARIATION:
PS

SPEC

  • SPECS

    • neck type
      PSMaple neck
    • top/back/body
      Poplar body
    • fretboard

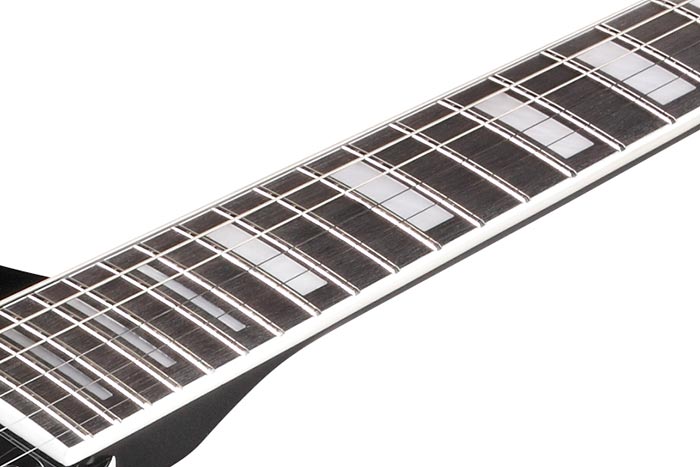

      Bound Purpleheart fretboardWhite block inlay
    • fret
      Medium frets
    • number of frets
      22
    • bridge
      Gibraltar Performer bridge
    • string space
      10.5mm
    • tailpiece
      Quik Change III tailpiece
    • neck pickup

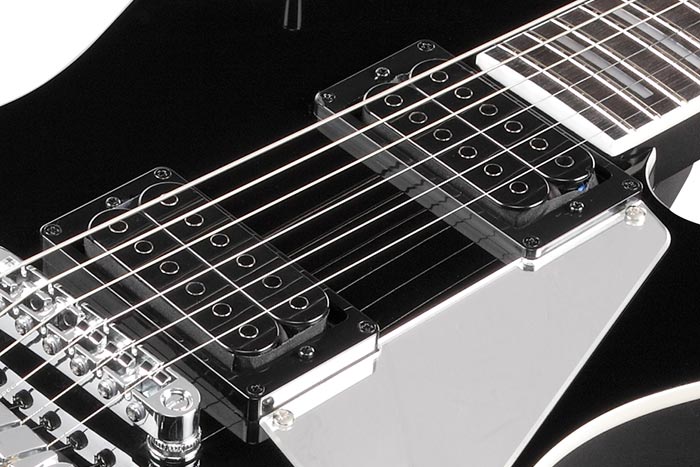

      Infinity R (H) neck pickupPassive/Ceramic
    • bridge pickup
      Infinity R (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • string gauge
      .010/.013/.017/.026/.036/.046
    • hardware color
      Chrome
  • NECK DIMENSIONS

      • Scale :
        628mm/24.75"
      • a : Width
        43mm at NUT
      • b : Width
        56mm at 22F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        22mm at 12F
      • Radius :
        305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    PS60's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

  • CONTROLS

    PS60's control diagram

    DESCRIPTION

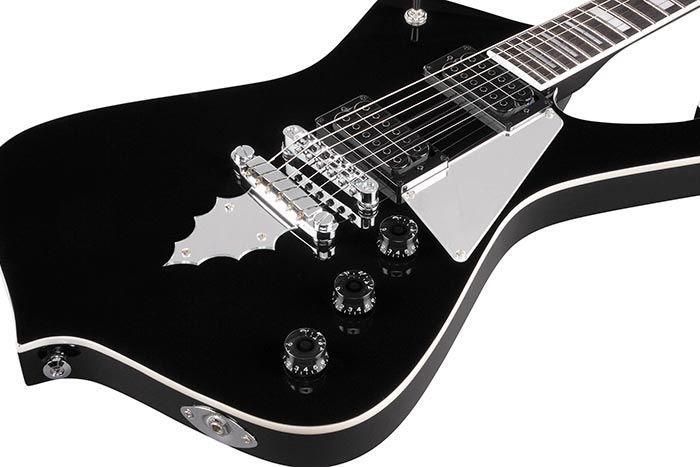

    With the guitar held in the playing position, there are three knobs located along the lower edge of the body. From the end of the body towards the neck they are; tone, bridge volume, and neck volume knob. A three-way pickup selector switch is located towards the upper half of the guitar near the neck pickup.

  • OTHER FEATURES

Features

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

Gibraltar Performer bridge

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability.
The low positioned saddles promise comfortable playability.
