PS3CM
SPEC
-
SPECS
-
neck typePS3pc MapleSet-in neck (smooth heel)
-
top/back/bodyMaple topAfrican Mahogany body
-
fretboardBound Ebony fretboardAcrylic & Abalone block inlay
-
fretMedium fretsPrestige fret edge treatment
-
number of frets22
-
bridgeGotoh® GE103B-T bridge
-
string space10.4mm
-
tailpieceGotoh® GE101Z-T tailpiece
-
neck pickupSeymour Duncan® '59 model™ (H) neck pickupPassive/Alnico
-
bridge pickupSeymour Duncan® Custom 5™ (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL120
-
string gauge.009/.011/.016/.024/.032/.042
-
nutHalf-Bone/Half-Brass nut
-
hardware colorChrome
-
-
NECK DIMENSIONS
-
-
Scale :628mm/24.7"
-
a : Width43mm at NUT
-
b : Width57mm at 22F
-
c : Thickness20.5mm at 1F
-
d : Thickness23.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are three knobs located along the lower edge of the body. From the end of the body towards the neck they are; tone, bridge volume, and neck volume knob. A three-way pickup selector switch is located towards the upper half of the guitar near the neck pickup.
-
OTHER FEATURES
-
Hardshell case included
-
Gotoh® machine heads
-
Features

3pc Maple neck
A strong 3pc Maple neck provides an enriched resonance.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Medium frets with Prestige fret edge treatment
Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

Maple top / African Mahogany body
The Maple top sonically enriches the response while picking. The African Mahogany body delivers a rich mid-low end.

Seymour Duncan® '59 model™ / Custom 5™ pickups
Seymour Duncan® '59 model™ and Custom 5™ pickups provide balanced and warm tones.

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Gotoh® GE103B-T bridge
The Gotoh® GE103B-T bridge improves sustain and tuning stability.

Gotoh® GE101Z-T tailpiece
The stable Gotoh® GE101Z-T tailpiece holds your strings in tune.

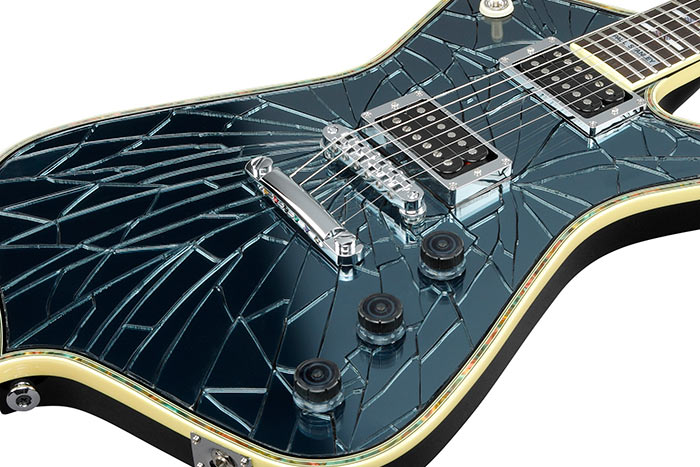

The "Cracked Mirror"
Ibanez obtained the original guitar of Stanley's and were able to faithfully recreate the original Cracked Mirror top with acrylic pieces, reproduced by hand by Japanese craftsmen one piece at a time.
