PS120
SPEC
-
SPECS
-
neck typePS3pc OkoumeSet-in neck (smooth heel)
-
top/back/bodyMaple topOkoume body
-
fretboardBound Ebony fretboardAcrylic & Abalone block inlay
-
fretMedium frets
-
number of frets22
-
bridgeGibraltar Performer bridge
-
string space10.5mm
-
tailpieceQuik Change III tailpiece
-
neck pickupSeymour Duncan® '59 model™ (H) neck pickupPassive/Alnico
-
bridge pickupSeymour Duncan® Custom 5™ (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL110
-
string gauge.010/.013/.017/.026/.036/.046
-
nutBone nut
-
hardware colorChrome
-
-
NECK DIMENSIONS
-
-
Scale :628mm/24.7"
-
a : Width43mm at NUT
-
b : Width57mm at 22F
-
c : Thickness20mm at 1F
-
d : Thickness23.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are three knobs located along the lower edge of the body. From the end of the body towards the neck they are; tone, bridge volume, and neck volume knob. A three-way pickup selector switch is located towards the upper half of the guitar near the neck pickup.
-
OTHER FEATURES
-
Recommended Case
-
Features

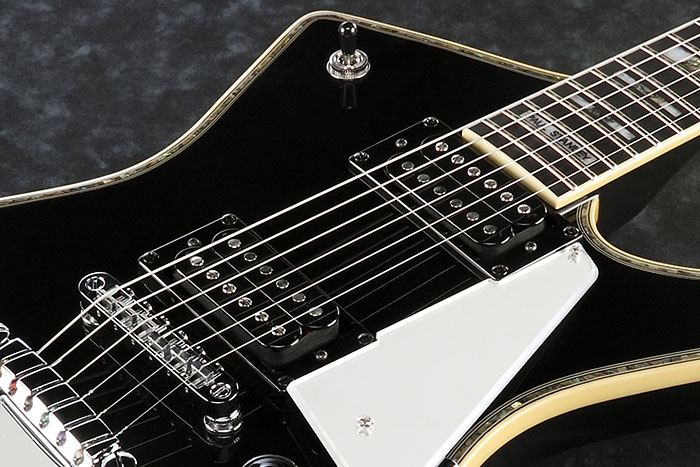

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability.
The low positioned saddles promise comfortable playability.

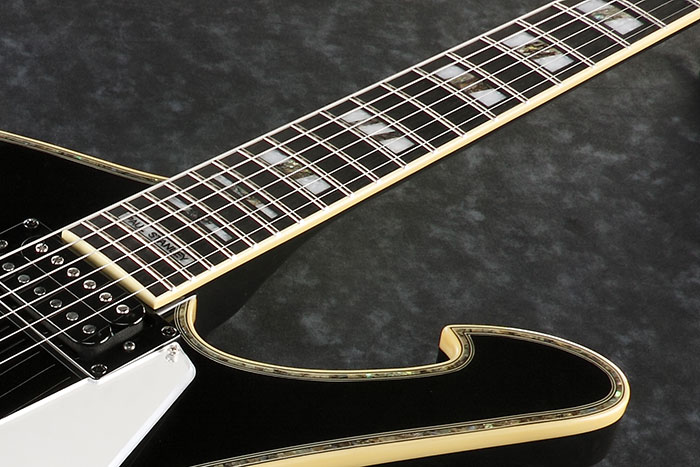

Ebony fretboard
Ebony produces a tight low and mid range with an iconic attack on the high end. It also features a quick response and rich sustain.
Seymour Duncan® '59/Custom 5™ pickups
The PS120 is equipped with Paul's choice of Seymour Duncan® pickups
