VB : Vintage Burst High Gloss

COLOR VARIATION：

ARTIST DETAIL

JSA

SPEC

SPECS
- body shape

  JSA body
- top

  Solid Engelmann Spruce top
- back & sides

  Okoume back & Okoume sides
- neck

  JSANyatoh neck
- fretboard

  Cultured Maple fretboard
- bridge

  Cultured Maple bridge
- inlay

  Abalone dot inlay
- soundhole rosette

  Abalone
- tuning machine

  Grover® Chrome Die-cast tuners
- number of frets

  20
- bridge pins

  Ibanez Advantage™
- strings

  D'Addario® XTAPB1253
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Fishman® S-Core
- preamp

  Fishman® Presys™ preamp w/Onboard tuner
- output jack

  1/4" Endpin Jack
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    651mm/25.6"
  - a : Width

    43mm at NUT
  - b : Width

    55mm at 14F
  - c : Thickness

    20mm at 1F
  - d : Thickness

    21mm at 7F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 1/8"
  - b : Width

    16 1/8"
  - c : Max Depth

    4 1/4"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. At the very top left of the control panel is a tuner display. To the right of the tuner display is the volume knob. To the right of the volume knob is the tuner on/off button. Under these controls are three EQ knobs. From left to right are the bass, middle and treble knobs. Under the treble knob is the phase button.
OTHER FEATURES
- Recommended Case

  AEL50C

Features

Nyatoh neck

he Nyatoh neck provides a rich mid-low end.

Cultured Maple fretboard

Cultured Maple is an engineered tonewood made up of Maple and epoxy. By mixing and compressing with epoxy resin, the wood becomes stronger and more stable, and offers a smooth feel and a solid, yet fat, sound with no dead points on the fretboard.

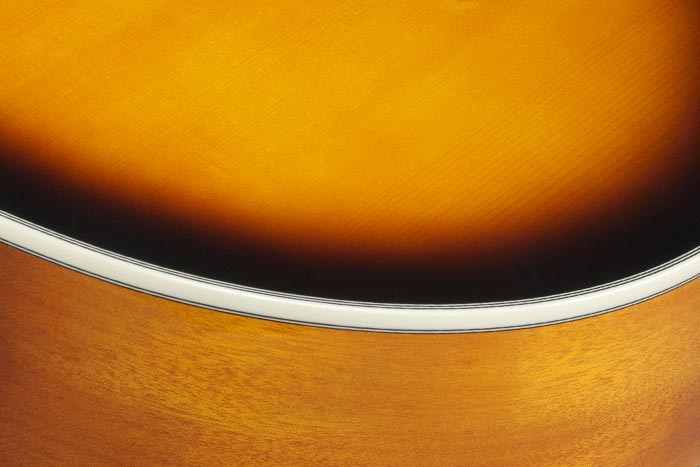

Solid Engelmann Spruce top

Solid Engelmann Spruce features a rich mid-range and a vibrant tonal character with superior articulation.

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Fishman® S-Core pickup

The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.

Fishman® Presys™ preamp w/Onboard tuner

The Fishman® Presys™ preamp produces a clear and expressive amplified signal and offers a variety of useful tone shaping options.

Grover® Die-cast machine heads

Grover® machine heads ensure accurate, stable tuning.

Cultured Maple bridge

The Cultured Maple bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
