JS140M

JS140M-SDL
  • SDL : Soda Blue
  • COLOR VARIATION：

Top of the JS140M-SDL's body
Back of the JS140M-SDL's body
Entire top of the JS140M-SDL
Entire back of the JS140M-SDL
ARTIST DETAIL
JS

SPEC

  • SPECS

    • neck type
      JSMaple neck
    • top/back/body
      American Basswood body
    • fretboard
      Maple fretboardBlack dot inlay
    • fret
      Medium frets
    • number of frets
      24
    • bridge
      Edge-Zero II bridge
    • string space
      10.8mm

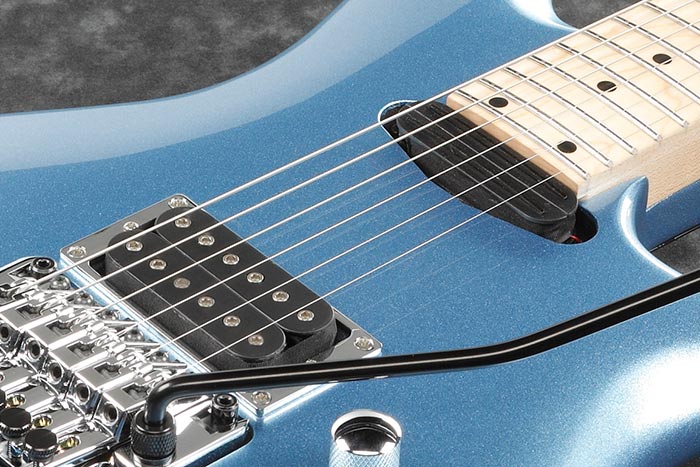

    • neck pickup
      Infinity RD (H) neck pickupPassive/Ceramic
    • bridge pickup
      Quantum (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL120
    • string gauge
      .009/.011/.016/.024/.032/.042
    • nut
      Locking nut
    • hardware color
      Chrome

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        42mm at NUT
      • b : Width
        57mm at 24F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        22.3mm at 12F
      • Radius :
        250mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    JS140M's Switching system diagram

    DESCRIPTION

    Coil tap is turned on by pulling up the tone knob. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in center position, the neck and bridge pickups are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch in in neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the neck side of the bridge pickup is selected.

  • CONTROLS

    JS140M's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a three-way pickup selector switch near the lower edge of the body. Above the switch, closer to the bridge, there are two knobs. The knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob. The tone knob also works as a coil tap switch. Pull on the knob to engage the coil tap.

  • OTHER FEATURES

    • Recommended Case
      M300C M300C
    • Coil-tap switch on tone control (push/pull)

Features

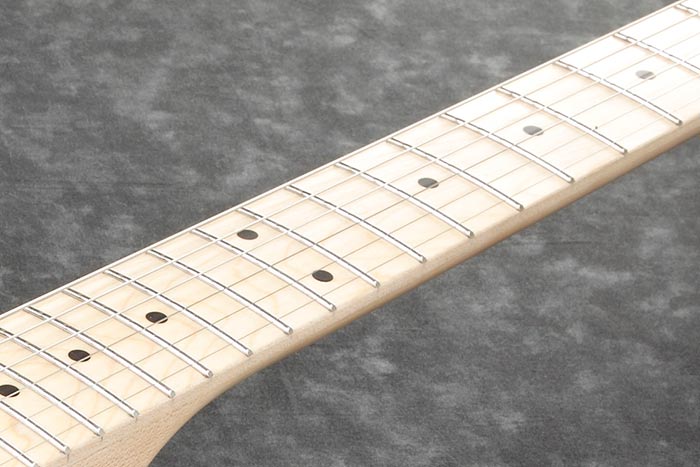

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.

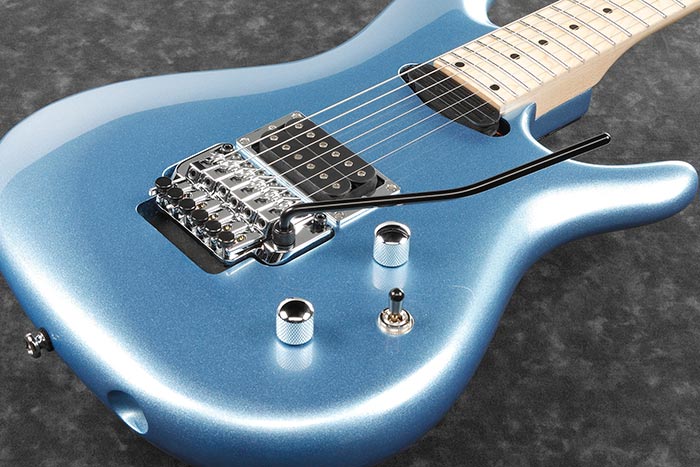

Edge Zero II bridge

Edge Zero II bridge

Lower profile designed tremolo for playing comfort, and stud lock function for stable tuning.

Coil-tap switch on tone control

Coil-tap switch on tone control

The push/pull coil tap adds sound and tonal variations for both pickups.
