FRM350

SPEC

SPECS

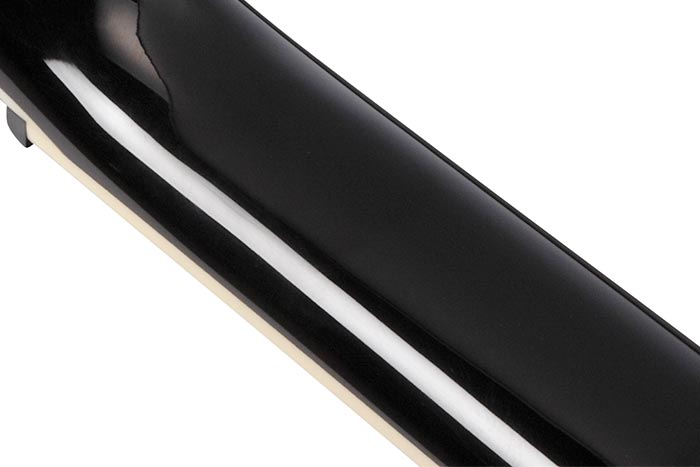

- neck type

  FRM3pc Okoume/MapleSet-in neck
- top/back/body

  Okoume body

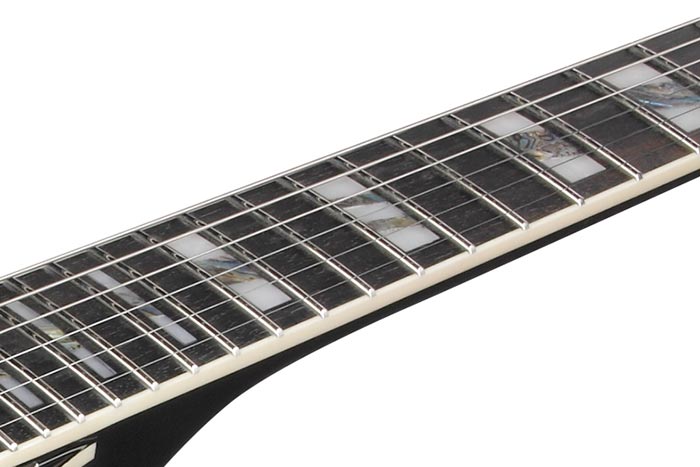

- fretboard

  Bound Ebony fretboardAcrylic & Abalone block inlay

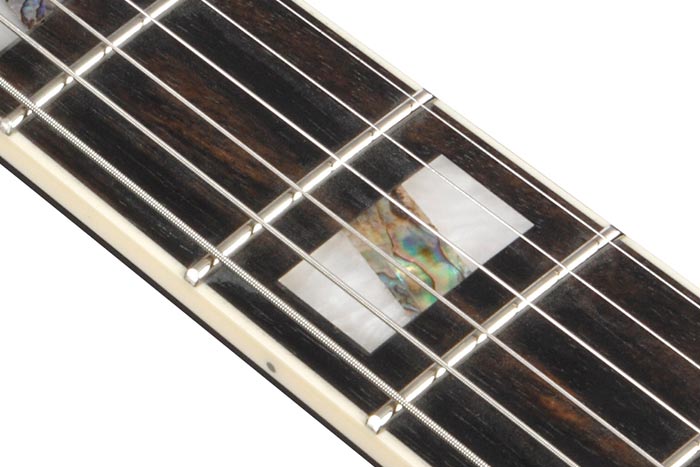

- fret

  Narrow & Tall frets
- number of frets

  22

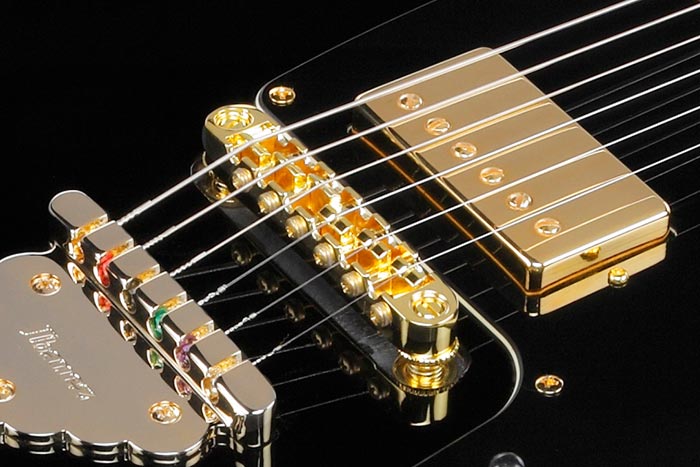

- bridge

  Gibraltar Performer bridge
- string space

  10.5mm

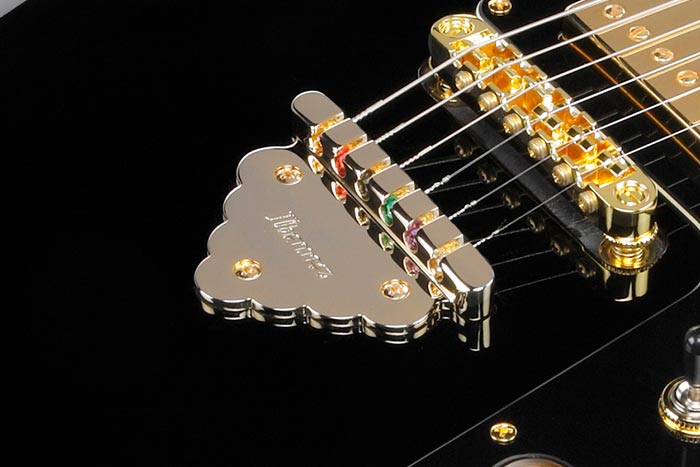

- tailpiece

  Quik Change Classic tailpiece

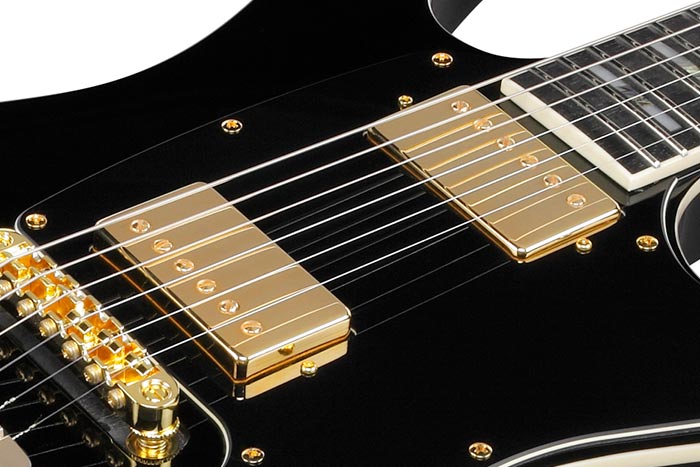

- neck pickup

  DiMarzio® Air Classic™ (H) neck pickupPassive/Alnico
- bridge pickup

  DiMarzio® Air Classic™ (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- nut

  Graph Tech® nut
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    628mm/24.75"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 22F
  - c : Thickness

    22mm at 1F
  - d : Thickness

    24mm at 12F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

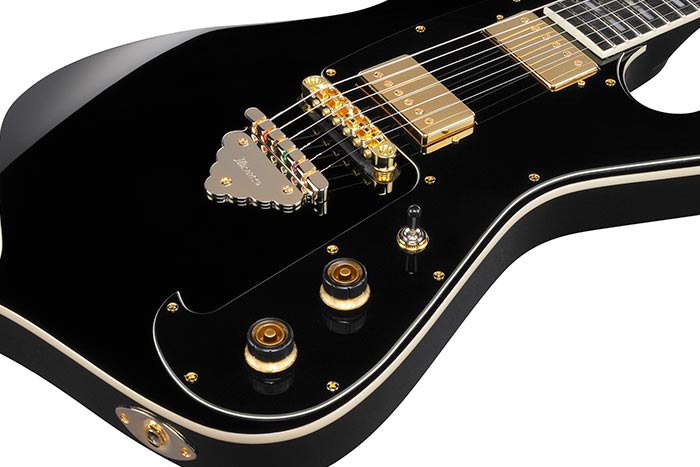

With the guitar held in the playing position, there is a three-way pickup selector knob near the knee cutout on the lower part of the body. From the direction of the selector towards the lower bout, there is tone knob and then a volume knob.
OTHER FEATURES
- Recommended Case

  FRM100C
- Gig bag included
