FRM300

FRM300-PR
  • PR : Purple
  • COLOR VARIATION：

Top of the FRM300-PR's body
Back of the FRM300-PR's body
Entire top of the FRM300-PR
Entire back of the FRM300-PR
ARTIST DETAIL
PGM/FRM

SPEC

  • SPECS

    • neck type
      FRM3pc Okoume/MapleSet-in neck
    • top/back/body
      Okoume body
    • fretboard
      Bound Ebony fretboardWhite dot inlay
    • fret
      Narrow & Tall frets
    • number of frets
      22
    • bridge
      Gibraltar Performer bridge
    • string space
      10.5mm
    • tailpiece
      Quik Change III tailpiece
    • neck pickup
      DiMarzio® PG-13™ (H) neck pickupPassive/Ceramic
    • middle pickup
      DiMarzio® PG-13™ (H) middle pickupPassive/Alnico & Neodymium
    • bridge pickup
      DiMarzio® PG-13™ (H) bridge pickupPassive/Ceramic
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • strings
      D'Addario® EXL110
    • string gauge
      .010/.013/.017/.026/.036/.046
    • nut
      Graph Tech® nut
    • hardware color
      Chrome

  • NECK DIMENSIONS

      • Scale :
        628mm/24.75"
      • a : Width
        43mm at NUT
      • b : Width
        57mm at 22F
      • c : Thickness
        22mm at 1F
      • d : Thickness
        24mm at 12F
      • Radius :
        305mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    FRM300's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck pickup is active. When the switch is between neck and center position, the neck and center pickups are active. When the switch is in center position, the center pickup is active. When the switch is between the center and bridge position, the center pickup and bridge pickup are active. When the switch is in bridge position, the bridge pickup is active.

  • CONTROLS

    FRM300's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout on the lower part of the body. From the direction of the selector towards the lower bout, there is tone knob and then a volume knob.

  • OTHER FEATURES

Features

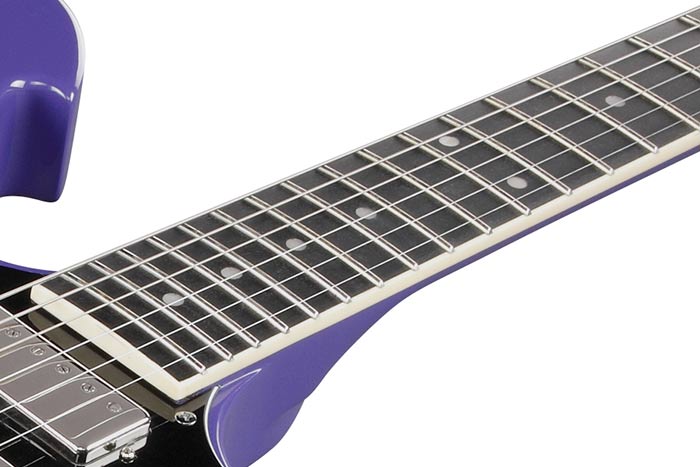

Ebony fretboard

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

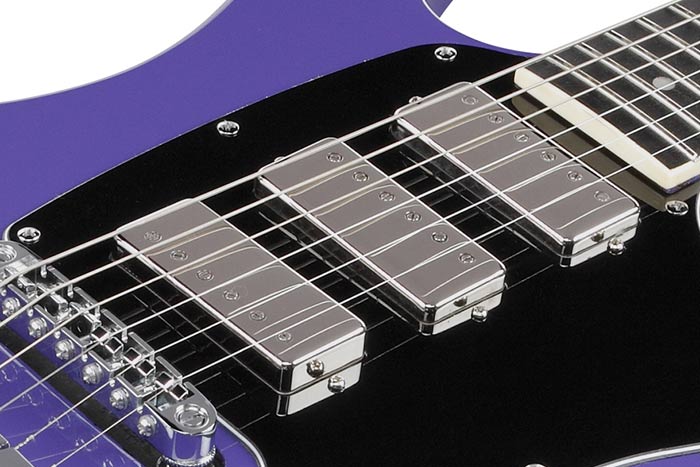

DiMarzio® PG-13™ H-S-H pickups

DiMarzio® PG-13™ H-S-H pickups

DiMarzio® PG-13™ pickups, specially wound for Paul Gilbert, offer extra clarity without losing the bite. These mini humbuckers have unique characteristics of both normal humbuckers and single coils.

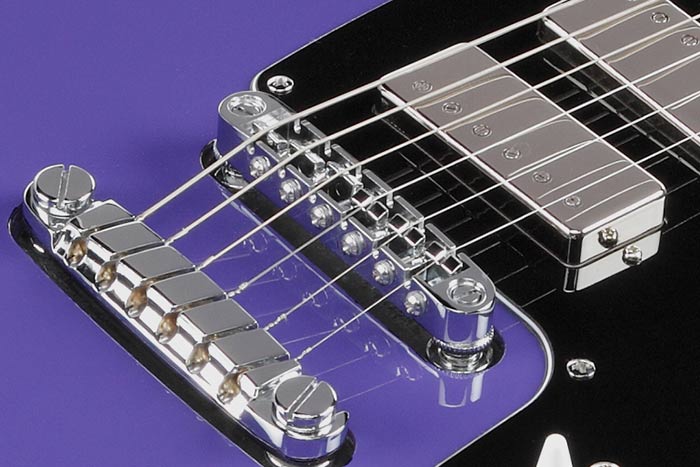

Gibraltar Performer bridge

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

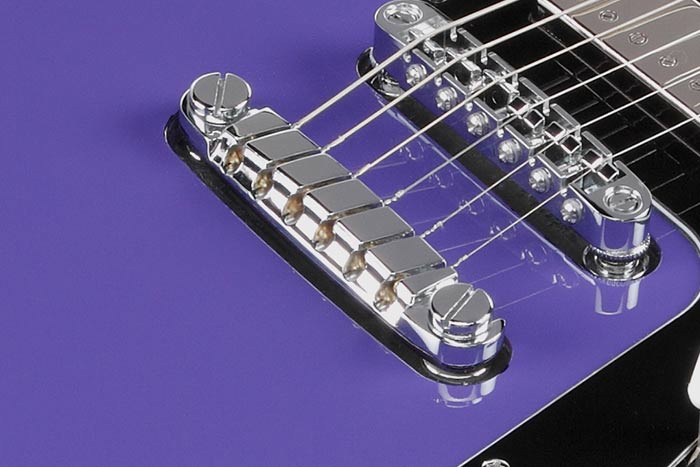

Quik Change III tailpiece

Quik Change III tailpiece

The Quik Change III tailpiece enables faster and easier string changing.
