BER10
SPEC
-
SPECS
-
neck typeAZ Oval CRoasted Maple neck
-
top/back/bodyAlder body
-
fretboardEbony fretboardReversed Sharktooth inlay
-
fretJumbo Stainless Steel frets
-
number of frets24
-
bridgeGotoh® T1502 bridge
-
string space10.5mm
-
neck pickupFishman® Fluence™ Bernth Custom Series (H) neck pickupActive/Alnico
-
bridge pickupFishman® Fluence™ Bernth Custom Series (H) bridge pickupActive/Ceramic
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL110
-
string gauge.010/.013/.017/.026/.036/.046
-
nutGraph Tech® nut
-
hardware colorChrome
-
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width42mm at NUT
-
b : Width57mm at 24F
-
c : Thickness20.5mm at 1F
-
d : Thickness22.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector is in the neck position and the tone knob is pushed in, the full neck humbucker is activated and in Voice 1. When the pickup selector is between the neck and middle position, the full neck humbucker is activated and in Voice 2. When the pickup selector is in the middle position, both humbuckers are fully activated and in Voice 2. When the pickup selector is between the middle and bridge position, the full bridge humbucker is activated and in Voice 2. When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 1. When the pickup selector is in the neck position with the tone knob pulled up, the neck humbucker is fully activated and in Voice 1. When the pickup selector is between the neck and middle positions, only the inner coil of the neck pickup is activated and in Voice 3. When the pickup selector is in the middle position, the inner coil of the neck pickup and the inner coil of the bridge pickup are each activated and in Voice 3. When the pickup selector is between the middle and bridge position, the inner coil of the bridge pickup are activated and in Voice 3, When the pickup selector is in the bridge position, the full bridge humbucker is activated and in Voice 1.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a five-way pickup selector switch near the knee cutout on the lower part of the body. The knob in front of it, towards the neck, is the volume knob, and the knob closer to the end of the body is the tone knob, which also serves as the Fishman Fluence Voicing switch. The Fishman Fluence Voicing switch changes the tone of the pickups via an electronic circuit. When the tone knob is pushed in, Voice 1 and Voice 3 are active, and when the tone knob is pulled out, Voice 2 and Voice 3 are active. The mix of voicings in use is based on the pickup combination selected via the 5-way switch.
-
OTHER FEATURES
-
Recommended Case
-
Gig bag included
-
Gotoh® MG-T locking machine heads
-
Fishman® Fluence™ Voicing switch on tone control (push/pull) for Bernth Signature Series pickups
-
Luminescent side dot inlay
-
Features
Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

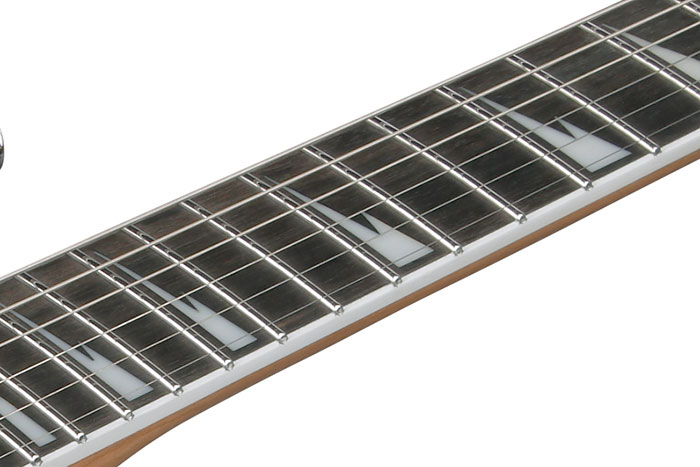

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

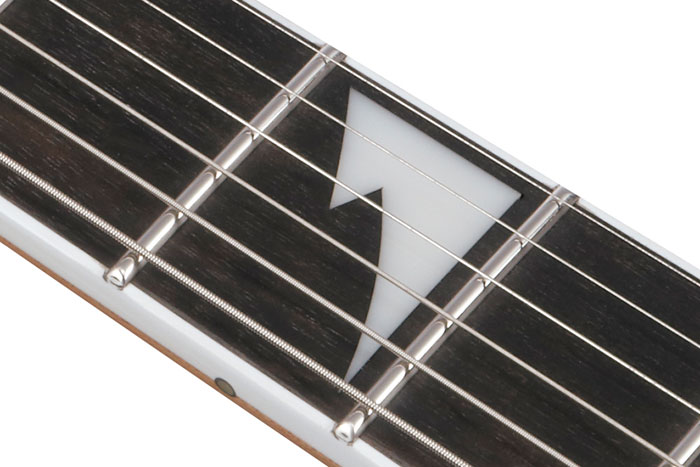

Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

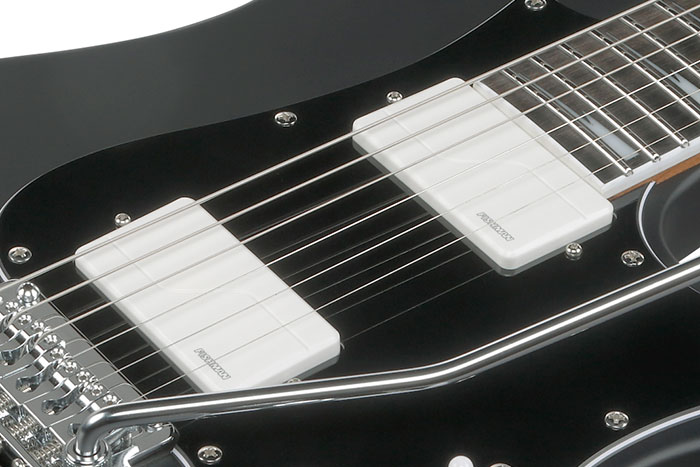

Fishman® Fluence™ Bernth Custom Series Humbacker pickups
Bernth's custom Fishman® Fluence™ set was designed to cover the widest possible tonal range, eliminating the need to switch guitars for different sounds and styles. From atmospheric cleans to searing modern metal tones, these pickups capture the full scope of his session and solo work with unmatched clarity and versatility.

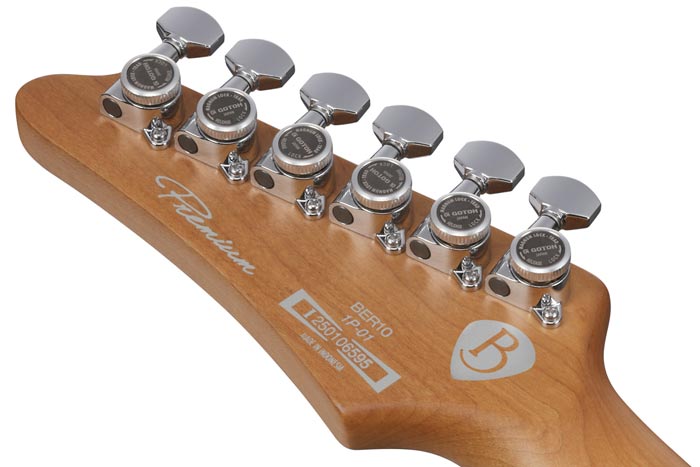

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

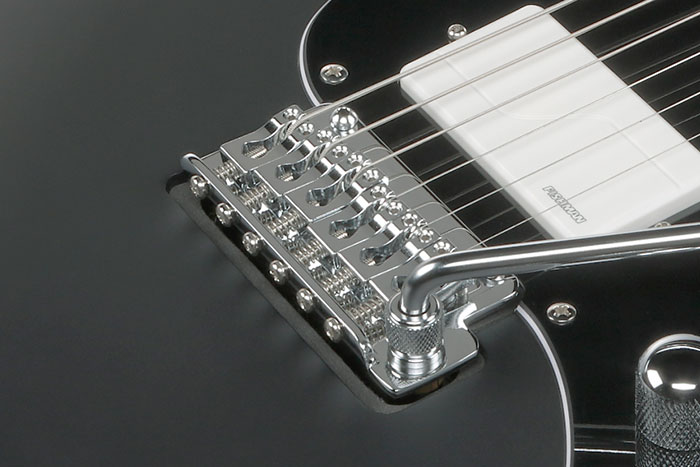

Gotoh® T1502 tremolo
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
Fishman® Fluence™ Voicing switch on tone control (push/pull) for Bernth Signature Series pickups
The Voicing switch allows the pickups to switch between three musically complementary voices.
Bernth logo
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
