V40
- OPN : Open Pore Natural
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Dreadnought body
- top
- Spruce top
- back & sides
- Meranti back & Meranti sides
- neck
- VMeranti neck
- fretboard
- Nandu Wood fretboard
- bridge
- Nandu Wood bridge
- inlay
- White dot inlay
- soundhole rosette
- Water decal

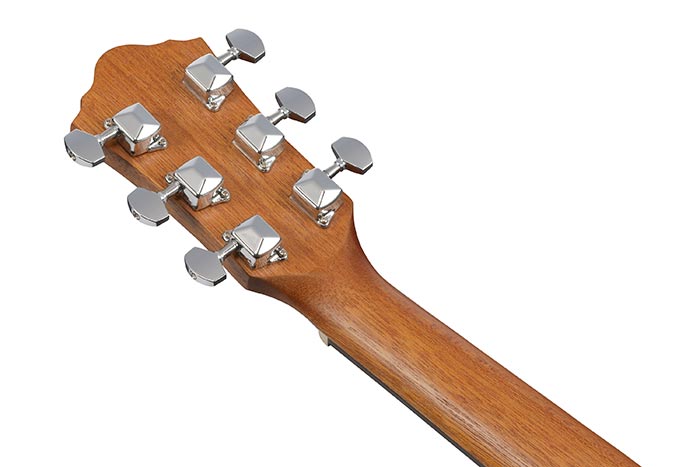

- tuning machine
- Chrome Covered tuners
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 42mm at NUT
- b : Width
- 54mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 250mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/4"
- b : Width
- 15 7/8"
- c : Max Depth
- 5"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
OTHER FEATURES
Features
Meranti neck
Nandu Wood fretboard
The Nandu Wood fretboard provides a rich and warm tone.
Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.
Meranti back and sides
Meranti back and sides provide a warm and balanced tone.
Nandu Wood bridge
The Nandu Wood bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
