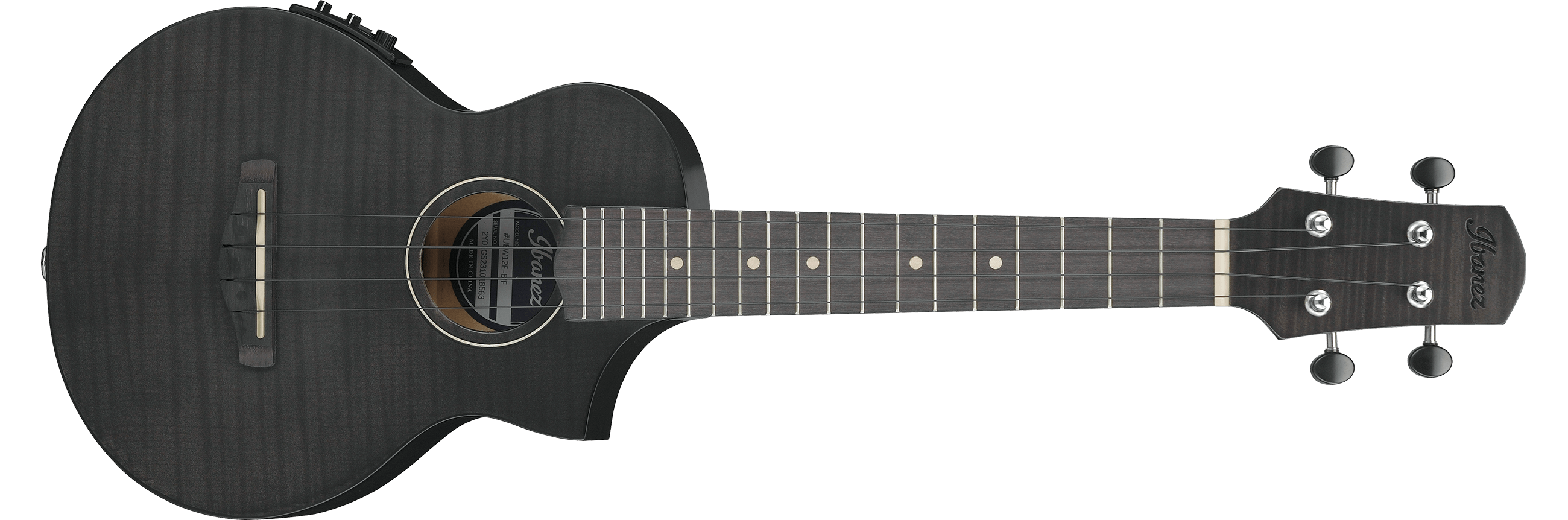

UEW12E
- BIF : Black Ice Flat
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Cutaway Concert Style EW body
- top
- Flamed Maple top
- back & sides
- Flamed Maple back & Flamed Maple sides
- neck
- UEWOkoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- Maple dot inlay
- soundhole rosette
- Maple
- tuning machine
- Chrome Open Gear tuners
- number of frets
- 19
- strings
- Aquila® Nylblack
- string gauge
- .026/.032/.039/.027
- string space
- 13mm
- factory tuning
- 1A,2E,3C,4G
- pickup
- Ibanez Undersaddle pickup
- preamp
- Ibanez AEQ2U preamp w/Onboard tuner
- output jack
- 1/4" Endpin Jack
- battery
- CR2032 x2
-
NECK DIMENSIONS
-
- Scale :
- 382mm/15"
- a : Width
- 35mm at NUT
- b : Width
- 44mm at 14F
- c : Thickness
- 17.6mm at 1F
- d : Thickness
- 20.6mm at 7F
- Radius :
- Flat
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 10 1/2"
- b : Width
- 8 1/4"
- c : Max Depth
- 2 7/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The knob on the far left is the volume knob. To the right of the volume knob is a small on/off switch for the built-in tuner. Next to the tuner switch are the bass and treble knobs.
-
OTHER FEATURES
- Recommended Case
-
FS40UC
- Recommended Bag
-
IUBC541-NB
Features
Okoume neck
The Okoume neck provides greater playing comfort.
NYLBLACK UKULELE STRINGS manufactured by Aquila Strings®
Purpleheart fretboard & bridge
Purpleheart produces a rich mid range with a crisp high end.
