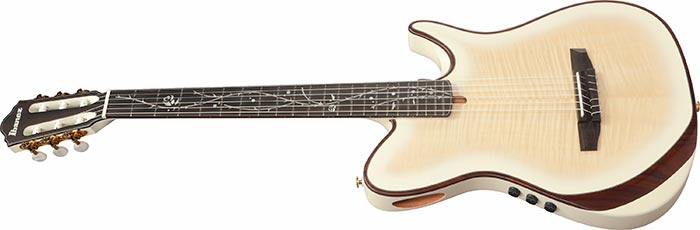

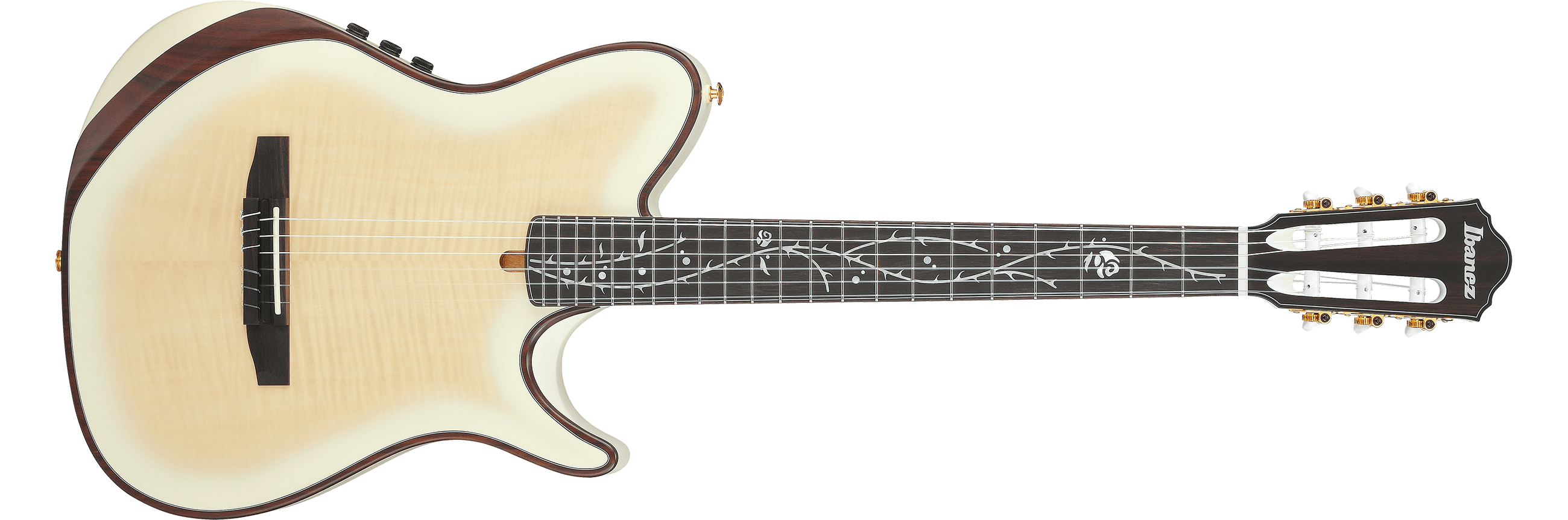

TOD100FMN
SPEC
-
SPECS
- body shape
- FRH chambered body
- bracing
- Fan Bracing for Chambered FRH body
- top
- Flamed Maple top
- back & sides
- Solid Okoume back & Solid Okoume sides
- neck
- C shapeNyatohSet-in neck
- fretboard
- Ebony fretboard
- bridge
- Ebony double hole bridge
- body binding
- Rosewood body binding
- inlay
- Tree of Death inlay

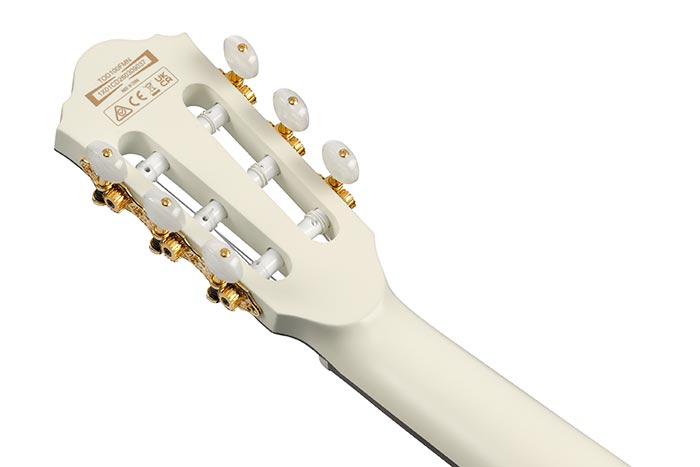

- tuning machine
- Gold Classical tuners
- number of frets
- 22
- strings
- D'Addario® XTC45
- string gauge
- .028/.032/.040/.028W/.035W/.044W
- string space
- 11.1mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Fishman® Acoustic Matrix™ Undersaddle / Fishman® Bridge Mounted Body
- preamp
- Fishman® Aura® TOD100N Custom Tim Henson System
- output jack
- 1/4" Endpin Jack (Mono or Stereo)
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 46mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 17 1/2"
- b : Width
- 13 15/16"
- c : Max Depth
- 1 15/16"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION

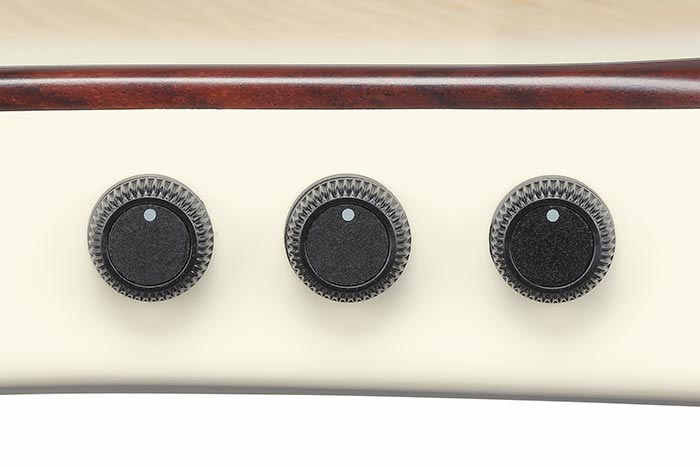

The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, the Aura Image blend knob, and the body pickup blend knob. When turned all the way to the left the volume knob is in set to minimum, and when turned all the way to the right the volume knob is set to maximum. The Aura Image Blend knob adjusts the mix between your pickup and the Aura Image. Turn it fully clockwise for a 100% Aura Image blend, or fully counterclockwise to isolate the undersaddle pickup signal. Press the Aura Image Blend knob to toggle the phase. This can improve bass response at low volumes and effectively reduce feedback when performing at higher volumes. Turn the body pickup blend knob control clockwise to add more of the body pickup's ambient and percussive elements into your Image-blended output.
-
OTHER FEATURES
- TOD100FMN comes with THGB1 (Tim Henson Signature Gig Bag).
- 400mmR fretboard radius
- Side Sound Port
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Ebony fretboard
Ebony produces tight lows and mid-range with a strong attack in the high end and features a quick response and rich sustain.

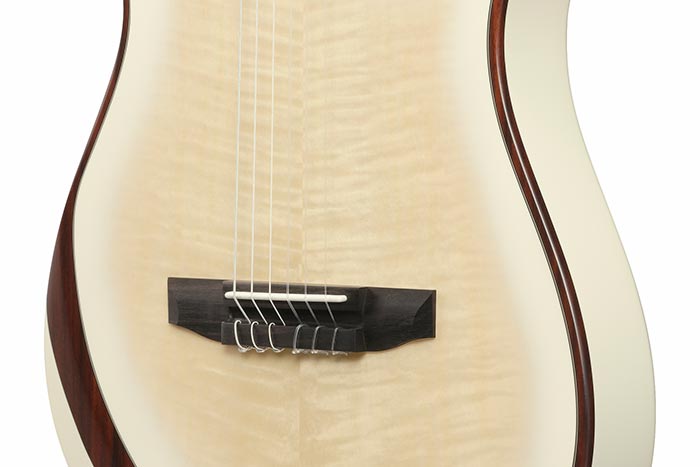

Flamed Maple top
The Flamed Maple top creates an attractive visual profile and contributes to a bright, focused tone.
Solid Okoume back and sides
Solid Okoume back and sides offer full-bodied and warm mid-range tones.
Fishman® Acoustic Matrix™ Undersaddle pickup / Fishman® Bridge Mounted Body pickup
The Fishman® Acoustic Matrix™ pickup delivers enhanced performance with its clear, transparent tone. Fishman® Bridge Mounted Body Pickup captures not only string vibrations but also the body’s natural resonance and percussive nuances. The result is an enhanced sense of air, depth, and authentic acoustic character.
Fishman® Aura® TOD100N Custom Tim Henson System
The Customized Fishman® TOD100N system, combining Fishman® Aura® technology with the Fishman® Acoustic Matrix™ undersaddle pickup, enables you to create vivid, natural acoustic sound. Equipped with Aura Acoustic Imaging technology, the system generates studio microphone–like response from the pickup signal and allows it to be blended seamlessly with the direct pickup sound. A stereo output function enables independent routing of piezo and body pickup signals from a single output jack. Combined with Aura’s Image blending, the undersaddle and body pickups deliver a rich, three-dimensional nylon-string tone with natural acoustic depth.
Control: Master Volume/ Aura® Image Blend control w/Phase switch/ Body pickup blend control

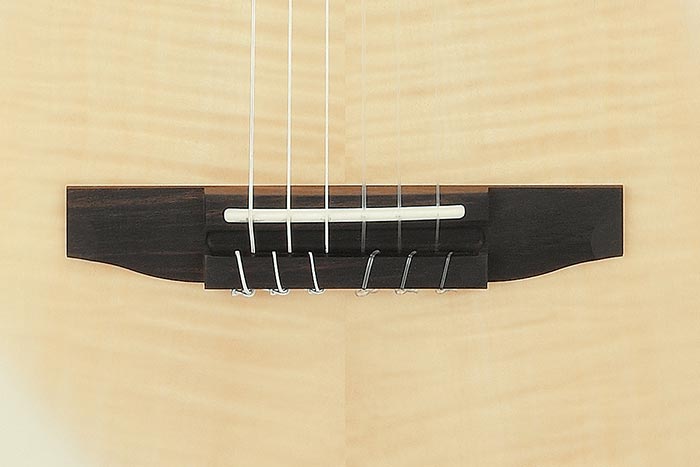

Ebony double hole bridge
The double hole bridge makes string changes super easy as there is no need to bend the strings or tie a knot at the end. This also helps maintain the correct string tension, which enhances tuning stability.
Gig bag included (THGB1)
It comes with Tim Henson signature Ibanez gig bag (THGB1) which is designed specifically to fit and protect Tim Henson signature Ibanez guitars.

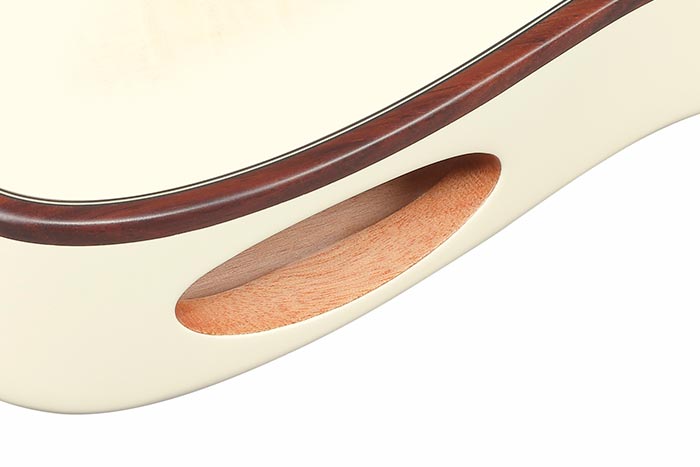

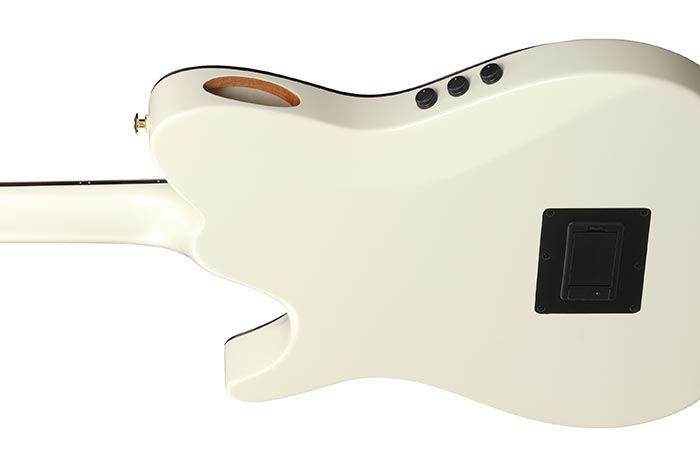

Modified FR Chambered body w/ Side sound port
The modified FR chambered body efficiently captures and retains vibrations, producing a well-defined, articulate tone with excellent sustain. Its unique chambered design—featuring no traditional sound hole and instead a side sound port—delivers a surprisingly full frequency range, from rich lows to clear highs, despite the thin body. The sound port allows you to hear and feel the guitar’s pure acoustic tone more clearly and directly. The chambered construction also enables smooth body contours and a seamless neck joint, enhancing overall playability.

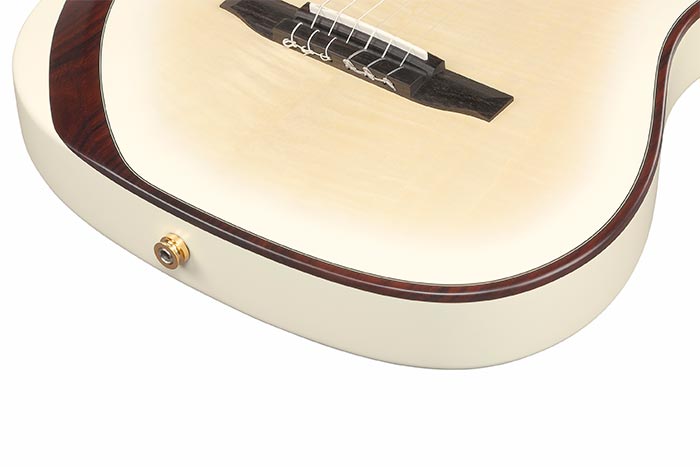

Ergonomic body contours & rounded edges
Rounded body edges and carefully sculpted contours (top, back, and cutaway) deliver a refined feel and playability comparable to an electric guitar.

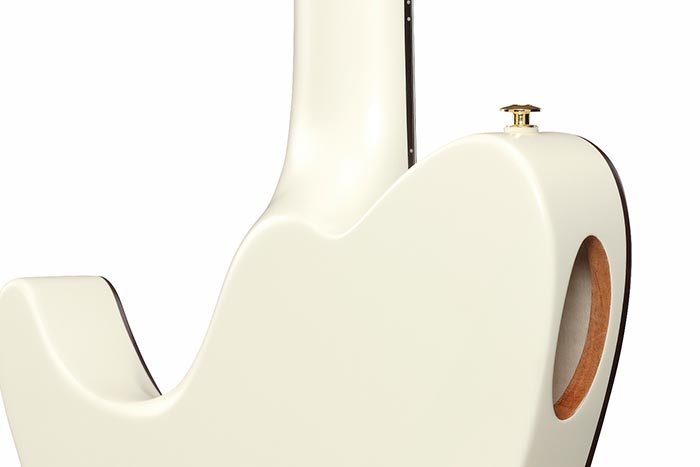

Comfort neck heel
The seamless neck joint allows for smooth, effortless access to higher frets, while the contoured cutaway further enhances playability in the upper register.

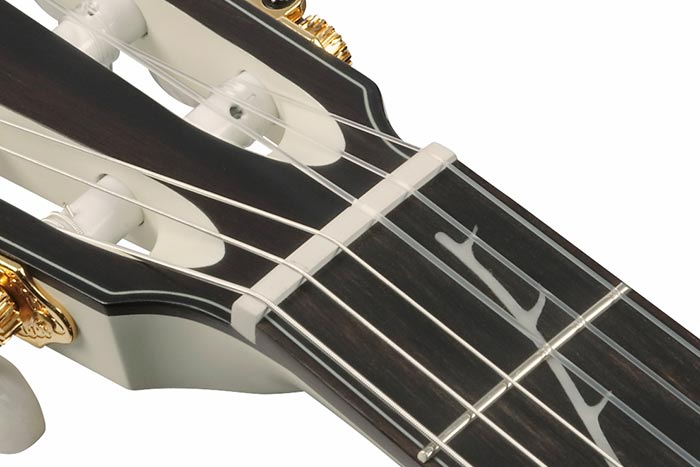

46mm width nut / 400mmR fretboard radius
The combination of a narrow 46mm width nut and 400mmR fretboard radius offers easy fingering.
Tree of Death fingerboard inlay
The name and the design of this fingerboard inlay are both nods to the iconic Ibanez "Tree of Life" inlay design, but with a twist.
