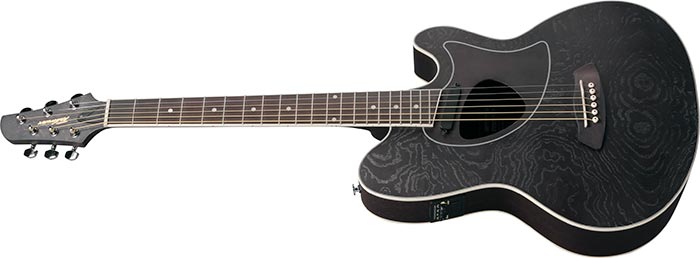

TCM50
- VBS : Vintage Brown Sunburst High Gloss
- GBO : Galaxy Black Open Pore
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Talman Double Cutaway body
- top
- Figured Ash top

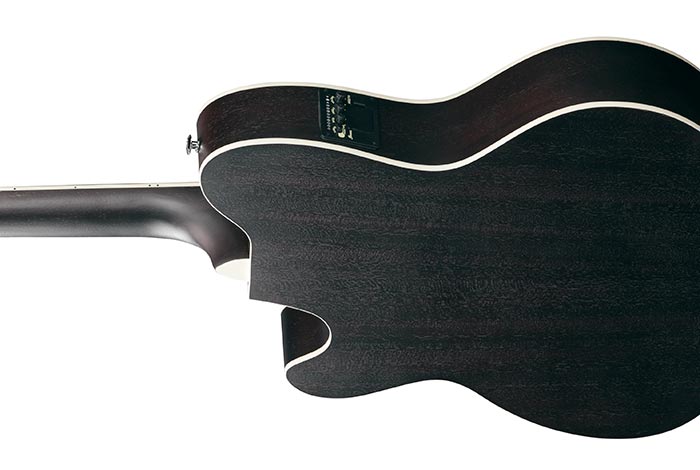

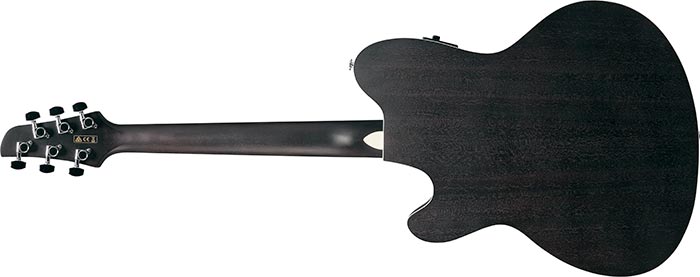

- back & sides
- Sapele back & Sapele sides
- neck
- TCMOkoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- White dot inlay
- soundhole rosette
- Basswood marquetry

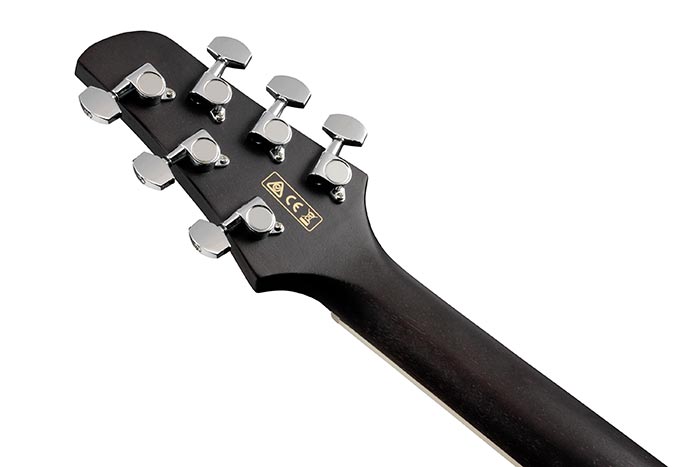

- tuning machine
- Chrome Die-cast tuners
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez AP2 Magnetic
- preamp
- Ibanez AEQ-2TM preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 42mm at NUT
- b : Width
- 54mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 23.5mm at 7F
- Radius :
- 250mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 18 1/8"
- b : Width
- 14 3/8"
- c : Max Depth
- 3 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
With the guitar held in the playing position, the button closest to the player is the tuner on/off switch. The second knob is the bass boost/cut, the third is the treble boost/cut, and the last is the volume boost/cut. Turning knobs to the left cuts frequencies and turning knobs right boosts them.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
Features
Okoume neck
The Okoume neck provides greater playing comfort.
Ibanez AEQ-2TM preamp w/Onboard tuner
The AEQ-2TM preamp is specifically-designed to adjust the frequencies of a bass and a treble, and allows operation of the built-in tuner without the instrument being plugged in.
Ibanez AP2 Magnetic pickup
The AP2 magnetic pickup perfectly reproduces an acoustic guitar's natural, warm sound.
Purpleheart fretboard & bridge
Purpleheart produces a rich mid range with a crisp high end.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
