RGA20P1PB
SPEC
-
SPECS
- neck type
- Wizard5pc Maple/Walnut neck
- top/back/body
- Poplar Burl/Maple/Walnut/Curly Maple/Panga Panga (17mm) topAmerican Basswood body
- fretboard
- Ebony fretboardMother of Pearl Step off-set dot inlay
- fret
- Jumbo Stainless Steel fretsPremium fret edge treatment
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Fusion Edge (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® Fusion Edge (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
-
OTHER FEATURES
- Recommended Case
-
MR500C
- Gig bag included
- Gotoh® machine heads
- dyna-MIX10 switching system w/Alter Switch
- Luminescent side dot inlay
Features

Wizard 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

Jumbo Stainless Steel frets with Premium fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.
The Premium Fret Edge Treatment offers a super smooth, comfortable performance.

Poplar Burl/Maple/Walnut/Curly Maple/Panga Panga top / American Basswood body
The Poplar Burl/Maple/Walnut/Curly Maple/Panga Panga top flaunts a gorgeous wood grain. American Basswood body delivers a natural and flat tone.

DiMarzio® Fusion Edge pickups
Through close collaboration between Ibanez and DiMarzio®, Fusion Edge pickups have been engineered to produce a powerful, distinctive tone with a crisp, cutting high end, and a tight, compressed bottom end, minus any muddy mid-range.

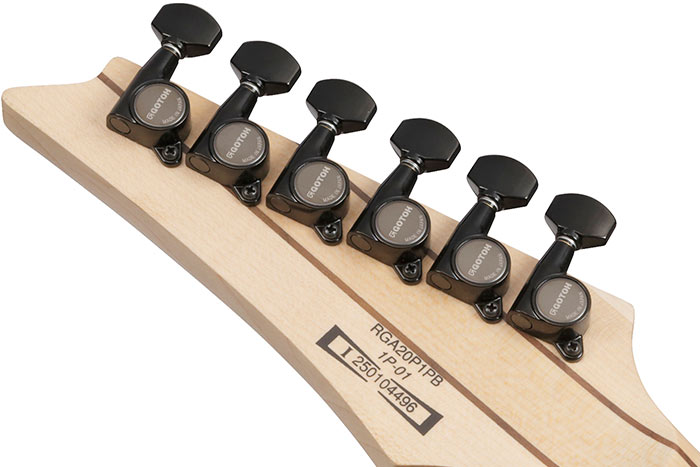

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

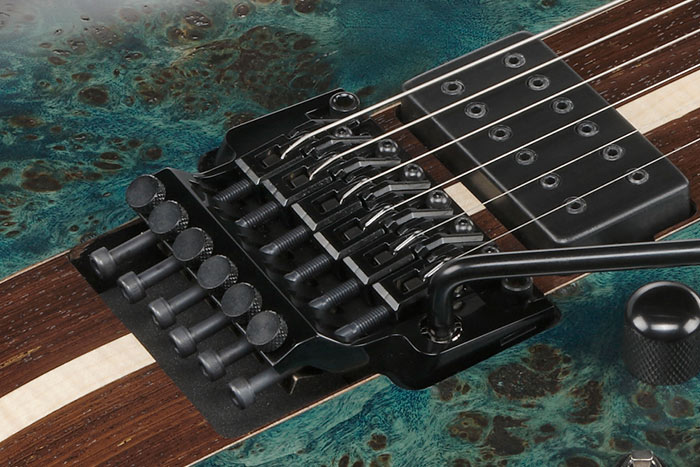

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
