JSM20-BKL
  • BKL : Black Low Gloss
  • COLOR VARIATION:
JSM

SPEC

  • SPECS

    • neck type
    • JSM3pc Nyatoh/MapleSet-in neck
    • top/back/side
    • Maple top Maple backMaple sides
    • fretboard
    • Bound Ebony fretboardAged Acrylic & Abalone block inlay
    • fret
    • Medium fretsArtstar fret edge treatment
    • number of frets
    • 22
    • bridge
    • Gibraltar Artist bridge
    • string space
    • 10.5mm
    • tailpiece
    • Quik Change III tailpiece
    • neck pickup
    • Super 58 (H) neck pickupPassive/Alnico
    • bridge pickup
    • Super 58 (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • string gauge
    • .010/.013/.017/.030/.042/.052
    • nut
    • Bone nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 628mm
      • a : Width
      • 43mm at NUT
      • b : Width
      • 57mm at 22F
      • c : Thickness
      • 21mm at 1F
      • d : Thickness
      • 24mm at 9F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 19 1/4"
      • b : Width
      • 15 3/4"
      • c : Max Depth
      • 2 5/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    JSM20's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If the neck Tri-sound switch is in neck position, the neck pickup is in parallel mode. If the switch is in center position, the neck side of the neck pickup is selected. If the switch is in bridge position, the neck pickup is in series mode.

  • CONTROLS

    JSM20's control diagram

    DESCRIPTION

    With the guitar held in the playing position, the knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob.

  • OTHER FEATURES

    • Hardshell case included
    • Tri-sound switch (for neck pickup)

Features

Tri-sound switch

Tri-sound switch

The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.

Gibraltar Artist bridge

Gibraltar Artist bridge

The Gibraltar Artist bridge, made of a light weight Aluminum bridge frame and Zinc saddles, provides natural tone, rich sustain and tuning stability. The low positioned saddles promise comfortable playability.

Ebony Fretboard w/ Artstar Fret Edge Treatment

Ebony Fretboard w/ Artstar Fret Edge Treatment

Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.

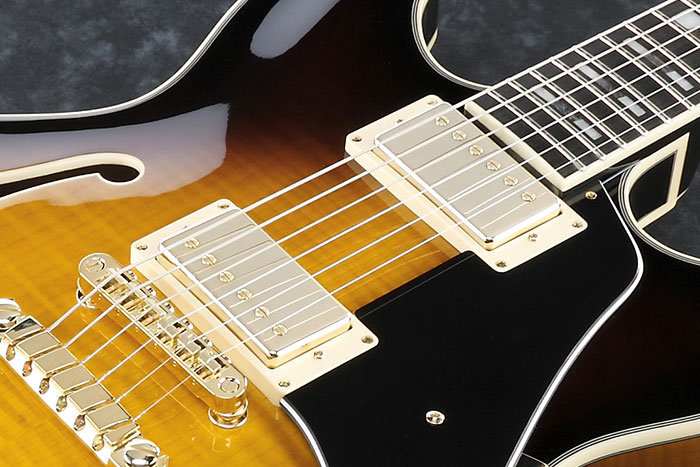

Super 58 pickups

Super 58 pickups

The Super 58 pickups deliver smooth, nuanced tones along with a crisp, biting growl.

Bone Nut

Bone Nut

The Bone nut provides richer tone from low to high.

Quik Change III Tailpiece

Quik Change III Tailpiece

The Quik Change III tailpiece enables faster and easier string changing.
