JSM10
SPEC
-
SPECS
- neck type
- JSM3pc Nyatoh/Mapleset-in neck
- top/back/side
- Flamed Maple top Flamed Maple backFlamed Maple sides
- fretboard
- Bound Ebony fretboardAcrylic & Abalone block inlay
- fret
- Medium fretsArtstar fret edge treatment
- number of frets
- 22
- bridge
- Gibraltar Artist bridge
- string space
- 10.5mm
- tailpiece
- Quik Change III tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL140
- string gauge
- .010/.013/.017/.030/.042/.052
- nut
- Bone nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.7"
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 24mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/4"
- b : Width
- 15 3/4"
- c : Max Depth
- 2 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If the neck Tri-sound switch is in neck position, the neck pickup is in parallel mode. If the switch is in center position, the neck side of the neck pickup is selected. If the switch is in bridge position, the neck pickup is in series mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
-
OTHER FEATURES
Features

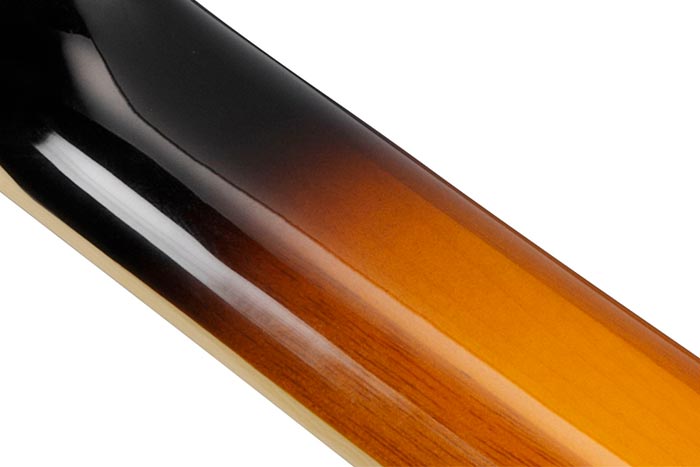

3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Medium frets with Artstar fret edge treatment
Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

Flamed Maple top / Flamed Maple back and sides
The Flamed Maple offers a beautiful wood grain.

Super 58 pickups
Super 58 pickups feature moderate output and vintage tone.

Gibraltar Artist bridge
The Gibraltar Artist bridge, made of a lightweight aluminum bridge frame and zinc saddles, provides natural tone, rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

Quik Change III tailpiece
The Quik Change III tailpiece enables faster and easier string changing.

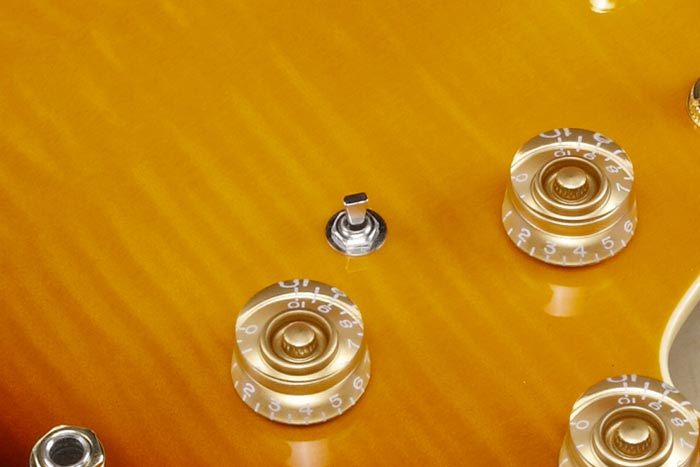

Tri-sound switch
The Tri-sound switch gives a humbucker pickup three different sounds, expanding the versatility of your guitar.
