JSA5
SPEC
-
SPECS
- body shape
- JSA body
- top
- Solid Engelmann Spruce top
- back & sides
- Okoume back & Okoume sides
- neck
- JSANyatoh neck
- fretboard
- Cultured Maple fretboard
- bridge
- Cultured Maple bridge
- inlay
- Abalone dot inlay
- soundhole rosette
- Abalone
- tuning machine
- Grover® Chrome Die-cast tuners
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Fishman® S-Core
- preamp
- Fishman® Presys™ preamp w/Onboard tuner
- output jack
- 1/4" Endpin Jack
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/8"
- c : Max Depth
- 4 1/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. At the very top left of the control panel is a tuner display. To the right of the tuner display is the volume knob. To the right of the volume knob is the tuner on/off button. Under these controls are three EQ knobs. From left to right are the bass, middle and treble knobs. Under the treble knob is the phase button.
-
OTHER FEATURES
Features

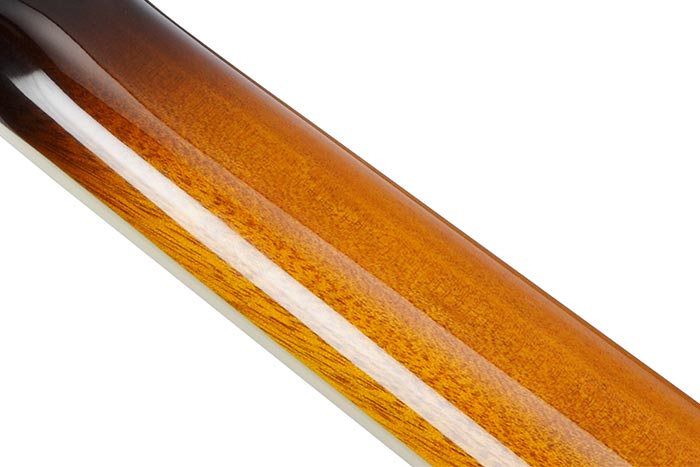

Nyatoh neck
he Nyatoh neck provides a rich mid-low end.
Cultured Maple fretboard
Cultured Maple is an engineered tonewood made up of Maple and epoxy. By mixing and compressing with epoxy resin, the wood becomes stronger and more stable, and offers a smooth feel and a solid, yet fat, sound with no dead points on the fretboard.
Solid Engelmann Spruce top
Solid Engelmann Spruce features a rich mid-range and a vibrant tonal character with superior articulation.
Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
Fishman® S-Core pickup
The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.
Fishman® Presys™ preamp w/Onboard tuner
The Fishman® Presys™ preamp produces a clear and expressive amplified signal and offers a variety of useful tone shaping options.
Grover® Die-cast machine heads
Grover® machine heads ensure accurate, stable tuning.
Cultured Maple bridge
The Cultured Maple bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
