JS140M
SPEC
-
SPECS
- neck type
- JSMaple neck
- top/back/body
- American Basswood body

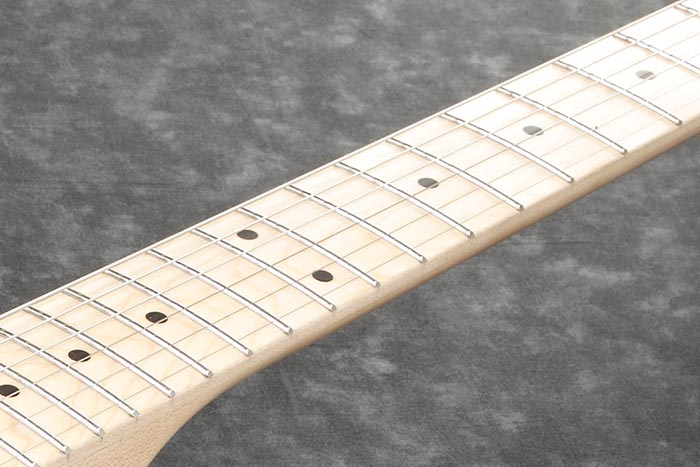

- fretboard
- Maple fretboardBlack dot inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- Edge-Zero II bridge
- string space
- 10.8mm

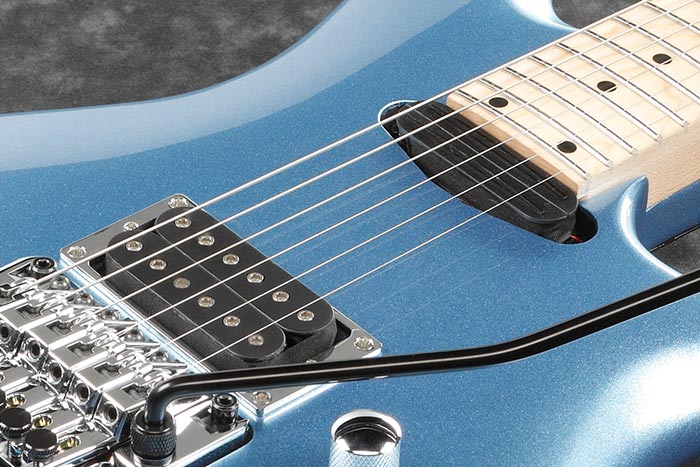

- neck pickup
- Infinity RD (H) neck pickupPassive/Ceramic
- bridge pickup
- Quantum (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22.3mm at 12F
- Radius :
- 250mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
Coil tap is turned on by pulling up the tone knob. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in center position, the neck and bridge pickups are selected. When the switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch in in neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickup are selected. When the switch is in bridge position, the neck side of the bridge pickup is selected.
-

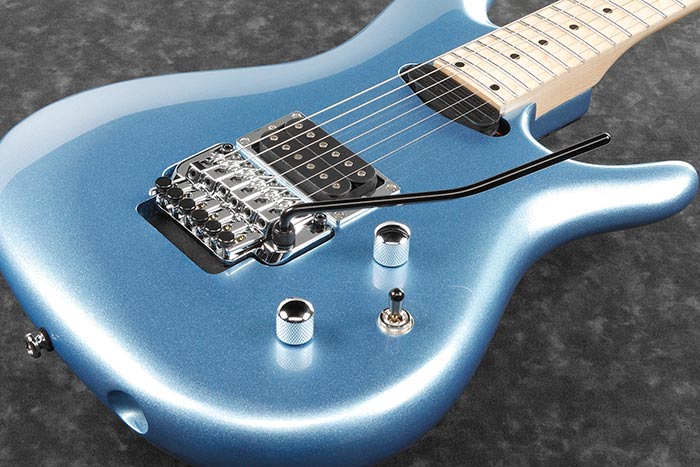

CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector switch near the lower edge of the body. Above the switch, closer to the bridge, there are two knobs. The knob closest to the end of the body is the tone knob. The knob closest to the neck is the volume knob. The tone knob also works as a coil tap switch. Pull on the knob to engage the coil tap.
-
OTHER FEATURES
Features
Maple neck
The Maple neck provides stability and bright tonal character.
