JBM27
SPEC
-
SPECS
- neck type
- Wizard II-73pc Maple/Bubinga neck
- top/back/body
- Maple topNyatoh body

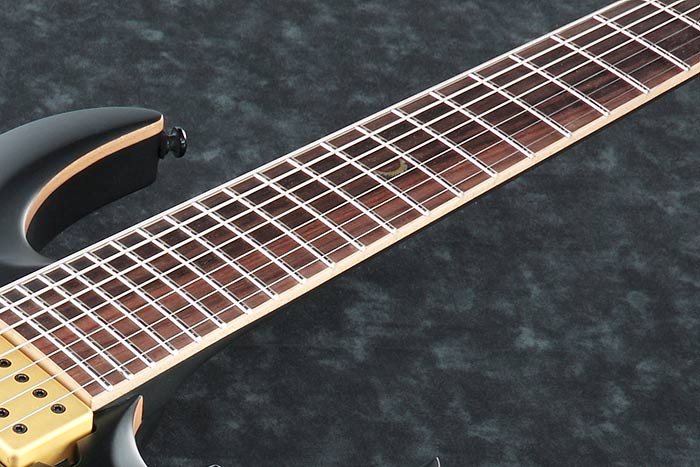

- fretboard
- Rosewood fretboardJBM special inlay on 12th fret inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Edge-Zero II-7 bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Titan 7 ™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® Titan 7 ™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D#,2A#,3F#,4C#,5G#,6D#,7G#
- strings
- D'Addario® EXL116+.064
- string gauge
- .011/.014/.018/.030/.042/.052/.064
- nut
- Locking nut
- hardware color
- Black (Gold machine heads)
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a five-way pickup selector switch close to the edge of the body. The volume knob is located near the end of the body.
-
