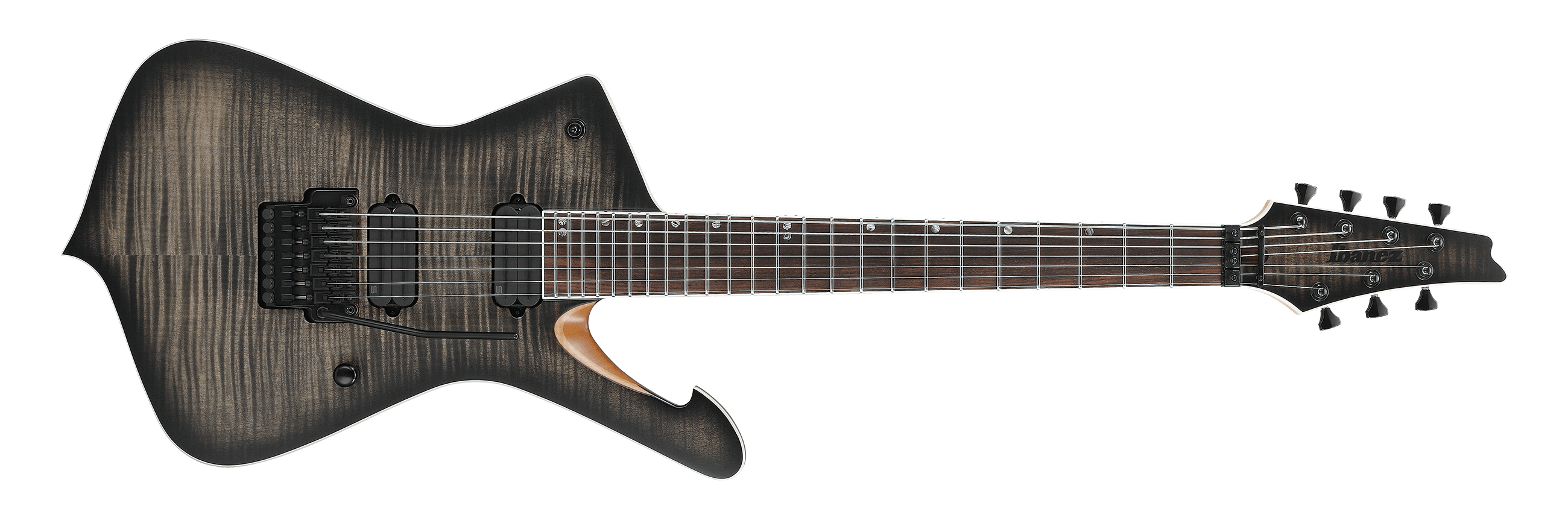

ICWH727
SPEC
-
SPECS
- neck type
- ICWH3pc Maple/Purpleheart neckSet-in neck (smooth heel)
- top/back/body
- Flamed Maple (4mm) topAfrican Mahogany body
- fretboard
- Bound Rosewood fretboardOff-set Abalone dot inlay
- fret
- Jumbo fretsCustom Shop fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge 7 tremolo bridge
- string space
- 10.8mm
- neck pickup
- Seymour Duncan® Jupiter Rails (H) neck pickupPassive/Ceramic
- bridge pickup
- Seymour Duncan® Jupiter Rails (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario®
- string gauge
- .008/.010/.015/.022/.030/.040/.056
- nut
- Locking nut
- hardware color
- Black
-
NECK DIMENSIONS
- Scale :
- 686mm/27"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 430mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard -
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

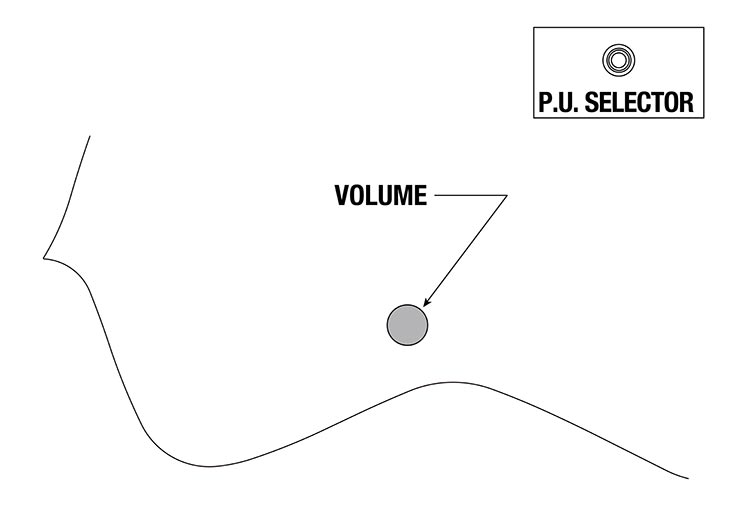

With the guitar held in the playing position, there is a volume knob near the knee cutou. A pickup selector switch is located towards the upper half of the guitar near the neck pickup.
-
OTHER FEATURES
- Hardshell case included
- Hipshot machine heads
Features

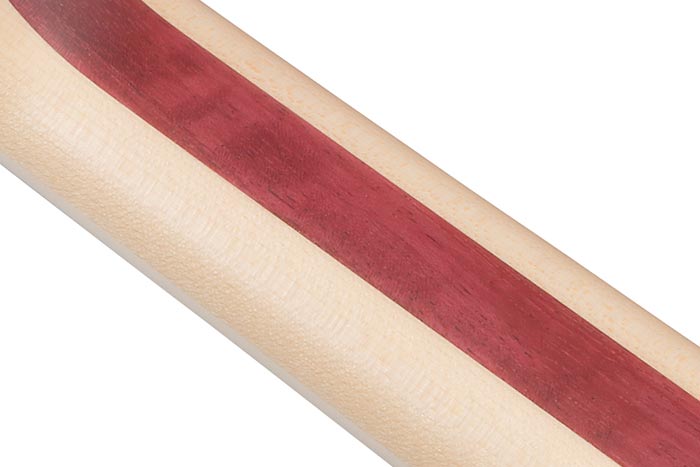

3pc Maple/Purpleheart neck
The Purpleheart stripe provides stability and longer sustain.

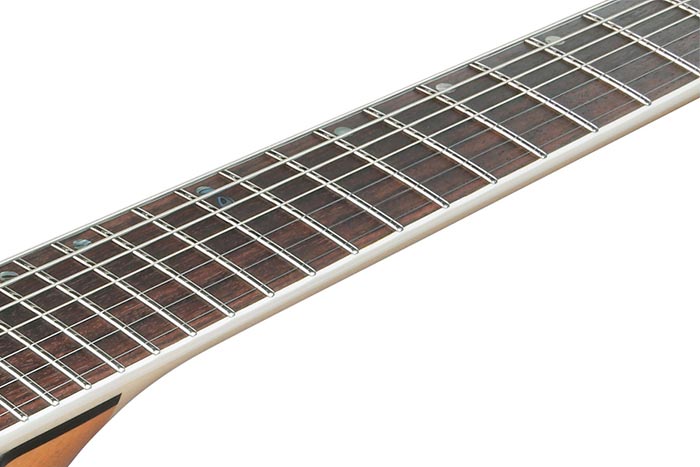

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

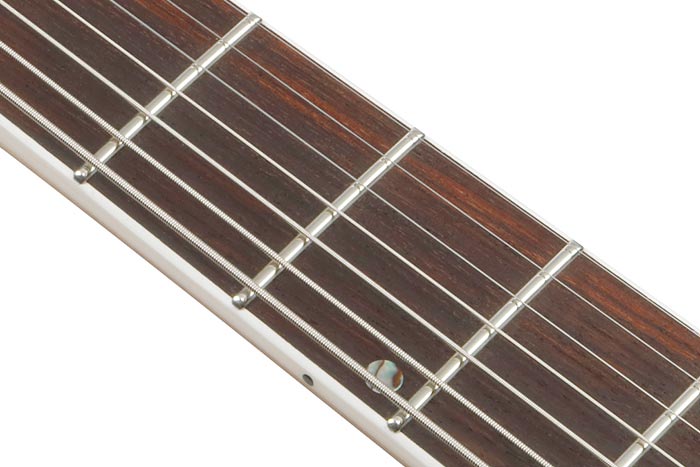

Jumbo frets with Custom Shop fret edge treatment
The Custom Shop fret edge treatment provides an extremely smooth, even feel around every single fret.

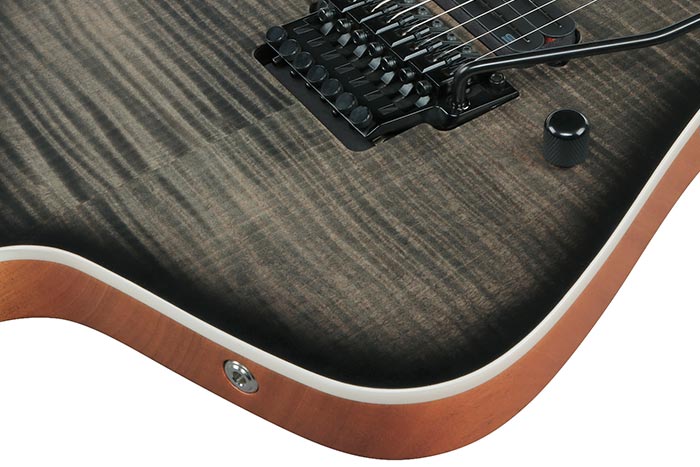

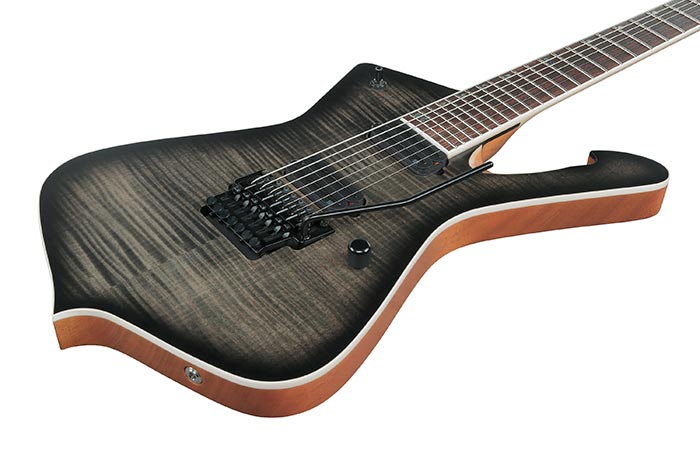

Flamed Maple (4mm) top / African Mahogany body
A stunning Flamed Maple top and African Mahogany body provide a warm tone with rich resonance.

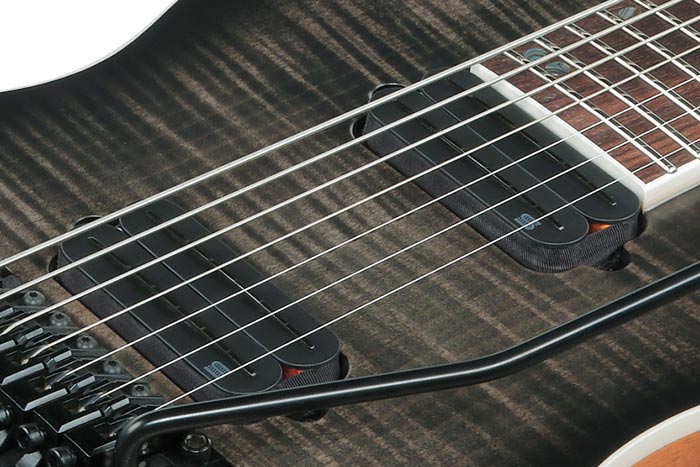

Seymour Duncan® Jupiter Rails pickups
Wes Hauch's signature pickup set from Seymour Duncan® features dual stainless-steel blade poles on each pickup, achieving a well-balanced output across all strings with enhanced note articulation. Tonewise, these pickups are specially voiced with a distinctive midrange character, and a high output level ideal for aggressive playing.

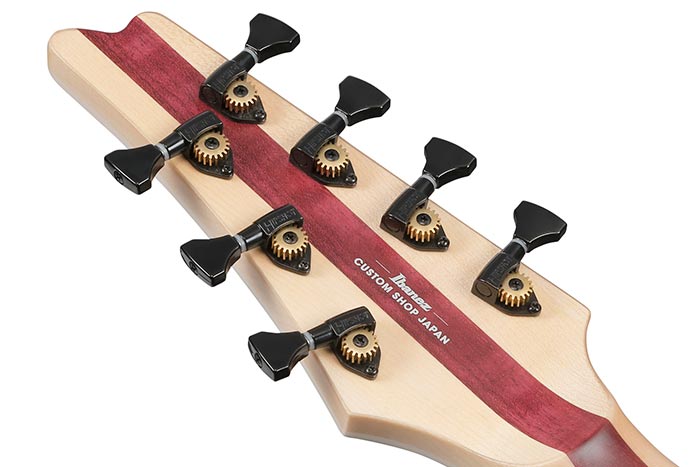

Hipshot machine heads
Hipshot machine heads offer incredible tuning stability.

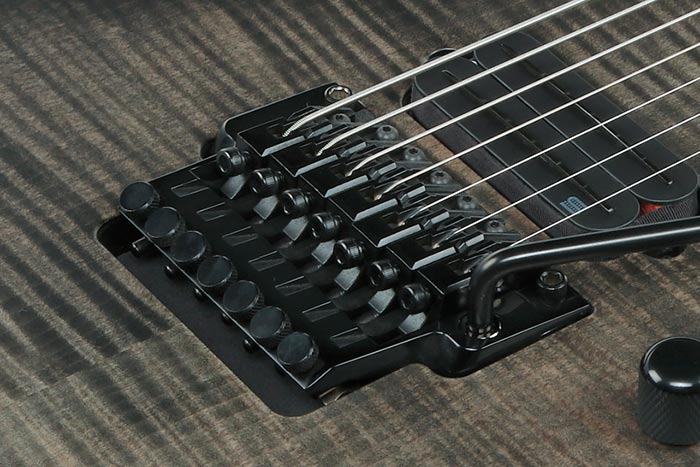

Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
