ICMS721
- IPT : Iron Pewter
- COLOR VARIATION：
COLOR VARIATION
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
-
Enlarge image (opens in a modal window)
SPEC
-
SPECS
- neck type
- Wizard II-75pc Maple/Walnut neck
- top/back/body
- Okoume body
- fretboard
- Ebony fretboardWhite Step off-set dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Mono-rail G2 bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Ceramic 8 (H) neck pickupActive/Ceramic
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic 8 (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario® EXL120+.059
- string gauge
- .009/.011/.016/.024/.032/.042/.059
- hardware color
- Black
-
NECK DIMENSIONS
- Scale :
- 691mm/27.2" - 648mm/25.5"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard -
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
-
OTHER FEATURES
- Gig bag included
- Fishman™ Fluence™ Voicing switch on volume control (push/pull)
- Luminescent side dots inlay
Features

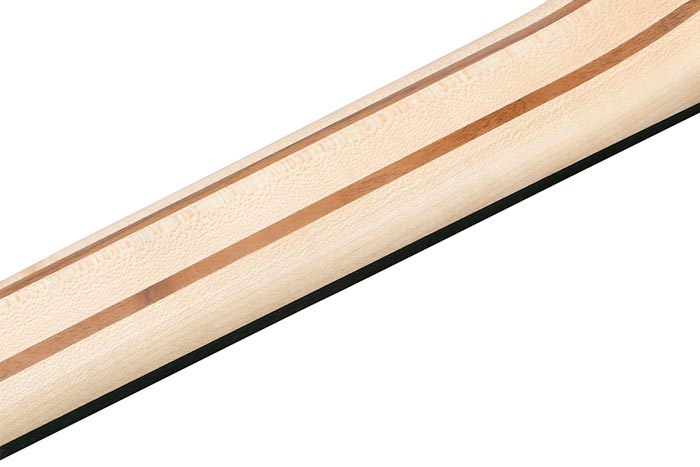

Wizard II-7 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

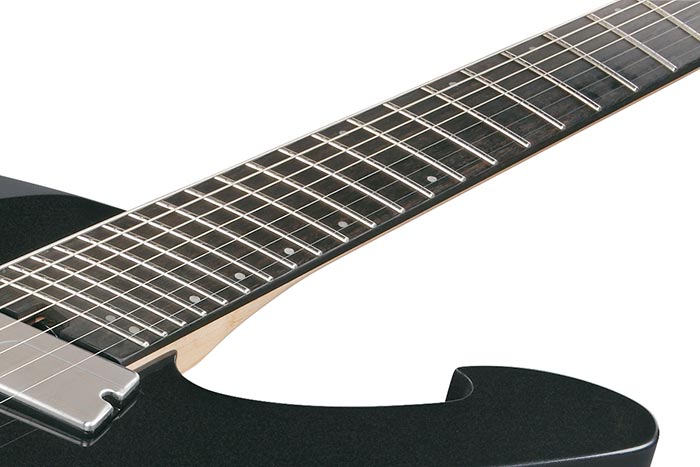

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

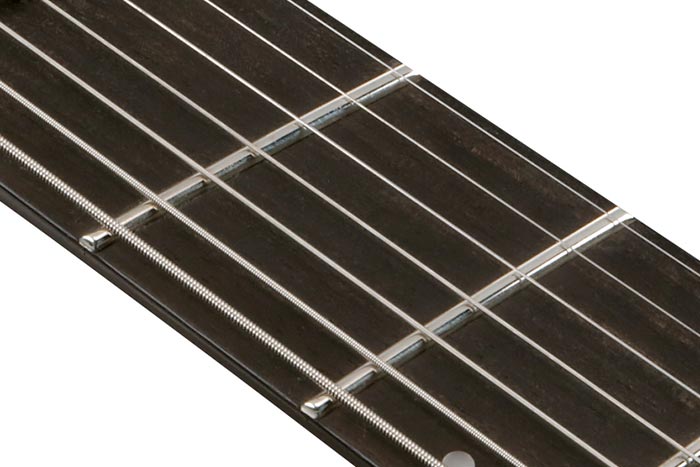

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

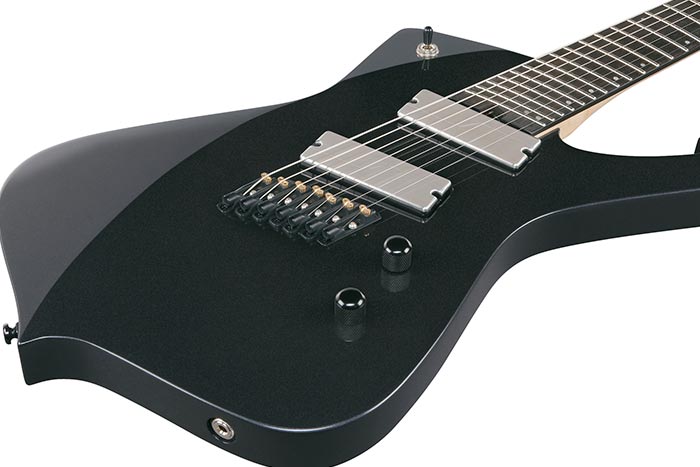

Okoume body
The Okoume body provides a bright and solid sound.

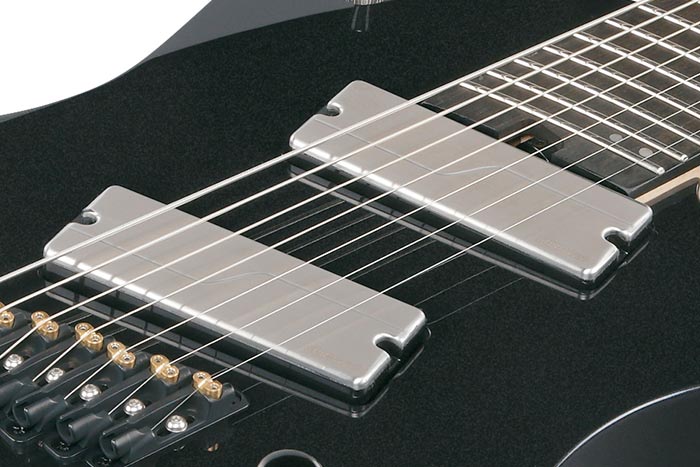

Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

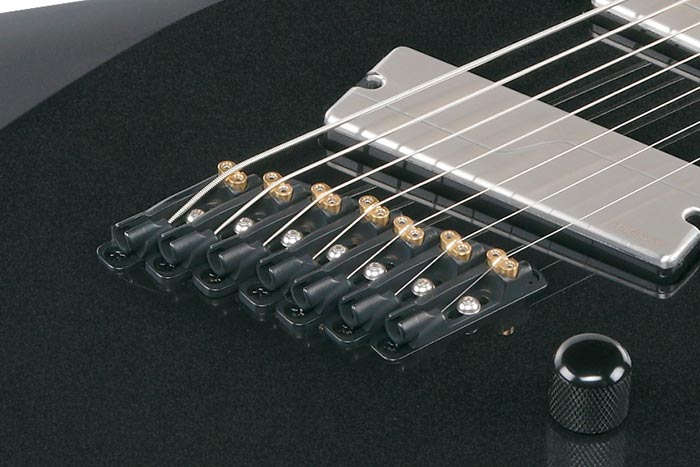

Mono-rail G2 bridge
The Mono-rail design transfers string resonance to the body while limiting string-to-string interference and provides superb note separation; The innovative Ibanez Mono-rail G2 bridge is also capable of string-through or top-loading string installation.

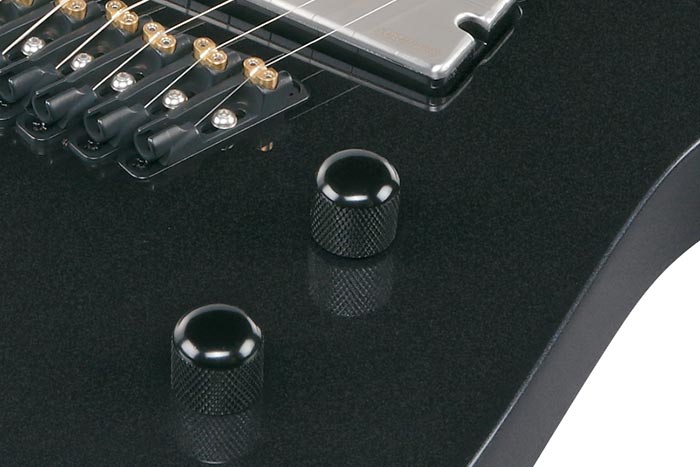

Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
