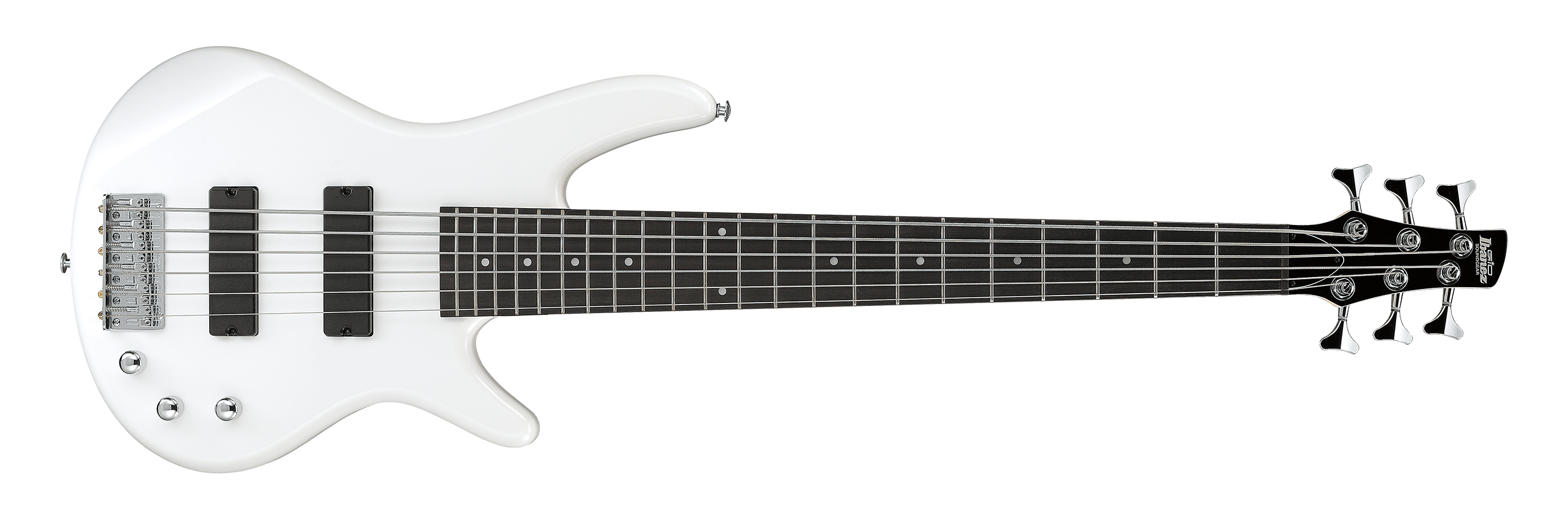

GSR186
- PW : Pearl White
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- GSR6Maple neck
- top/back/body
- Okoume body
- fretboard
- Purpleheart fretboardWhite dot inlay
- fret
- Medium frets
- number of frets
- 22
- bridge
- B16 bridge
- string space
- 16.5mm
- neck pickup
- Dynamix H neck pickupPassive
- bridge pickup
- Dynamix H bridge pickupPassive
- factory tuning
- 1C,2G,3D,4A,5E,6B
- string gauge
- .032/.045/.065/.080/.100/.125
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 54mm at NUT
- b : Width
- 84mm at 22F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION

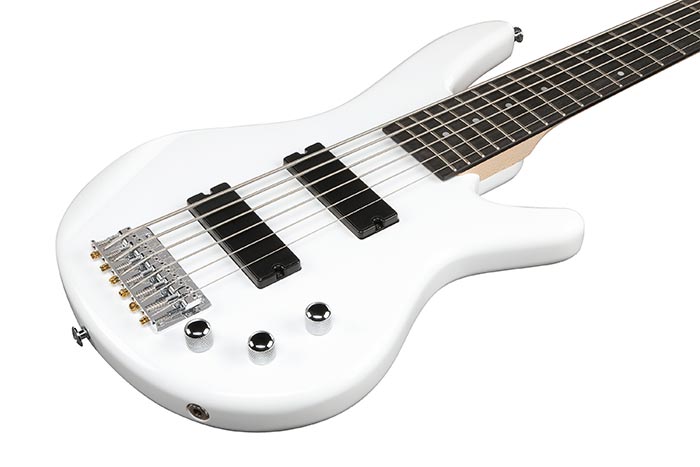

With the bass held in the playing position, from the end of the body towards the direction of the neck, the controls are, tone, bridge pickup volume, and neck pickup volume.
-
OTHER FEATURES
Features
Maple neck
The Maple neck provides stability and bright tonal character.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this bass.
B10 series bridge
The B10 bridge allows fully adjustable intonation and solid tuning stability.
Dynamix H pickups
Dynamix H pickups deliver rich and powerful sound.
