GB10SE-BS
  • BS : Brown Sunburst
  • COLOR VARIATION:
GB

SPEC

  • SPECS

    • neck type
    • GB3pc Mapleset-in neck
    • top/back/side
    • Spruce top Maple backMaple sides
    • fretboard
    • Bound Ebony fretboardAcrylic & Abalone block inlay
    • fret
    • Medium fretsArtstar fret edge treatment
    • number of frets
    • 22
    • bridge
    • Ebony bridge
    • string space
    • 10.4mm
    • tailpiece
    • GB10 tailpiece
    • neck pickup
    • GB special (H) neck pickupPassive/Alnico
    • bridge pickup
    • GB special (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® ECG24 Flatwound
    • string gauge
    • .011/.015/.022w/.030/.040/.050
    • nut
    • Half-Bone/Half-Brass nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 628mm/24.7"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 57mm at 22F
      • c : Thickness
      • 20mm at 1F
      • d : Thickness
      • 22mm at 9F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
      • 18 7/8"
      • b : Width
      • 14 1/2"
      • c : Max Depth
      • 3 3/8"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • SWITCHING SYSTEM

    GB10SE's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.

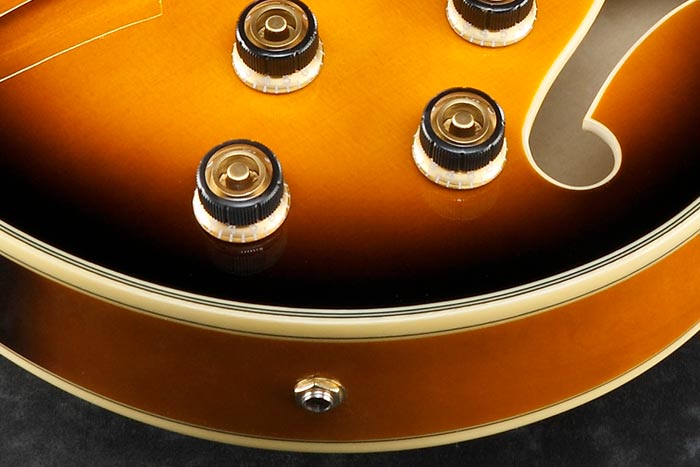

  • CONTROLS

    GB10SE's control diagram

    DESCRIPTION

    There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.

  • OTHER FEATURES

    • Hardshell case included
    • Half-Bone/Half-Brass Nut

Features

3pc Maple neck

3pc Maple neck

A strong 3pc Maple neck provides an enriched resonance.

Ebony fretboard

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Medium frets with Artstar fret edge treatment

Medium frets with Artstar fret edge treatment

Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

Spruce top / Maple back and sides

Spruce top / Maple back and sides

The Spruce top's smooth wood appearance enriches the response of your playing. The Maple back and sides provide a rich tone and bright attack with a solid sound.

GB special pickups

GB special pickups

GB special pickups are installed and float off the body, eliminating feedback and enabling a superbly warm jazz sound.

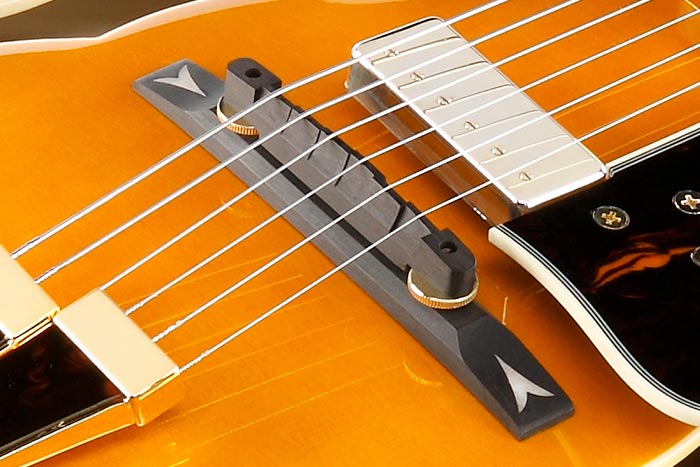

Ebony bridge

Ebony bridge

The Ebony bridge transfers string vibration directly to the body, delivering a natural and warm tone.

GB10 tailpiece

GB10 tailpiece

The gorgeous GB10 tailpiece provides better tuning stability.

Half-Bone/Half Brass Nut

Half-Bone/Half Brass Nut

Half-Bone/Half-Brass Nut provides well-balanced tone.
