GA35TCE
- DVS : Dark Violin Sunburst High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Thinline Cutaway Classical body
- top
- Spruce top
- back & sides
- Sapele back & Sapele sides
- neck
- GANyatoh neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood bridge
- inlay
- Off-set abalone dot inlay
- soundhole rosette
- Classical Mosaic Design

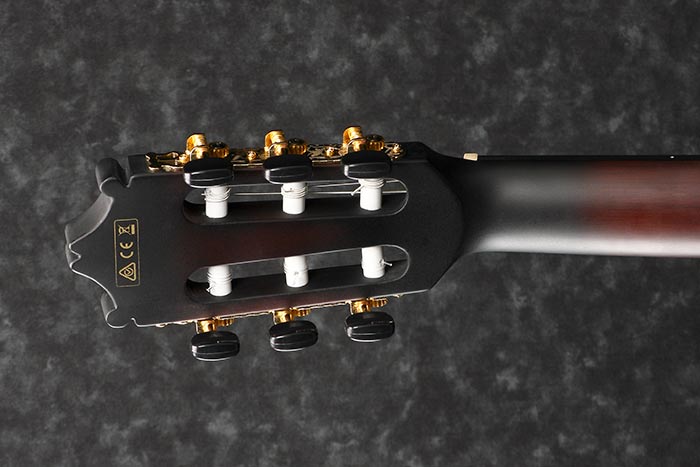

- tuning machine
- Gold Classical tuners w/Black knobs
- number of frets
- 21
- strings
- Ibanez ICLS6NT
- string gauge
- .0280/.0322/.0403/.029/.035/.043
- string space
- 11.6mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ210T preamp w/Onboard tuner
- output jack
- Balanced XLR & 1/4" outputs
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 46mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 23mm at 7F
- Radius :
- FlatmmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 14 3/4"
- c : Max Depth
- 2 7/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
Spruce top
Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.
Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Ibanez Undersaddle pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.
Ibanez AEQ210T preamp w/Onboard tuner
The AEQ210T preamp provides the extra punch of an onboard EQ and the convenience of an easy-to-read digital tuner.
Rosewood bridge
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
