- neck type
- AR3pc MapleSet-in (smooth heel) neck
- Maple topOkoume backMaple body
- Bound Jatoba fretboardAcrylic & Abalone block inlay
- Medium frets
- number of frets
- Gibraltar Performer bridge
- string space
- Quik Change Classic tailpiece
- neck pickup
- Super 58 (H) neck pickupPassive/Alnico
- bridge pickup
- Super 58 (H) bridge pickupPassive/Alnico
- factory tuning
- D'Addario® EXL110
- string gauge
- Plastic nut
- hardware color
- Scale :
- a : Width
- 43mm at NUT
- b : Width
- 56mm at 22F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If you have the neck Tri-sound switch in neck position, the neck humbucker is in parallel. If you have the switch in center position, the neck side of the neck humbucker is on. If you have the switch is in bridge position, the neck pickup is in series. If you have the bridge Tri-sound switch in neck position, the bridge humbucker is in parallel. If the switch is in center position, the bridge side of the bridge humbucker is on. If the switch is in bridge position, the bridge pickup is in series.
With the guitar held in the playing position, there are two knobs located near the lower edge of the body. The one close to the neck is the volume knob and the other is the tone knob. There is also a three-way pickup selector switch oriented closer to the neck relative to the knobs. There are two switches toward the lower bout of the guitar. The switch closest to the bridge is the tri-sound switch for the neck pickup, while the other is the tri-sound switch for the bridge pickup.
- Recommended Bag
- Hollow Body Construction
- 2 Tri-sound switches
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability.
The low positioned saddles promise comfortable playability.

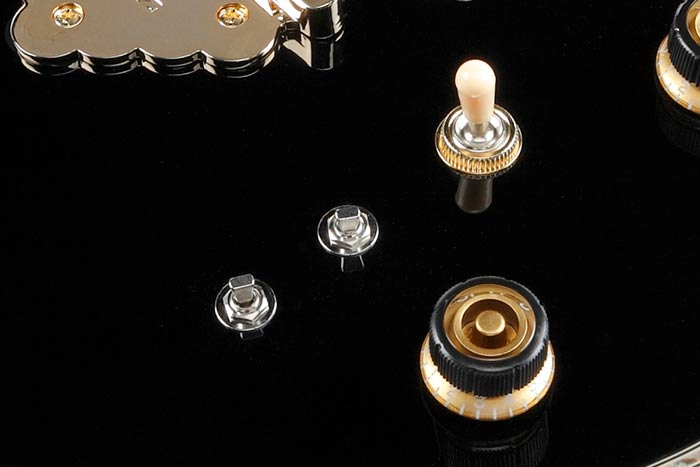

2 Tri-sound switches
By giving each humbucker 3 different sounds, Tri-Sound switches expand your guitar's versatility.

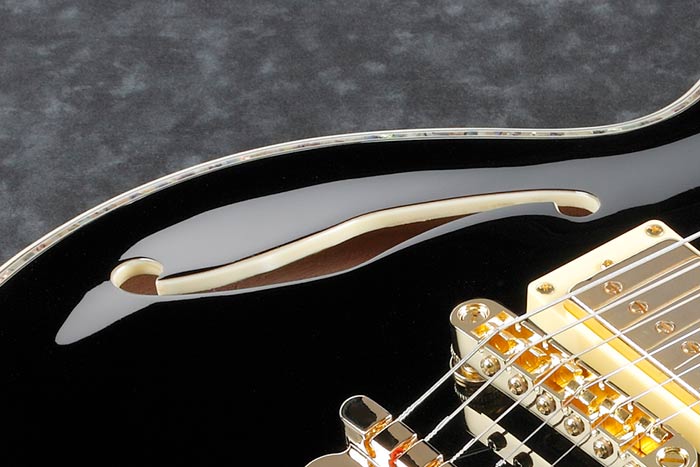

Hollow Body Construction
Quik Change Classic Tailpiece
The Quik Change Classic tailpiece enables faster and easier string changing.
Super 58 pickups
Super 58 pickups feature moderate output & vintage tone
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
AR model features smooth heel for superb playability.
