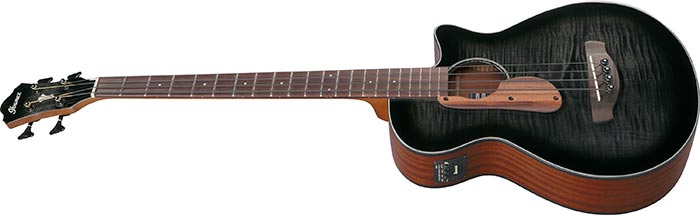

AEGB25E
- TKH : Transparent Black Sunburst High Gloss, Natural High Gloss Back and Sides
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AEG body
- top
- Flamed Maple top
- back & sides
- Sapele back & Sapele sides
- neck
- AEGB3pc Nyatoh/Maple neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood bridge
- inlay
- White dot inlay
- soundhole rosette
- Acrylic

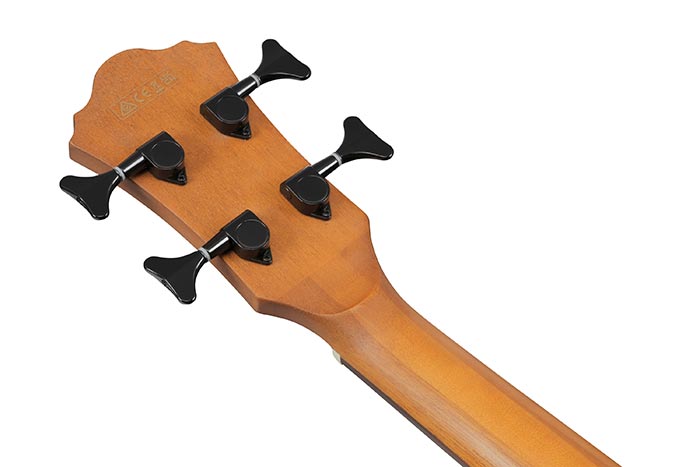

- tuning machine
- Black Die-cast tuners
- number of frets
- 21
- bridge pins
- Black with white dot
- strings
- Ibanez IABS4XC32 Carbon coated
- string gauge
- .040/.060/.075/.095
- string space
- 19mm
- factory tuning
- 1G,2D,3A,4E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ-2T preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 815.5mm/32"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22.5mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 15"
- c : Max Depth
- 3 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
- Merbau finger rest
Features

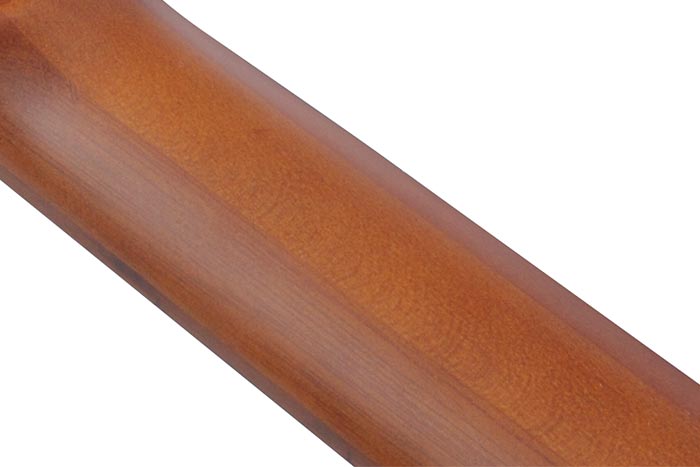

3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

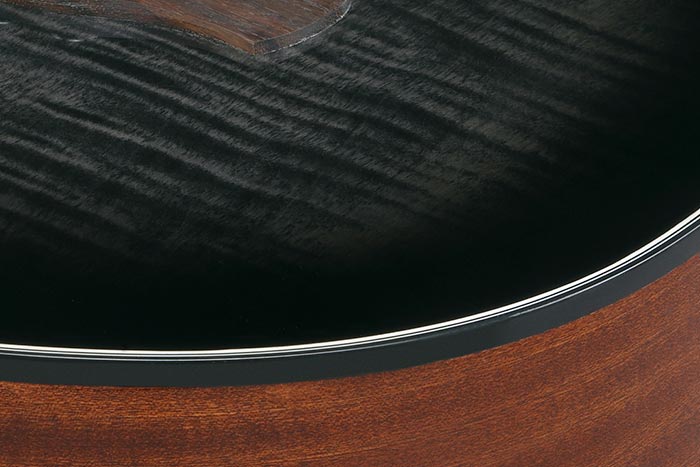

Flamed Maple top
The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.

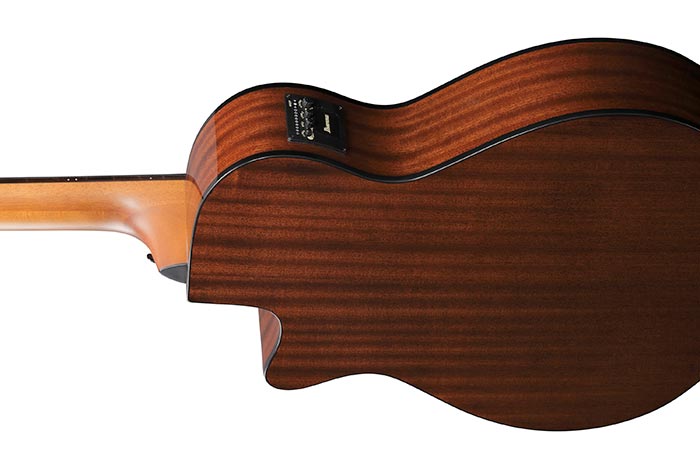

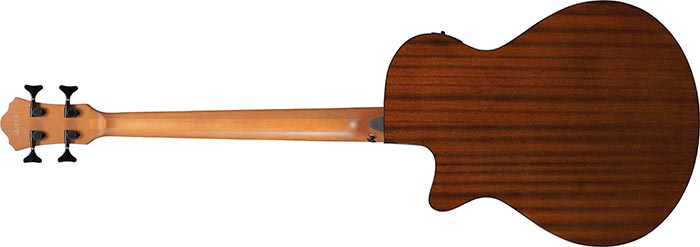

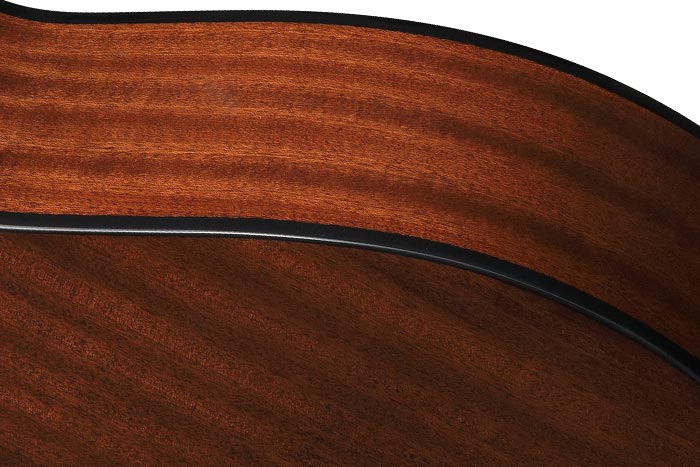

Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

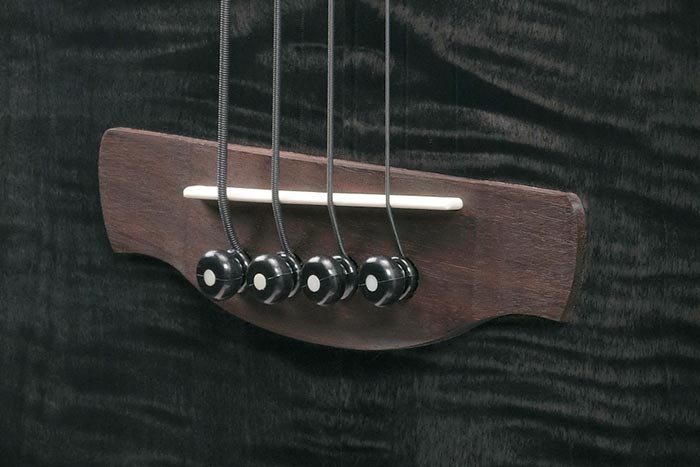

Rosewood bridge

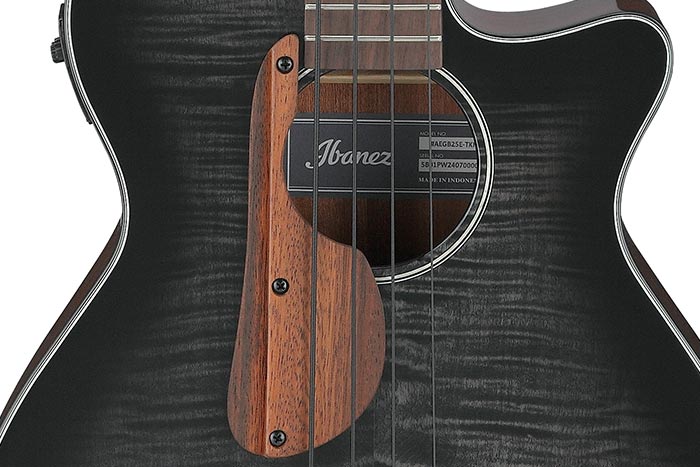

Finger Rest
This bass is outfitted with a special finger rest. The design allows players to position their thumb across a wide span of the instrument, based on what is most comfortable and appropriate for their playing style.
Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
