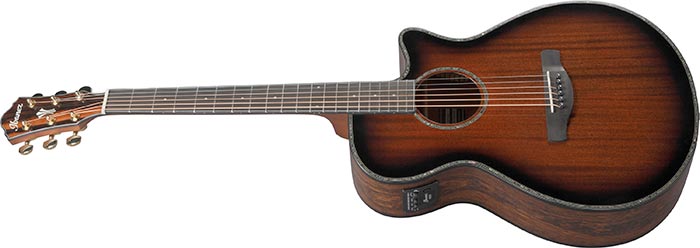

AEG74
- MHS : Mahogany Sunburst High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AEG body
- top
- Sapele top
- back & sides
- Bocote back & Bocote sides
- neck
- Comfort GripNyatoh neck
- fretboard
- Macassar Ebony fretboard
- bridge
- Indonesian Ebony bridge
- top board purfling
- Abalone purfling
- inlay
- White dot inlay
- soundhole rosette
- Abalone

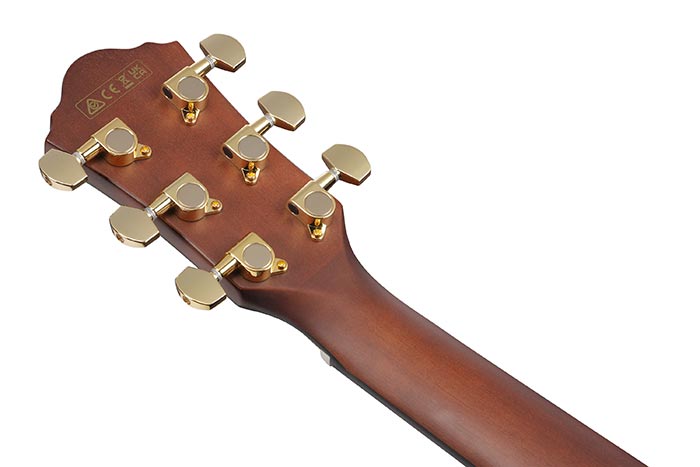

- tuning machine
- Gold Die-cast tuners (18:1 gear ratio)
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- strings
- Ibanez IACSP6C
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez AEQ-TP2 preamp w/Onboard tuner
- output jack
- Balanced XLR & 1/4" outputs
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 634mm/25"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 3/8"
- b : Width
- 15 "
- c : Max Depth
- 3 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
Features

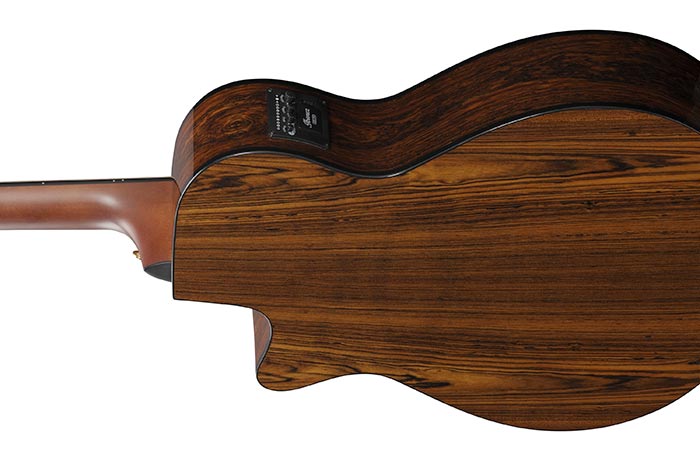

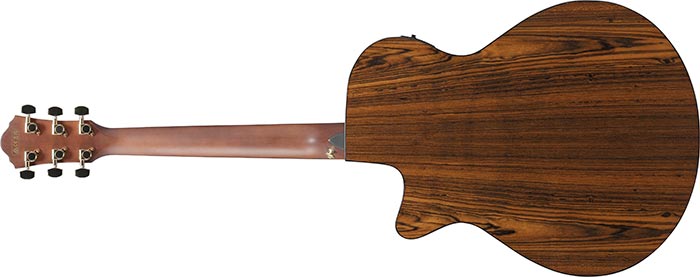

Bocote back and sides
The Bocote back and sides show a beautiful wood grain and provide a powerful and warm sound.
Spruce top
The Sapele top delivers a warm, full tone.
Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

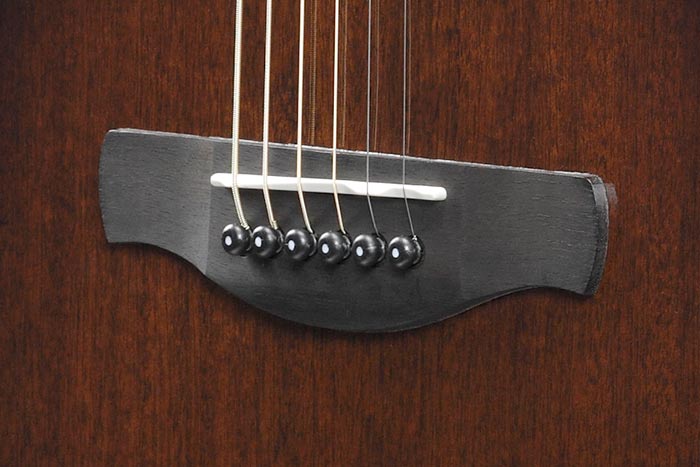

Indonesian Ebony Bridge
The Indonesian Ebony bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Comfort Grip Nyatoh neck
The Comfort Grip Nyatoh Neck contour provides superior playability.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
