AE390

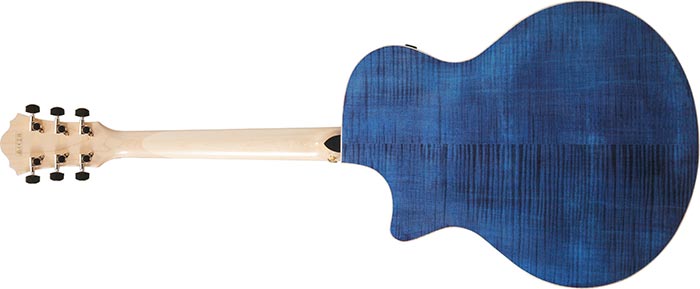

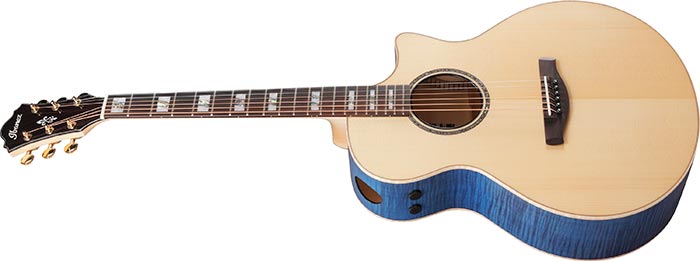

- NTA : Natural High Gloss top, Aqua Blue High Gloss Back and Sides
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing
- top
- Solid German Spruce top
- back & sides
- Flamed Maple back & Flamed Maple sides
- neck
- Comfort Grip with Rounded Fretboard EdgeMaple neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood scalloped bridge
- body binding
- Flamed Maple body binding
- top board purfling
- Wooden
- inlay
- Acrylic and Abalone block inlay
- soundhole rosette
- Abalone and Wooden rosette with Soundhole binding

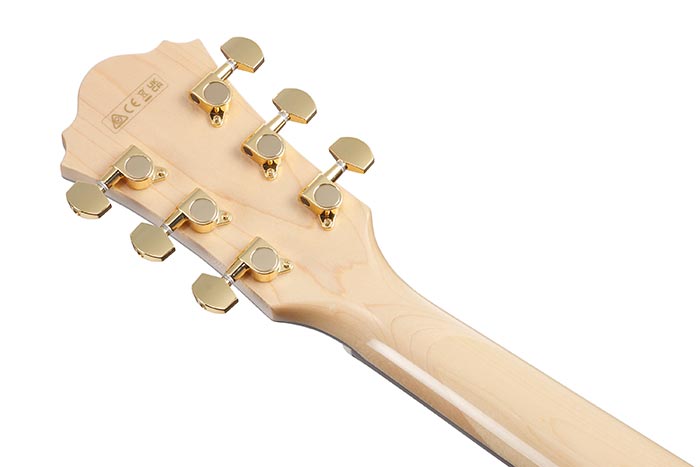

- tuning machine
- Gold Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1152
- string gauge
- .011/.015/.022/.032/.042/.052
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez Custom Electronics w/Volume and Tone Control
- output jack
- 1/4" Endpin Jack
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 44mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This preamp utilizes a two knob configuration. The knob closest to the player is the volume control for the magnetic pickup. The knob furthest from the player is the tone knob.
-
OTHER FEATURES
Features
A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.
Solid German Spruce top
Solid German Spruce top offers sensitive tones and pristine clarity.

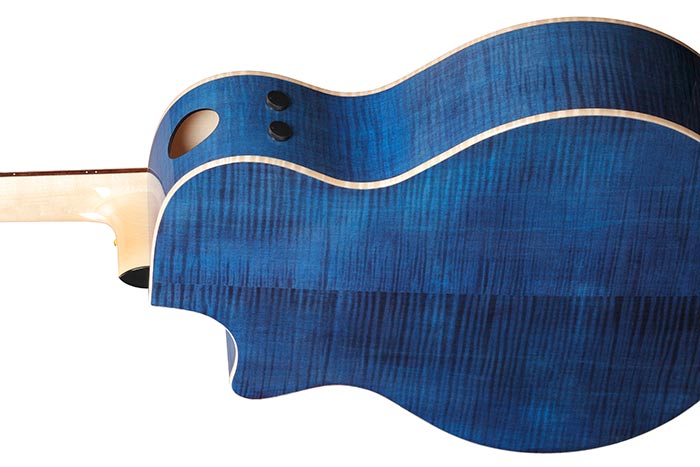

Flamed Maple back and sides
Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.
X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Ibanez Custom Electronics w/ Volume and Tone Control
The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Jumbo Frets
The jumbo frets support easy fingering.
Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Rosewood Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance and provides more flexibility in adjusting the action than does a typical bridge.
