AE3007FMH
- TBH : Tobacco Edge Burst High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing
- top
- Solid Sitka Spruce top
- back & sides
- Flamed Okoume back & Flamed Okoume sides
- neck
- Comfort Grip with Rounded Fretboard EdgeOkoume/Pau Ferro 5pc neck
- fretboard
- Rosewood fretboard
- bridge
- Rosewood scalloped bridge
- inlay
- Specially designed Abalone and Maple inlay
- soundhole rosette
- Abalone and Wooden rosette with Soundhole binding
- tuning machine
- Gold Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1253, plus .070 guage Phosphor Bronze
- string gauge
- .012/.016/.024/.032/.042/.053/.070
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- pickup
- Fishman® S-Core
- preamp
- Ibanez AEQ-SP2 preamp w/Onboard tuner
- output jack
- 1/4" Endpin Jack
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 651mm/25.6"
- a : Width
- 50mm at NUT
- b : Width
- 64mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 22.5mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
Features
A.I.R.port
Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.
Comfort Grip 5pc Okoume/Pau Ferro neck with Rounded Fretboard Edge
For exceptional playability, the neck features a comfortable Thin-C profile with rounded fingerboard edges. The Okoume/Pau Ferro 5-piece neck construction ensures enhanced durability.

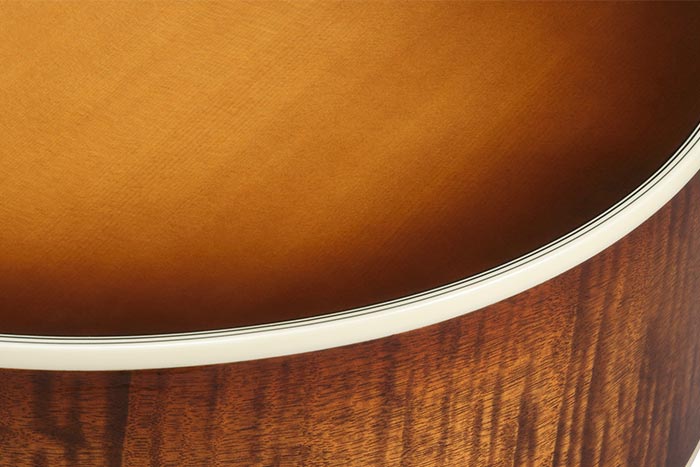

Solid Sitka Spruce top
Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.
Flamed Okoume back and sides
The attractive Flamed Okoume back and sides offer punchy and rich mid-range tones.

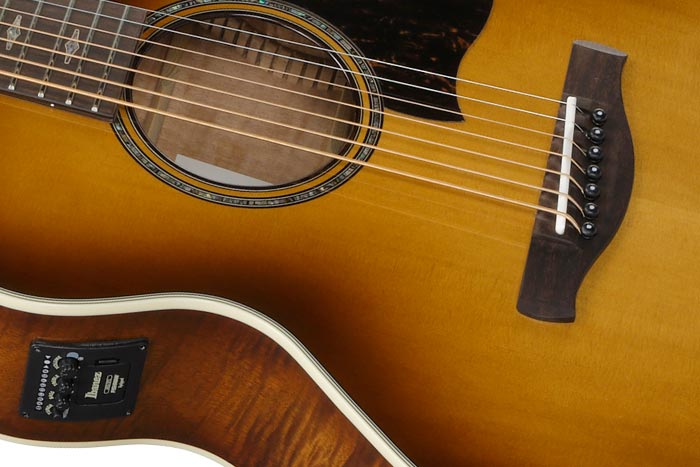

Fishman® S-Core pickup
The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.
Ibanez AEQ-SP2 preamp w/Onboard tuner
The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
Jumbo Frets
The jumbo frets support easy fingering.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Rosewood Scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance and provides more flexibility in adjusting the action than does a typical bridge.
