AE240JR
SPEC
-
SPECS
- body shape
- AE Junior body
- bracing
- Ibanez Original Scalloped X bracing / Tone Projection Back Bracing
- top
- Solid Okoume top
- back & sides
- Okoume back & Okoume sides
- neck
- AENyatoh neck
- fretboard
- Ovangkol fretboard
- bridge
- Ovangkol bridge
- inlay
- White dot inlay
- soundhole rosette
- Abalone and Maple
- tuning machine
- Chrome Open Gear tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D'Addario® XTAPB1152
- string gauge
- .011/.015/.022/.032/.042/.052
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez T-bar Undersaddle
- preamp
- Ibanez Custom Electronics
- output jack
- 1/4" Endpin Jack
- battery
- CR2032 x2
-
NECK DIMENSIONS
-
- Scale :
- 607mm/23.9"
- a : Width
- 43mm at NUT
- b : Width
- 55mm at 14F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 21mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 18 3/8"
- b : Width
- 14 3/4"
- c : Max Depth
- 4 3/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This is a photo of the Ibanez T-bar under saddle pickup, end pin with preamp, and battery box. There is a button on the battery box which allows muting of the output signal or checking the remaining battery life.
-
OTHER FEATURES
- Gig bag included
Features

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ovangkol bridge
The Ovangkol bridge transfers string vibration directly to the body, delivering a natural and warm tone.

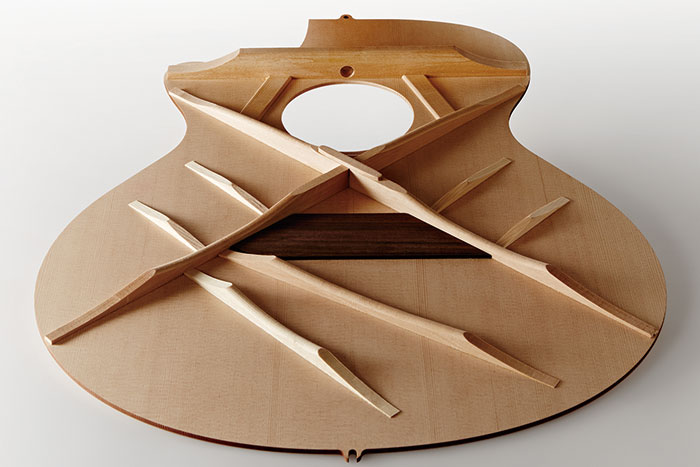

Scalloped X bracing
Scalloped X bracing on the top provides responsive and balanced tone.

Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
