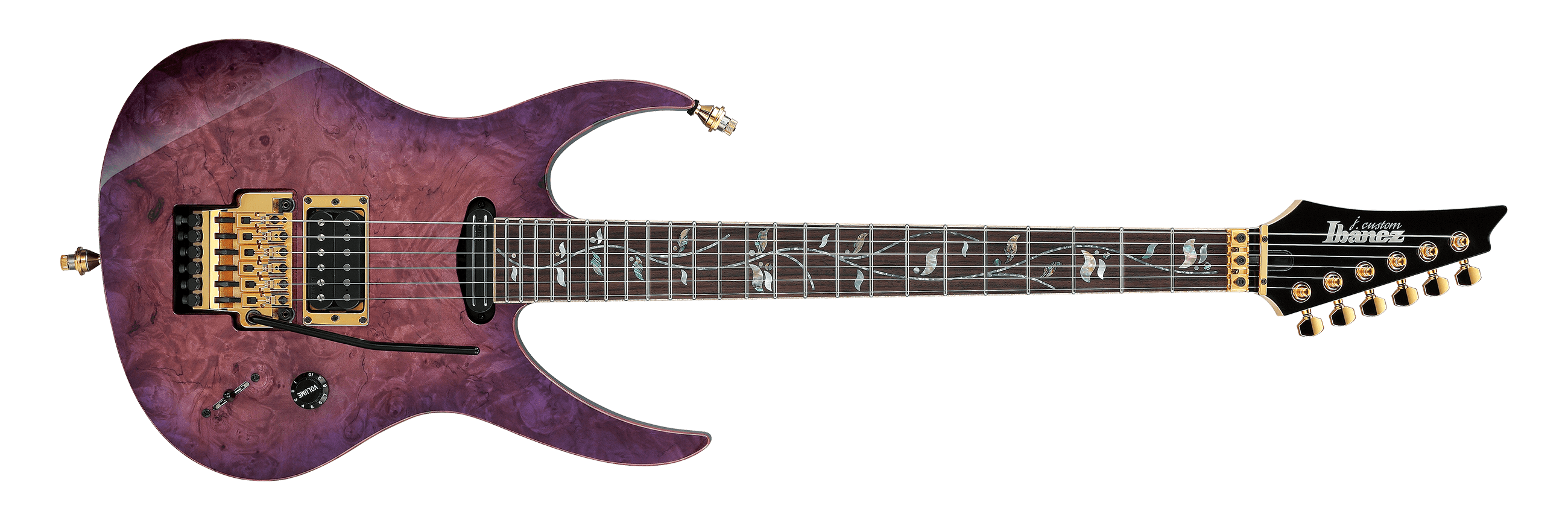

8540PIII
- AT : Ametrine
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Wenge neck
- top/back/body
- Burl Maple (4mm) topAfrican Mahogany body
- fretboard
- Bound Rosewood fretboardTree of Life inlay
- fret
- Jumbo fretsj.custom fret edge treatment
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton S™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the bridge side of the neck pickup is iselected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is avolume knob close to the edge of the body. The five-way pickup selector switch is located near the end of the body.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Luminlay side dots
- Gotoh® Strap lock pins
- Gotoh® machine heads
Features

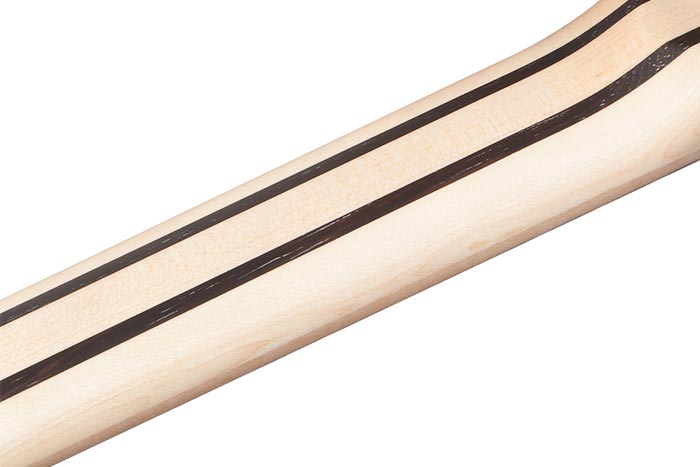

Super Wizard 5pc Maple/Wenge neck
The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.

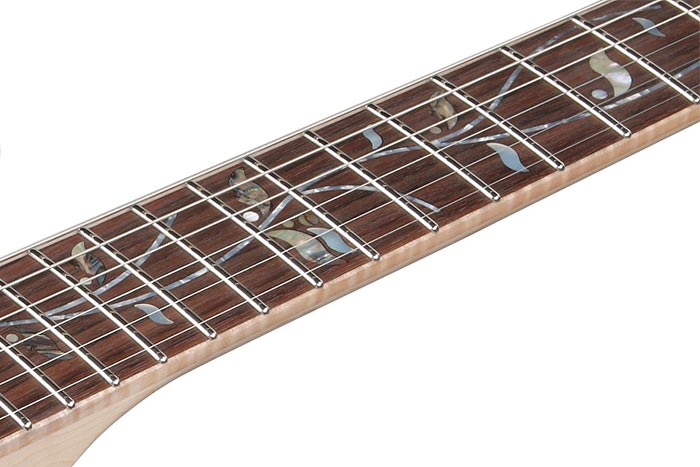

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

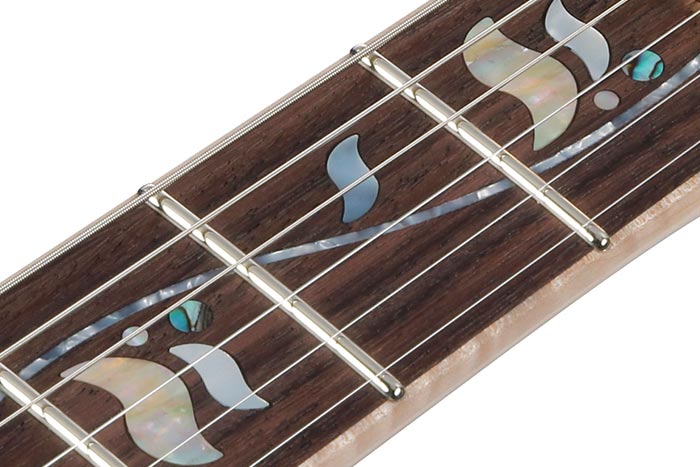

Jumbo frets with j.custom fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The j.custom fret edge treatment provides the ultimate smooth touch around every single fret.

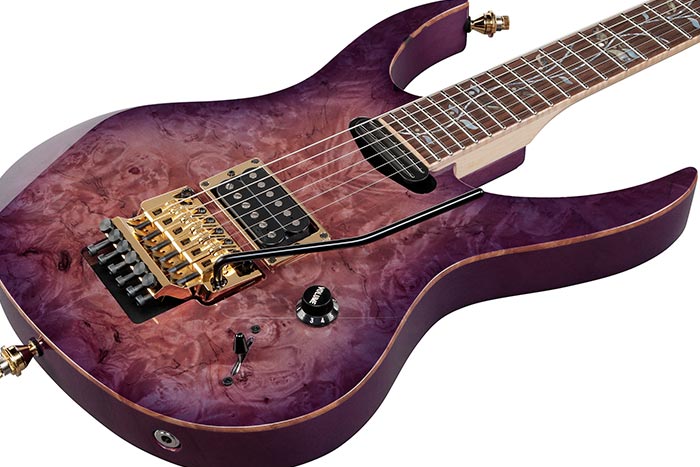

Burl Maple (4mm) top / African Mahogany body
A stunning Burl Maple top and African Mahogany body provide a warm tone with rich resonance.

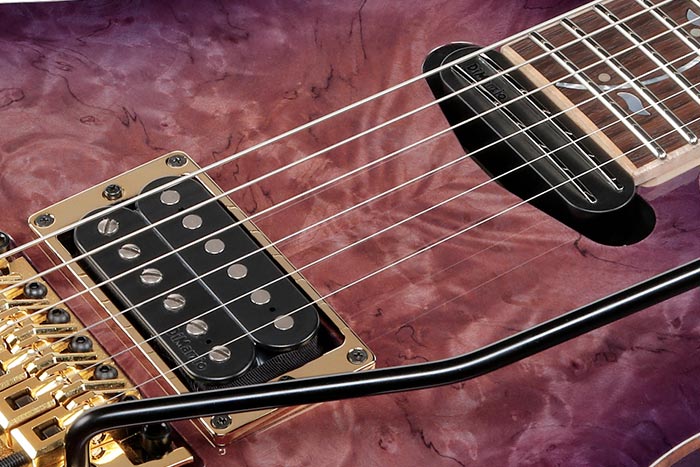

DiMarzio® Air Norton S™ / The Tone Zone® pickups
A pair of high-output DiMarzio® Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.

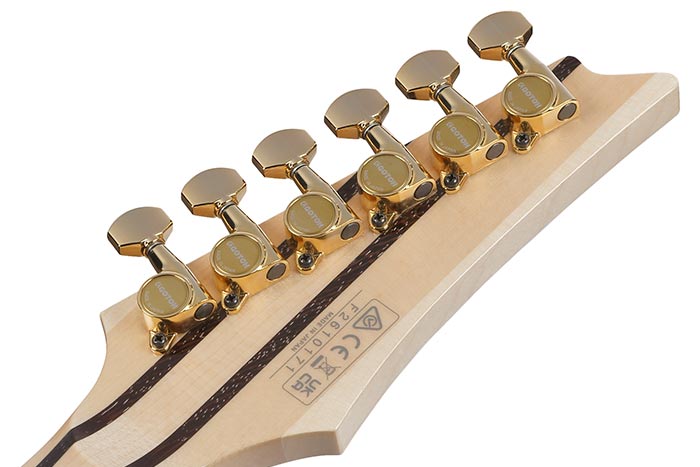

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

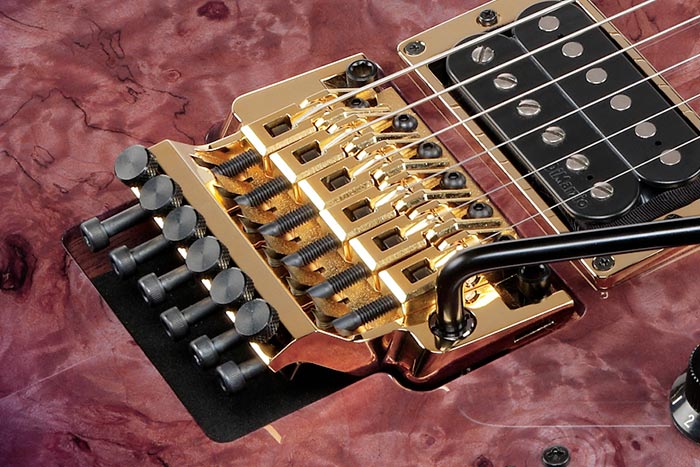

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.

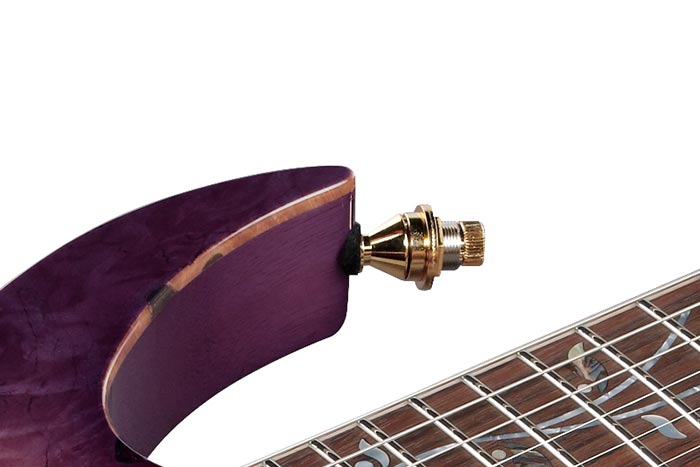

Gotoh® Strap lock pins
Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
Special j.custom Neck
j.custom Super Wizard neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
