540PIII

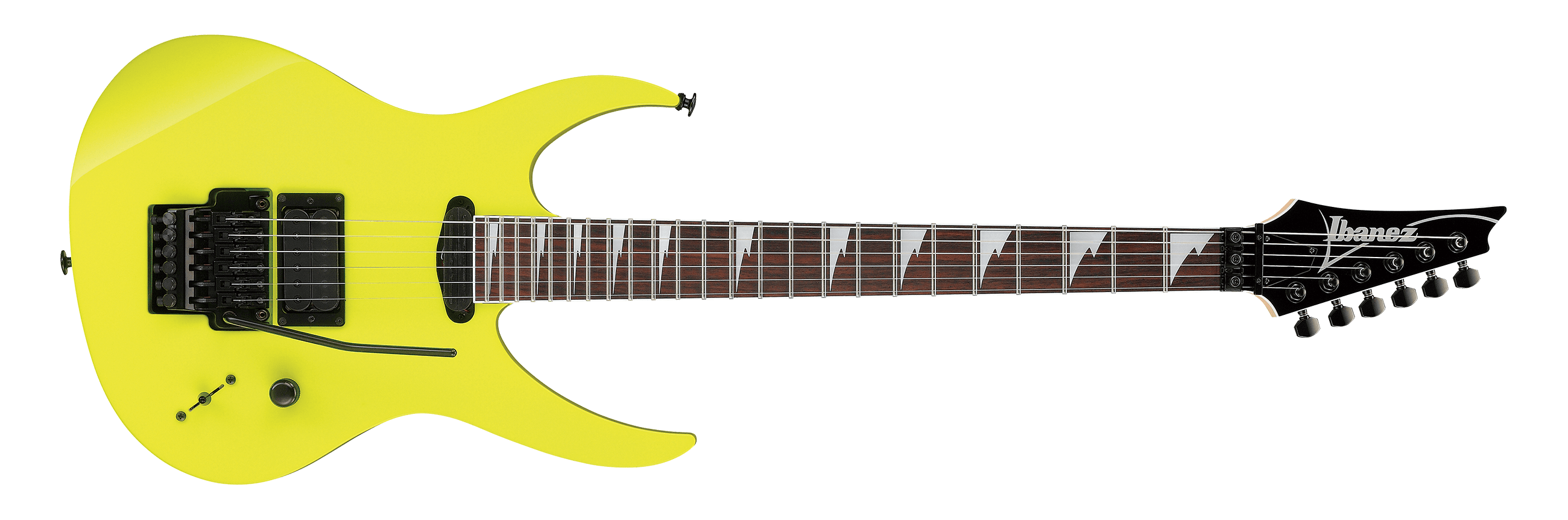

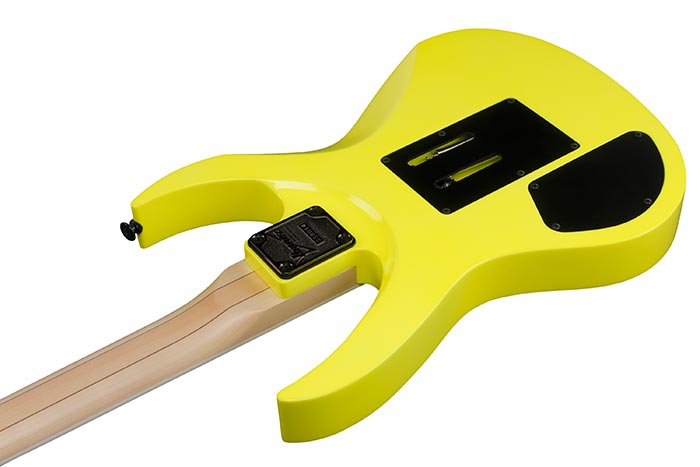

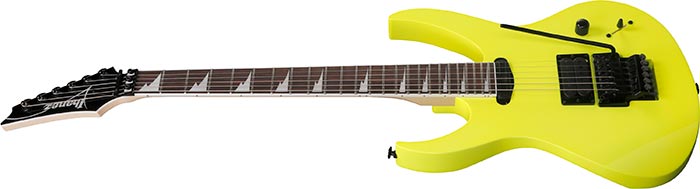

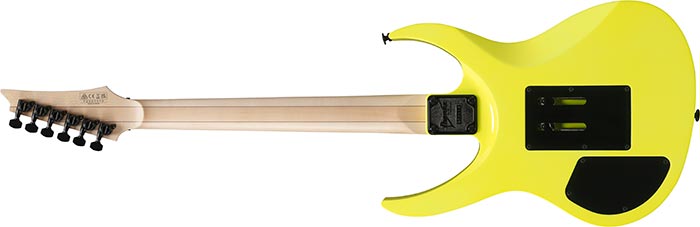

- DY : Desert Sun Yellow

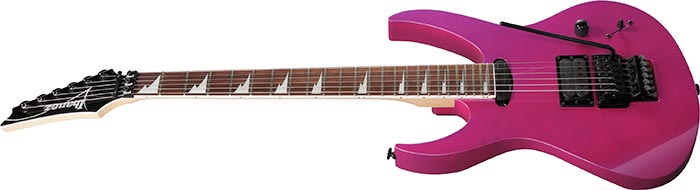

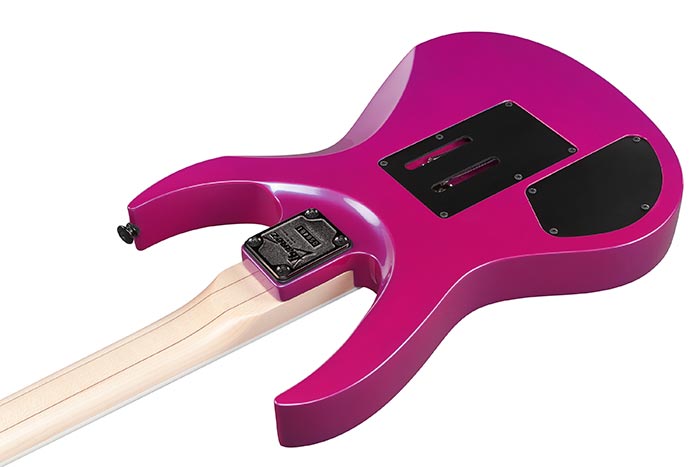

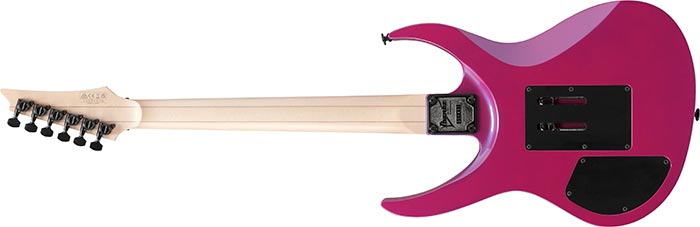

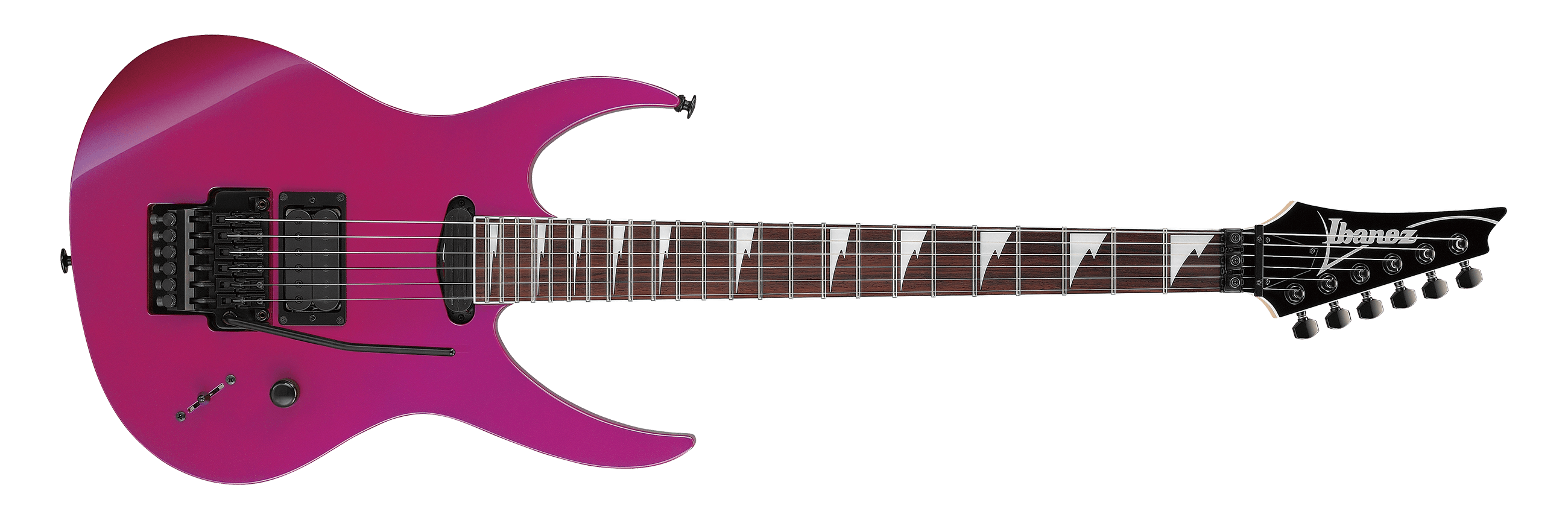

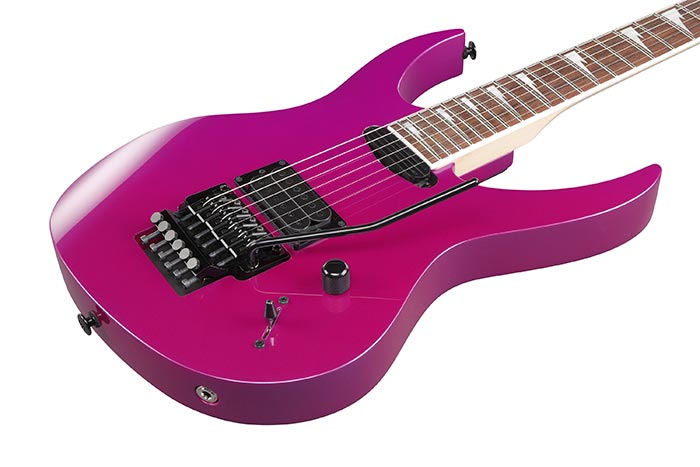

- PN : Purple Neon

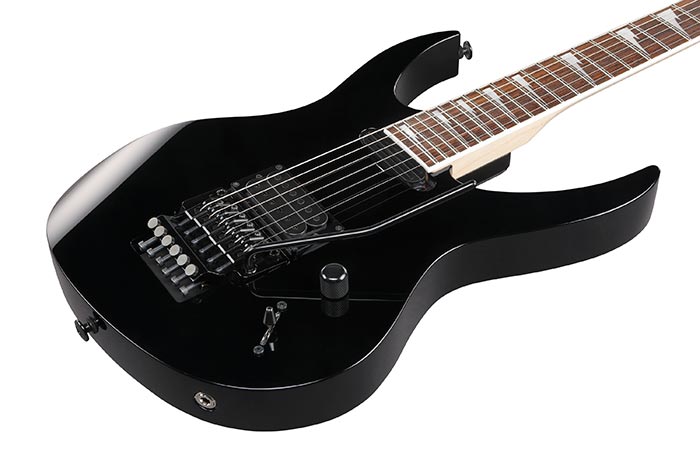

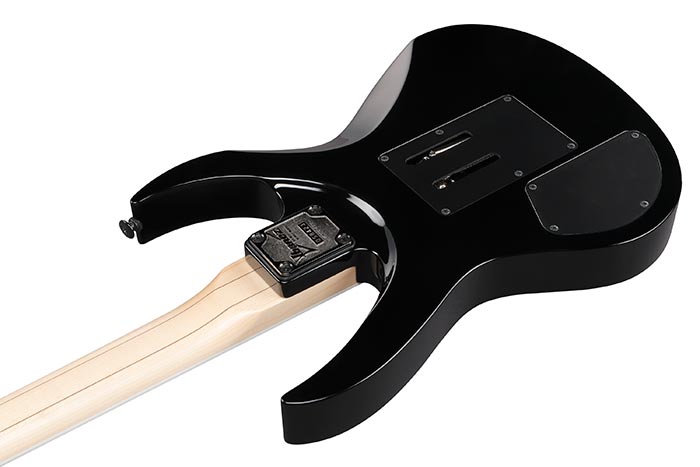

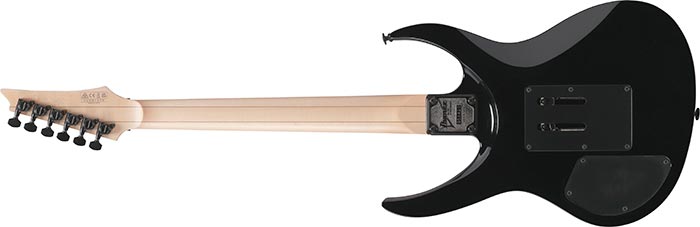

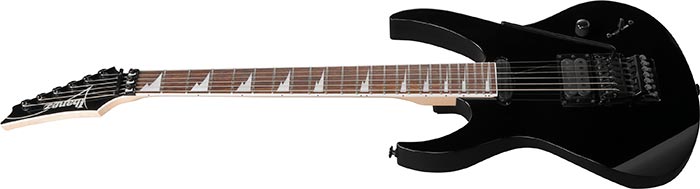

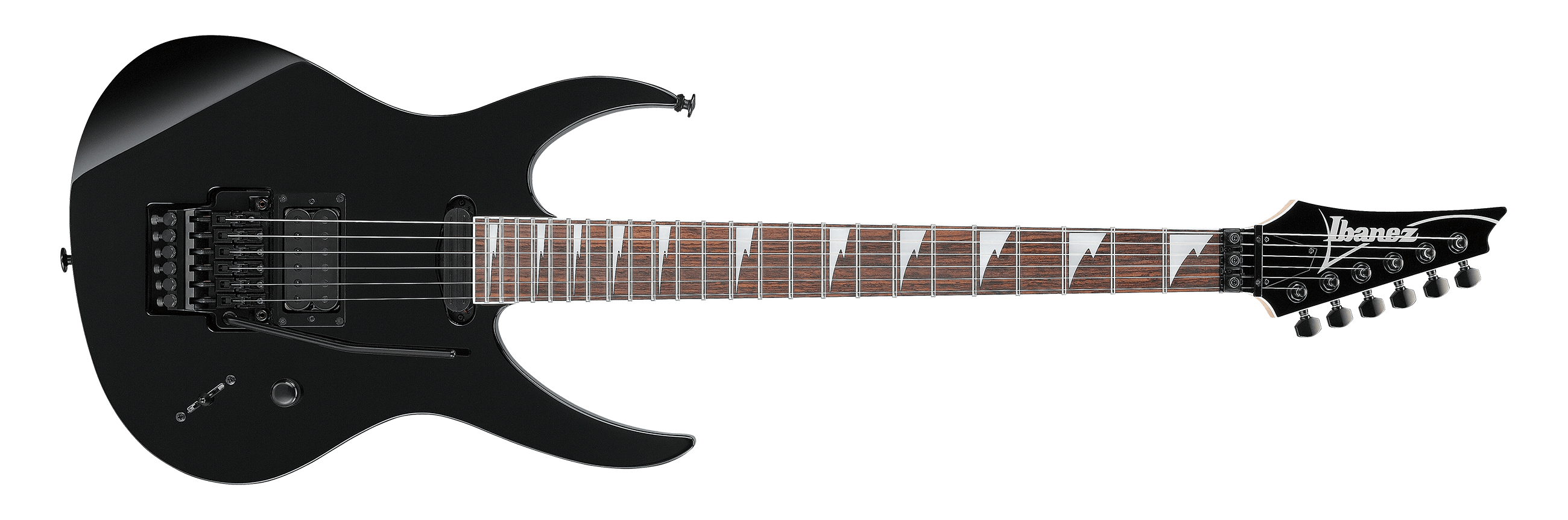

- BK : Black
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard5pc Maple/Walnut neck
- top/back/body
- Basswood body
- fretboard

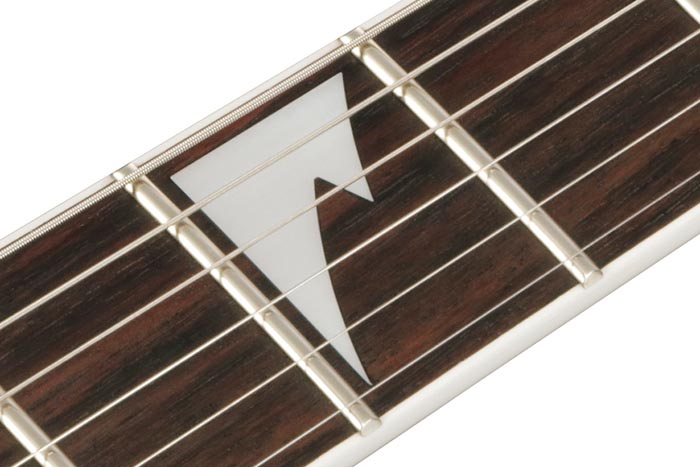

- Bound Rosewood fretboardWhite Sharktooth inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- V8 (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.
-

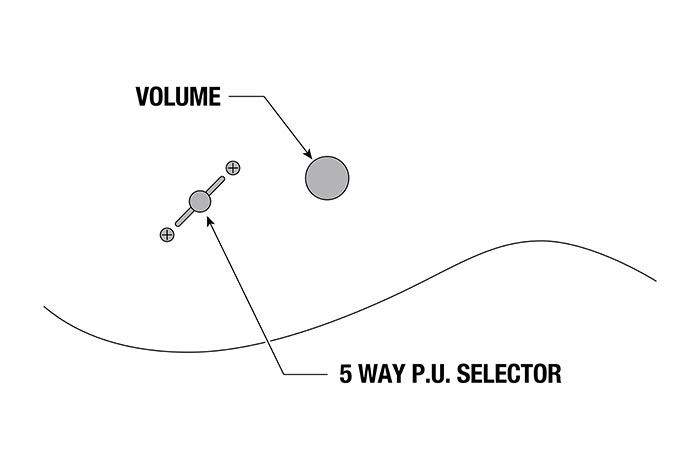

CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is avolume knob close to the edge of the body. The five-way pickup selector switch is located near the end of the body.
-
OTHER FEATURES
- Gotoh® machine heads
Features

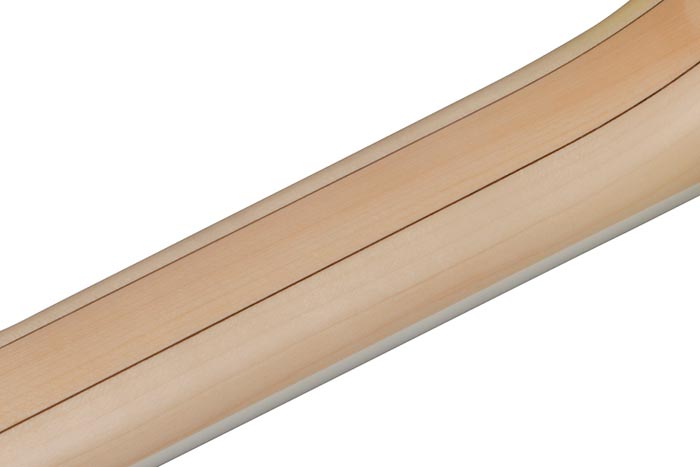

Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.

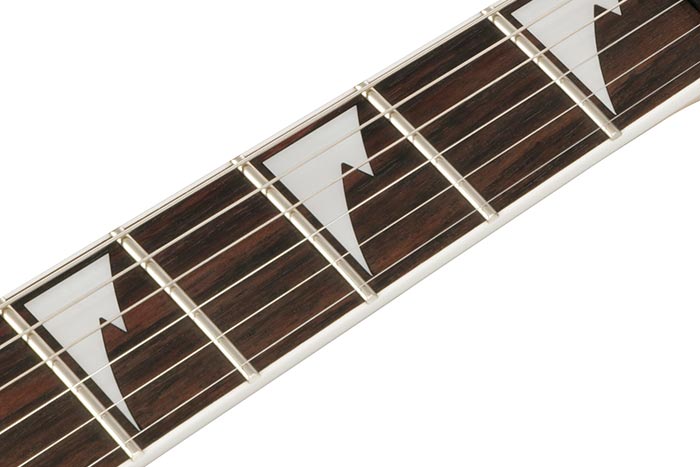

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

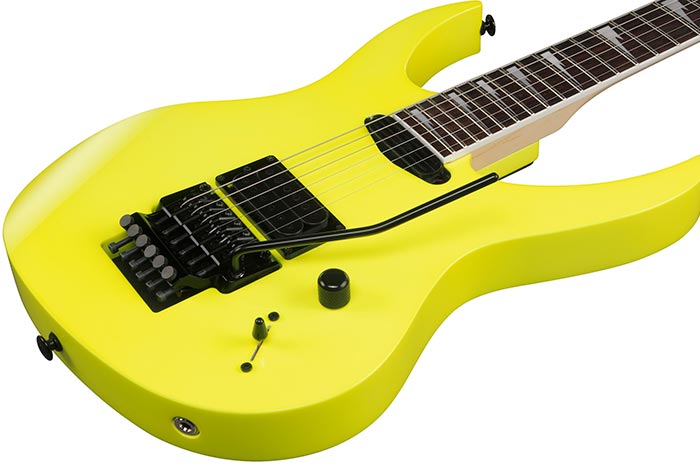

Basswood body
The Basswood body delivers a natural and flat tone.

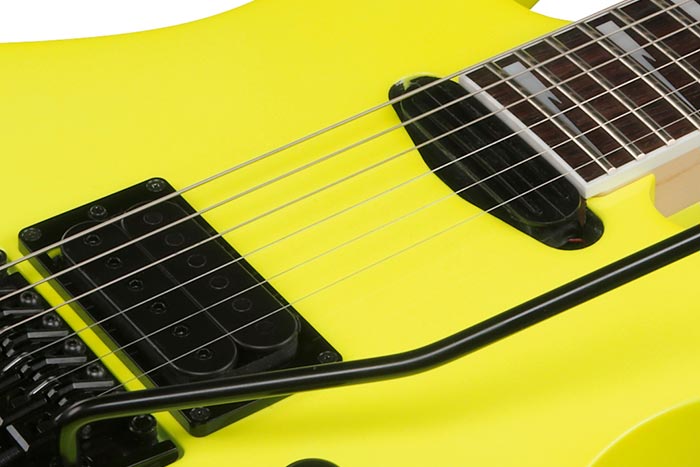

Infinity R / V8 pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

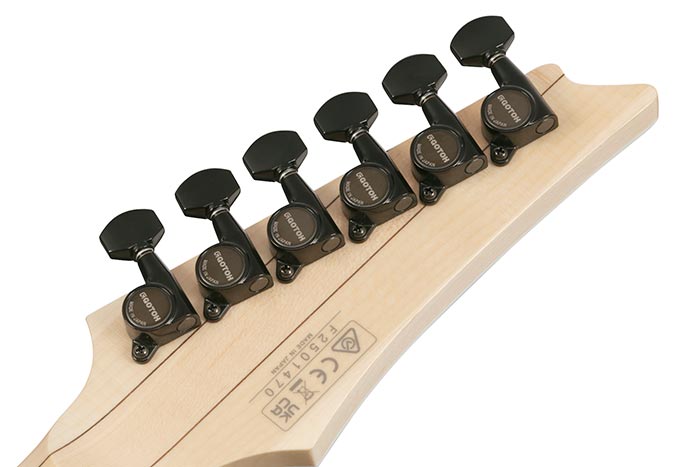

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

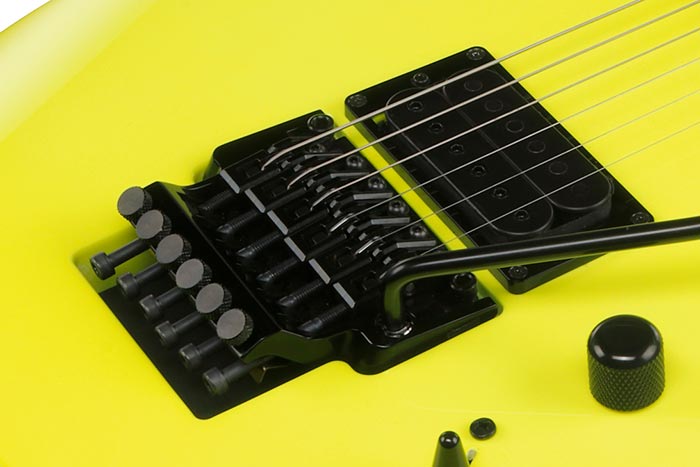

Edge tremolo
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
