RGD621AH
- MNF : Midnight Shade Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard III5pc Panga Panga/Walnut neck
- top/back/body
- Ash topOkoume body
- fretboard
- Macassar Ebony fretboardWhite Step off-set dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Fusion Edge (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® Fusion Edge (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way selector switch near to the knee cutout on the lower part of the guitar. The volume knob and coil tap switch are located toward the end of the body. When the coil tap switch is tilted towards the volume knob, the coil tap is on, and when the switch tilts away from the volume knob, the coil tap is off.
-
OTHER FEATURES
Features
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Ash top / Okoume body
The Ash top imbues this bass with an exotic appearance and the Okoume body delivers a rich mid-low end.
Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

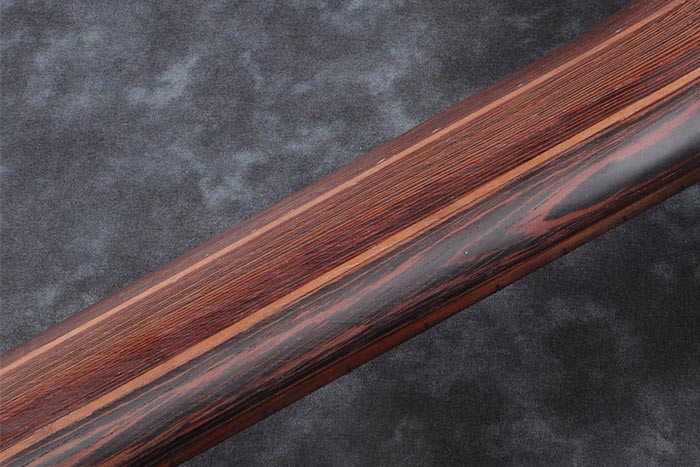

Wizard III 5pc Panga Panga/Walnut neck
The Super-thin and ultra-playable Wizard III 5-piece Panga Panga/Walnut neck substantially increases sustain.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
DiMarzio® Fusion Edge Pickups
Through close collaboration between Ibanez and DiMarzio® Fusion Edge pickups have been engineered to produce a powerful, distinctive tone with a crisp, cutting high end, and a tight, compressed bottom end, minus any muddy mid-range.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
