RGD61ALET
- MGM : Metallic Gray Matte
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard III5pc Panga Panga/Walnut neck
- top/back/body
- Maple topOkoume body
- fretboard
- Macassar Ebony fretboardWhite Step off-set dot inlay
- fret
- Jumbo Sub Zero treated frets
- number of frets
- 24
- bridge
- Evertune® bridge
- string space
- 10.3mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in the neck position, the coil tap is on. When the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickup s are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, neck side of the neck pickup is selected. When the switch is in center position, the neck side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two switches and a knob along the lower edge of the body. The switch closest to the knee cutout of the guitar is the three-way pickup selector switch. Towards the end of the body is the volume knob and coil tap switch. The volume knob also functions as a Fishman Fluence voicing switch. When the knob is down, the pickups are in voicing 1, and when the knob is up, the pickups are in voicing 2. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
Features
Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

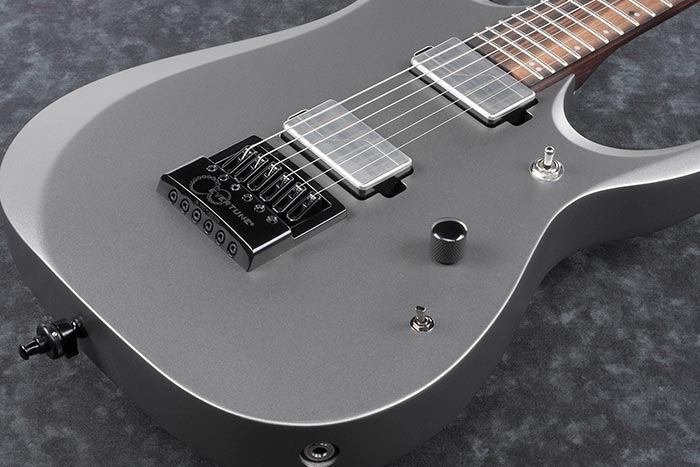

Maple top / Okoume body
The Maple top sonically enriches the response while picking. The Okoume body provides a bright and solid sound.
Wizard III 5pc Panga Panga/Walnut neck
The Super-thin and ultra-playable Wizard III 5-piece Panga Panga/Walnut neck substantially increases sustain.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Jumbo Sub Zero treated frets
Sub Zero treated frets can stand up against the hardest riffing and string-bending.
Luminescent side dot inlays
The luminescent side dot inlays make it easy for players to perform on dark stages, matching the dazzling luminescent Ibanez headstock logo.
Schaller S-Lock strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
