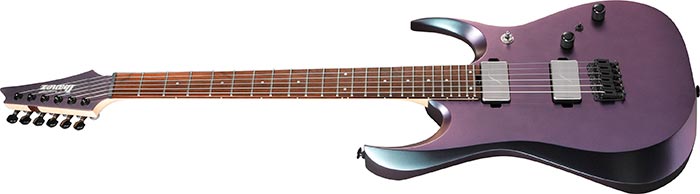

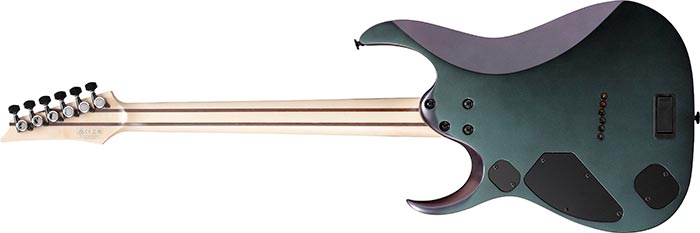

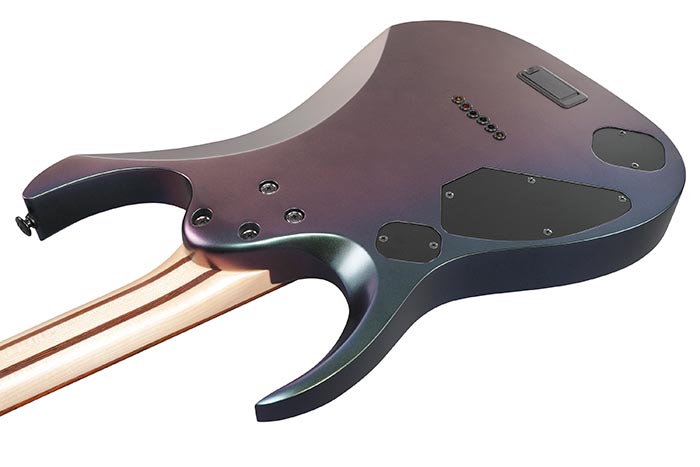

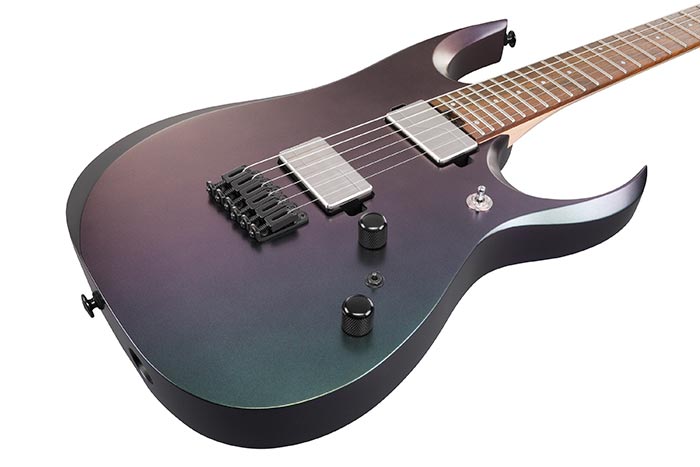

RGD3121
- PRF : Polar Lights Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard HP5pc Maple/Wenge neck
- top/back/body
- Basswood body
- fretboard
- Macassar Ebony fretboardWhite dot inlay
- fret
- Jumbo fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Mono-rail bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® BLACK TUSQ XL® nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 673mm/26.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. Note: Switching the Fishaman® Fluence Voicing switch changes the tone but does not change the pickup position.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector switch near the knee cutout on the lower part of the body. There is also a volume knob, fishman fluence voicing switch and tone knob toward the end of the body. When the fishman fluence voicing switch is towards the tone knob, it is in voice 1. When the switch is towards the volume knob, it is in voice 2.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Gotoh® MG-T locking machine heads
- Fishman® Fluence™ Voicing switch
- Luminlay side dots
- Hardshell case included
Features
Wizard HP 5pc Maple/Wenge neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
Basswood body
The Basswood body delivers a natural and flat tone.
Fishman® Fluence™ Voicing switch
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
26.5 inch scale
Its extra long 26.5" scale and ability to accurately intonate heavier string gauges, make it the perfect beast for down-tuned metal.
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
