RGA622XH
SPEC
-
SPECS
- neck type
- Wizard HP5pc Maple/Walnut neck
- top/back/body
- African Mahogany body
- fretboard
- Bound Macassar Ebony fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo frets
- number of frets
- 27
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton S™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, the coil tap is on, and when the coil tap switch is in the bridge position, the coil tap is off. When coil tap is off and the pickup selector switch is in neck position, the neck pickup is selected. When the pickup selector switch is in center position, the neck pickup and the bridge pickup are selected. When the pickup selector switch is in bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in neck position, the bridge side of the neck pickup is selected. When the pickup selector switch is in center position, the bridge side of the neck pickup and the bridge pickup are selected. When the pickup selector switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cut out is a three-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in the neck position, the coil tap is on. When the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
- Recommended Bag
- IGB724-BK
- Gotoh® machine heads
- Coil-tap switch
- Luminlay side dots
- Hardshell case included
Features

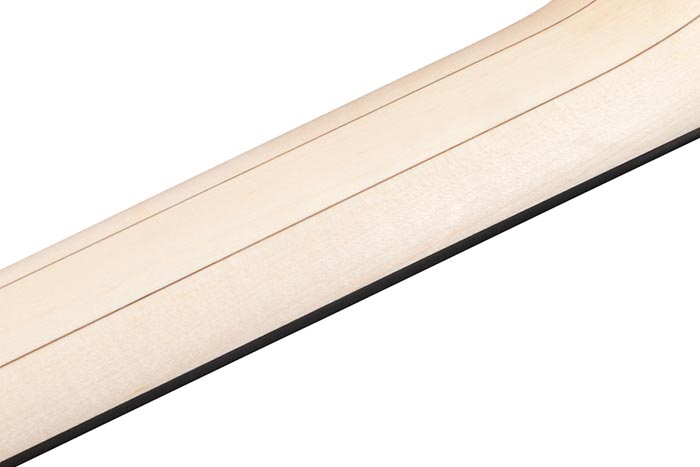

Wizard HP 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

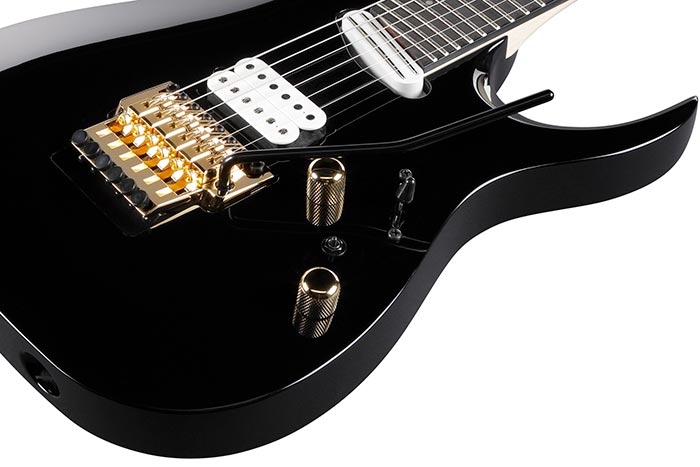

African Mahogany body
The African Mahogany body delivers a rich mid-low end.

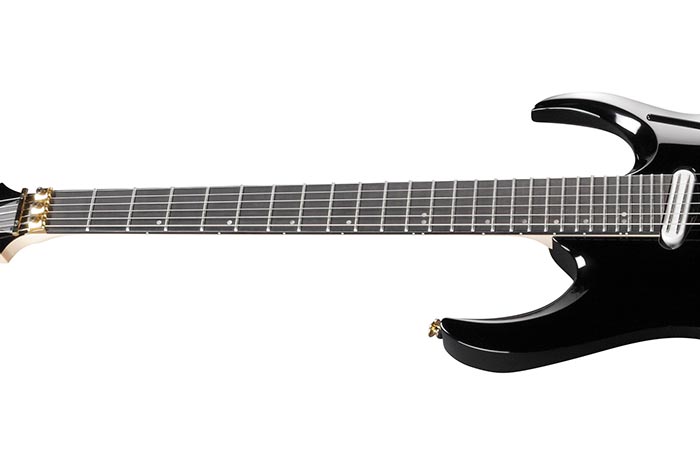

27 frets
This guitar features 27 frets which are designed for lead players and shredders who make their home in the higher octaves.

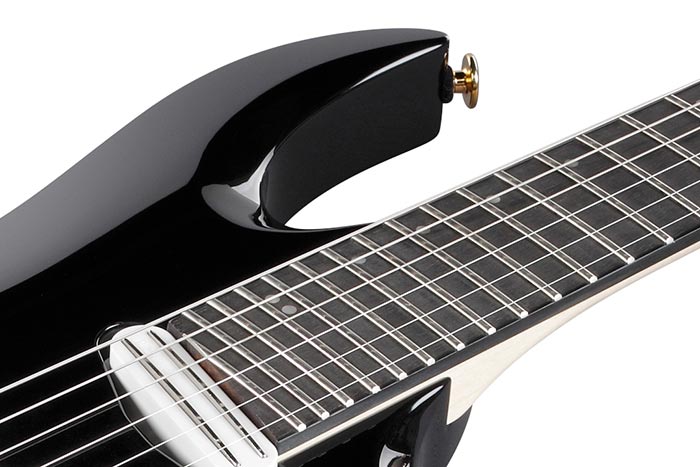

Deep and beveled lower horn scoop
It allows better and multidirectional high fret access.

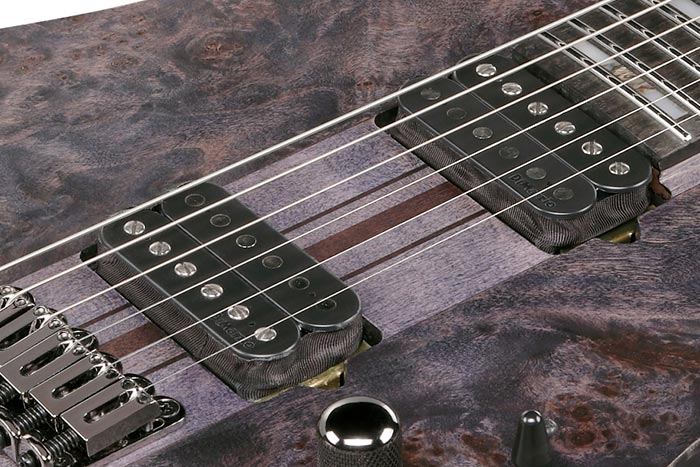

DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio® Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Lo-Pro Edge tremolo bridge
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gotoh® machine heads
Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.
