RGA42FML
SPEC
-
SPECS
- neck type
- Wizard IIIMaple neck
- top/back/body
- Flamed Maple topMeranti body
- fretboard
- Jatoba fretboardOff-set white dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- F106 bridge
- string space
- 10.5mm
- neck pickup
- Quantum (H) neck pickupPassive/Ceramic
- bridge pickup
- Quantum (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features

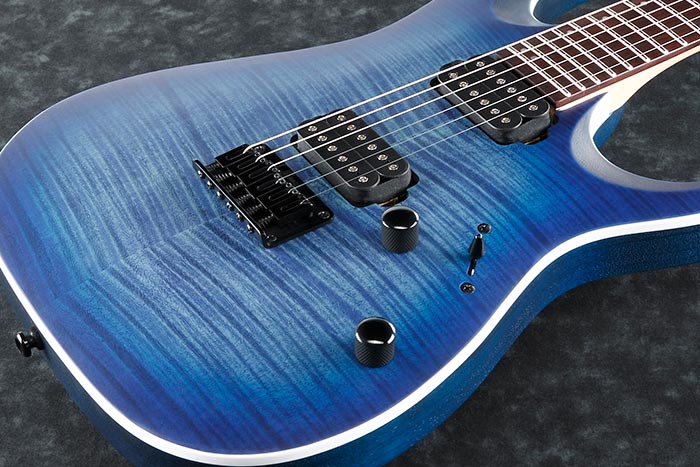

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.
Quantum pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.
