AZ47P1QM-BIB
  • BIB : Black Ice Burst
  • COLOR VARIATION:
SHARE:
AZ

SPEC

  • SPECS

    • neck type
    • AZ Oval CRoasted Maple neck
    • top/back/body
    • Quilted Maple topAmerican Basswood body
    • fretboard
    • Ebony fretboardMother of Pearl dot inlay
    • fret
    • Jumbo Stainless Steel frets
    • number of frets
    • 24
    • bridge
    • Gotoh® T1502 bridge
    • string space
    • 10.5mm
    • neck pickup
    • DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
    • middle pickup
    • DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL110
    • string gauge
    • .010/.013/.017/.026/.036/.046
    • nut
    • Graph Tech® nut
    • hardware color
    • Gold
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 42mm at NUT
      • b : Width
      • 57mm at 24F
      • c : Thickness
      • 20.5mm at 1F
      • d : Thickness
      • 22.5mm at 12F
      • Radius :
      • 305mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    AZ47P1QM's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    AZ47P1QM's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gig bag included
    • Gotoh® MG-T locking machine heads
    • Luminescent side dot inlay

Features

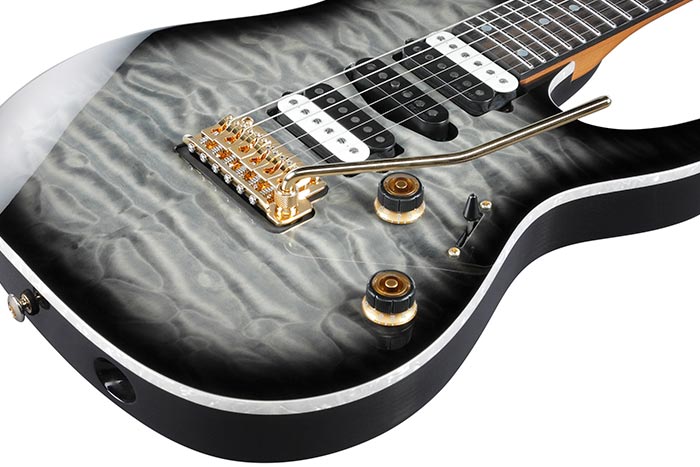

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony Fretboard

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Gotoh MG-T locking machine heads

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

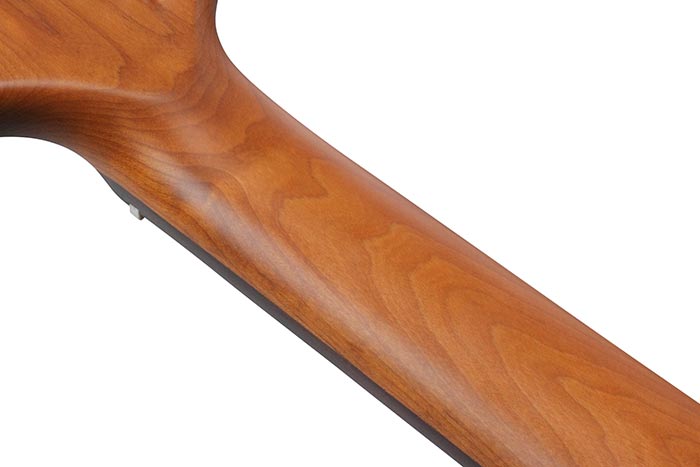

Oval C Roasted Maple neck

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

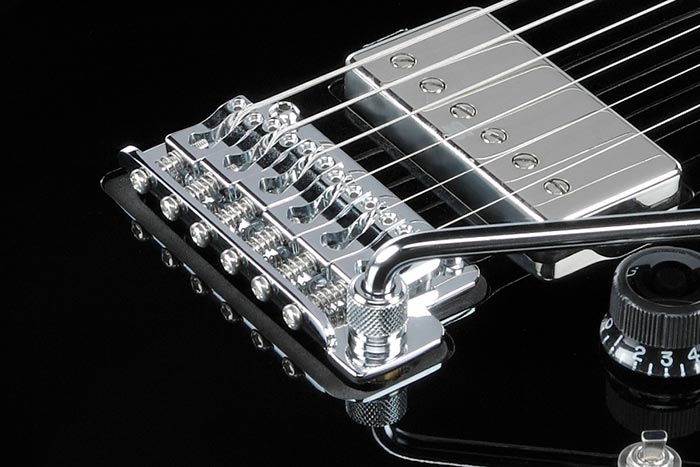

Gotoh T1502 tremolo bridge

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.
