AE275BT
- LGS : Natural Low Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- AE body
- bracing
- X-M Bracing
- top
- Solid Sitka Spruce top
- back & sides
- Okoume back & Okoume sides
- neck
- Comfort Grip with Rounded Fretboard EdgeNyatoh neck
- fretboard
- Pau Ferro fretboard
- bridge
- Pau Ferro scalloped bridge
- inlay
- Specially designed Wooden Vine inlay
- soundhole rosette
- Abalone and Wooden
- tuning machine
- Chrome Die-cast tuners (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ebony
- strings
- D'Addario® XTAPB1670
- string gauge
- .016/.022/.029/.048/.060/.070
- string space
- 11mm
- factory tuning
- 1B,2F#,3D,4A,5E,6B
- pickup
- Ibanez AP11 Magnetic
- preamp
- Ibanez Custom Electronics w/ Volume and Tone Control
- output jack
- 1/4" Endpin Jack
-
NECK DIMENSIONS
-
- Scale :
- 685.7mm/27"
- a : Width
- 45mm at NUT
- b : Width
- 56mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8"
- b : Width
- 16 1/4"
- c : Max Depth
- 4 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This preamp utilizes a two knob configuration. The knob closest to the player is the volume control for the magnetic pickup. The knob furthest from the player is the tone knob.
-
OTHER FEATURES
Features
Nyatoh neck
The Nyatoh neck provides a rich mid-low end.
AE body shape
Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.
Ibanez Custom Electronics w/ Volume and Tone Control
The guitar also features on-board treble and bass controls for contouring the tone, making the AE suitable for variety of applications for modern players.
Comfort Grip w/Rounded Fingerboard Edge
In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.

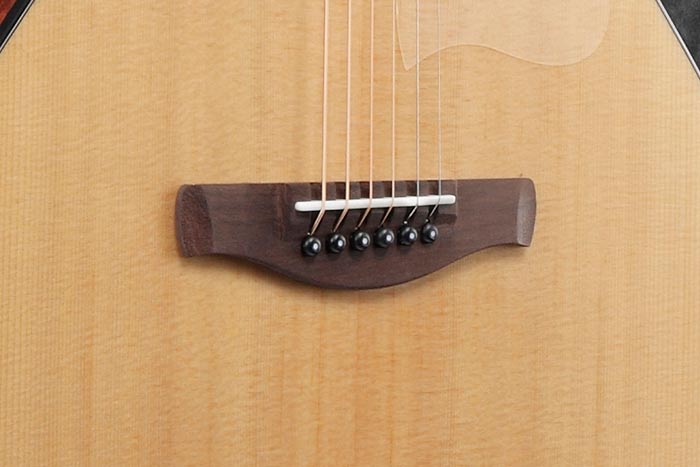

Pau Ferro scalloped bridge
The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.
Pau Ferro fretboard
Pau Ferro produces a well-balanced tonal character from low to high end.
Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.
