BKF : Black Flat

COLOR VARIATION：

COLOR VARIATION

SPEC

SPECS
- neck type

  Wizard II-75pc Maple/WalnutNeck-through
- top/back/body

  Okoume body
- fretboard

  Ebony fretboard
- fret

  Jumbo frets
- number of frets

  24
- bridge

  Edge-Zero II-7 bridge
- string space

  10.8mm
- neck pickup

  DiMarzio® D Activator 7™ (H) neck pickupPassive/Ceramic
- bridge pickup

  DiMarzio® D Activator 7™ (H) bridge pickupPassive/Ceramic
- factory tuning

  1D,2A,3F,4C,5G,6D,7A
- strings

  D'Addario® XL-140+ .064
- string gauge

  .010/.013/.017/.030/.042/.052/.064
- nut

  Locking nut
- hardware color

  Black
NECK DIMENSIONS
- Scale :

  648mm/25.5"
- a : Width

  48mm at NUT
- b : Width

  68mm at 24F
- c : Thickness

  19mm at 1F
- d : Thickness

  21mm at 12F
- Radius :

  400mmR
DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there are a switch and two knobs along the lower edge of the body. From the end of the body towards the neck they are; the three-way pickup selector switch, tone knob, and volume knob.
OTHER FEATURES

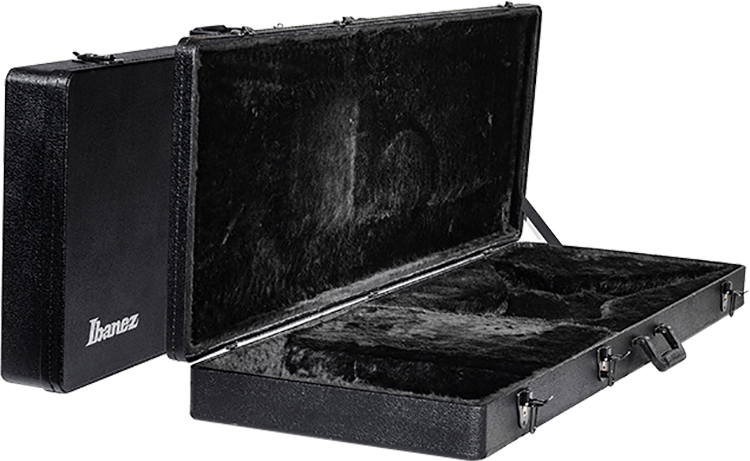

- Recommended Case

  XP100C
- Gig bag included
- Gotoh® machine heads
- Luminescent side dot inlay
